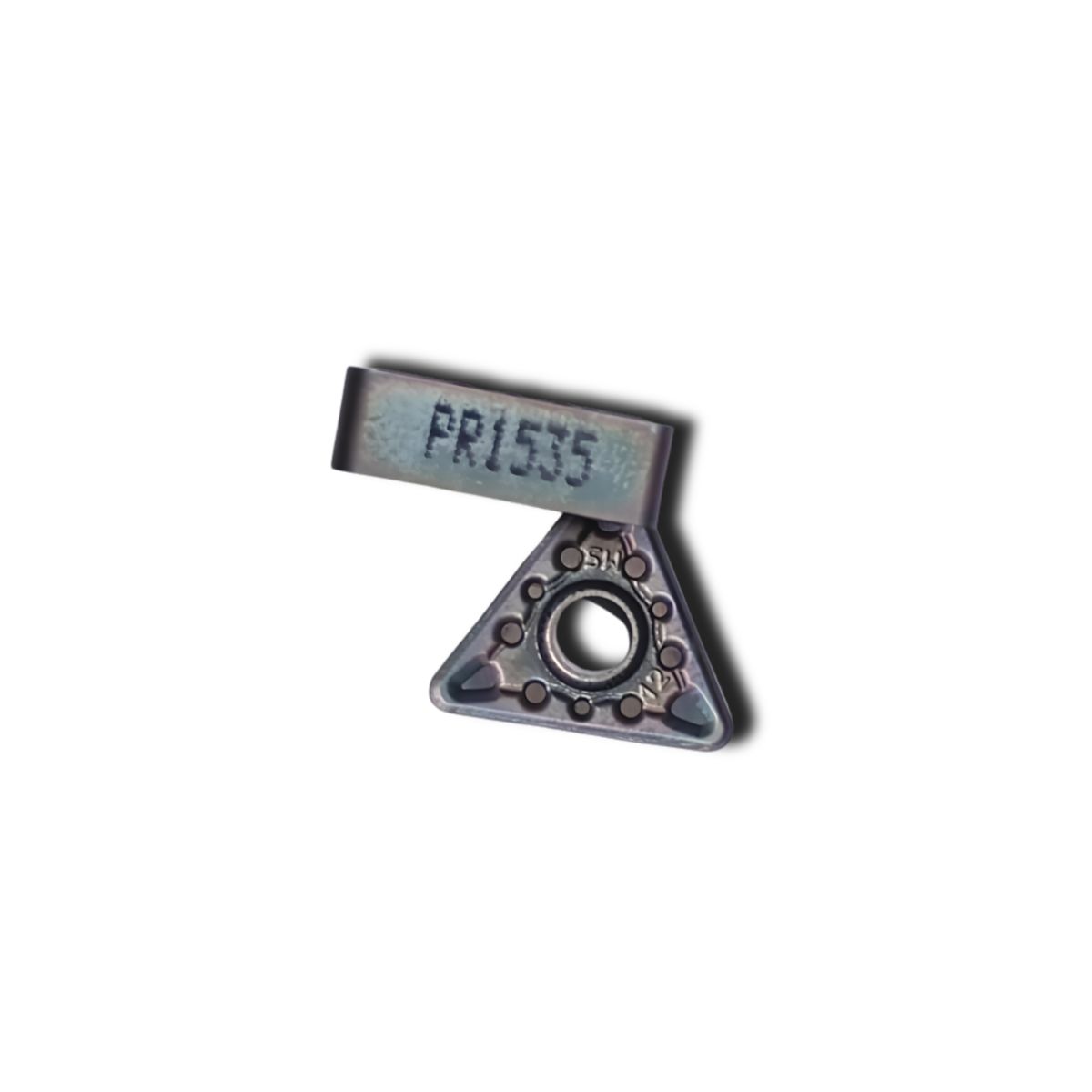

The TNMG-160412 series by Kyocera is engineered to withstand severe stress during tough industrial turning applications.
The standard "T" prefix identifies its 60-degree triangular layout, balancing tool reach with strong edge support.
Featuring a zero-degree negative clearance angle ("N"), it delivers high core thickness to prevent sudden edge chipping.
The "16" value indicates a large 16.5 mm nominal cutting edge length built to sustain deep depths of cut.
Its "04" thickness profile gives it the physical structure needed to endure continuous high-torque machining forces.
The large 1.2 mm corner radius ("12") creates an exceptionally durable tip optimized for roughing cuts.
The insert's base substrate is layered with Kyocera's proprietary PR1535 MEGACOAT NANO physical vapor deposition coating.
This nano-thin ceramic barrier achieves a surface hardness of 35 GPa to combat hard scaling and abrasive wear.
It withstands oxidation at extreme temperatures up to 1,150°C, directing heat back into the metal chip instead of the tool.
This thermal protection dramatically reduces edge wear when cutting gummy, high-friction materials like stainless steel.
A molded top-face chipbreaker compresses and shears stringy metal chips into small, easily clearable segments.
By clearing chips efficiently, the insert prevents surface scratching and lowers the structural load on the lathe spindle.
It excels at machining through uneven scale and heavy, interrupted cuts without fracturing the carbide tip.
CNC operators rely on this tooling configuration to dramatically decrease cycle times while maintaining process reliability.
Ultimately, it represents a high-productivity choice across the global aerospace, marine, and pump manufacturing sectors.
