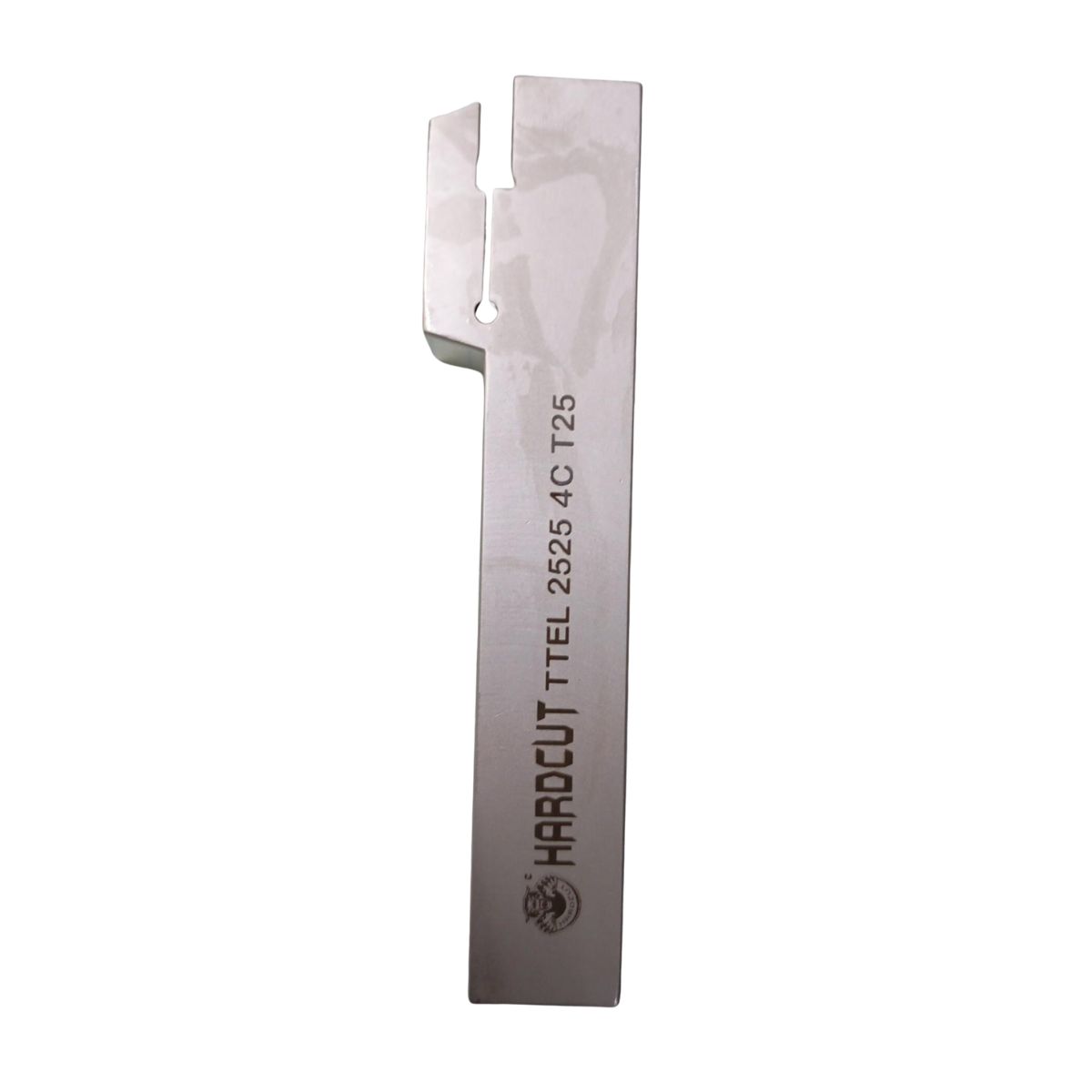

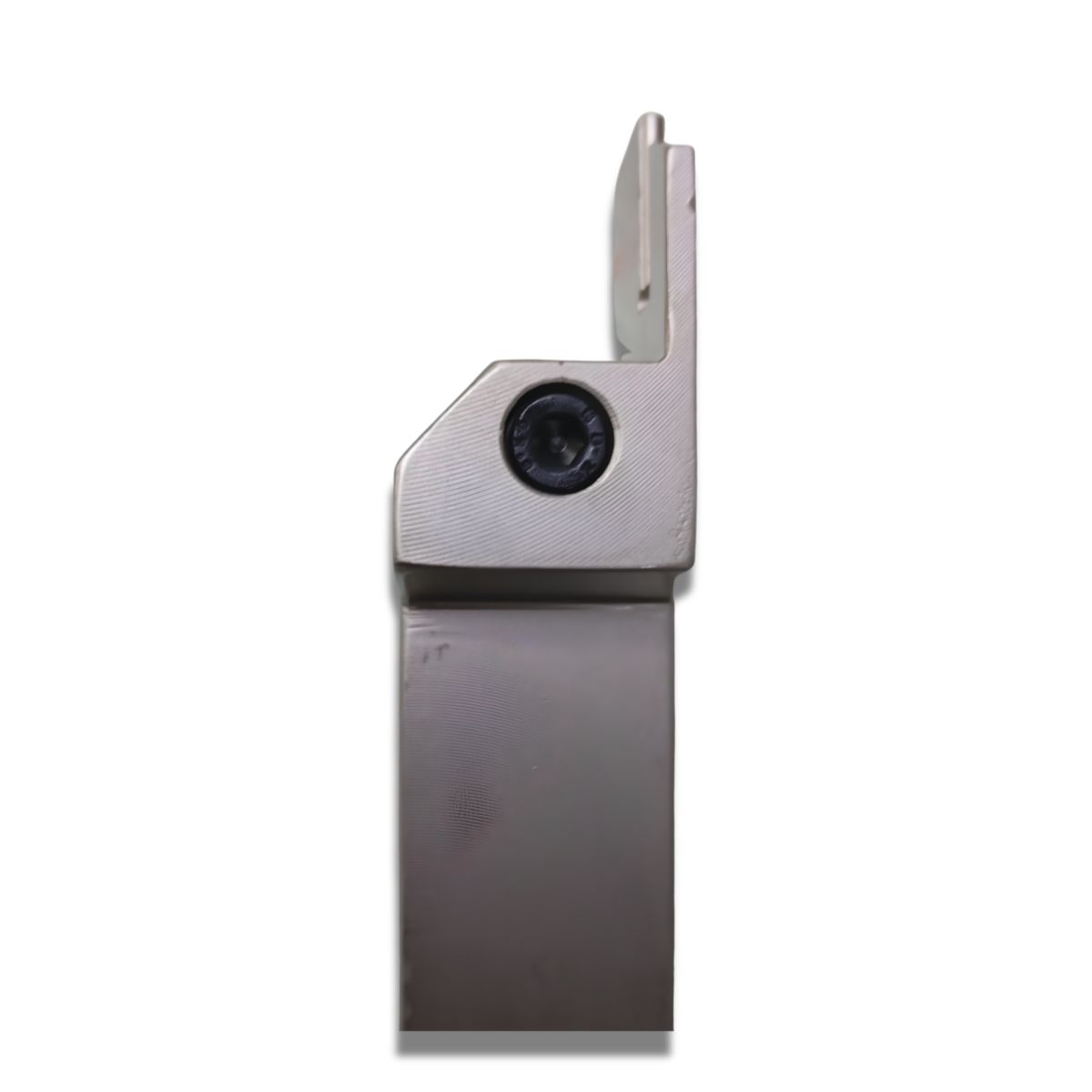

TTEL 2525 4C T25

TTEL 2525 4C T25

Brand: HARDCUT

AN INDEXABLE EXTERNAL GROOVING, PARTING, AND TURNING TOOL HOLDER DESIGNED FOR CNC LATHE SYSTEMS.PART OF THE INDUSTRY-REKNOWNED T-CLAMP FAMILY, THIS SERRATED POCKET DESIGN USES A HIGH-STRENGTH REINFORCED CLAMPING MECHANISM THAT SUPPRESSES VIBRATIONS DURING COMPLEX SHUTTLE-GROOVING CYCLES.

₹1700.00

₹1700.00

Share on:
product details
THE ALPHANUMERIC INDUSTRIAL STANDARD DESIGNATION CODE IS BROKEN DOWN INTO THE FOLLOWING SPECIFICATIONS: [1]

  • TTE: THE PROPRIETARY CLASSIFICATION FOR TAEGUTEC EXTERNAL T-CLAMP SERIES MONO-BLOCK REINFORCED TOOL BODIES.

  • L: OPERATIONAL LAYOUT ALIGNMENT DESIGNATION FOR LEFT-HAND TURRET ORIENTATION TRACKING.

  • 2525: SHANK CROSS-SECTION SHAPE ENVELOPE DIMENSIONS CONFIGURING 25 MM WIDTH × 25 MM HEIGHT SQUARE PROFILE STEEL BODY SHANK.

  • 4 / 4C: THE INSERT SEAT TRACK WIDTH CAPACITY ENGINEERED EXACTLY TO SECURE A 4.0 MM WIDTH DUAL-EDGED CHIP INSERT.

  • T25: THE COMPACT HEAD GEOMETRY CAPACITY INDICATING A MAXIMUM DEEP GROOVE PENETRATION RADIAL DEPTH (\(T_{max}\)) OF 25 MM.
