  • 6x6x13x57x 4F
  • 6x6x13x57x 4F

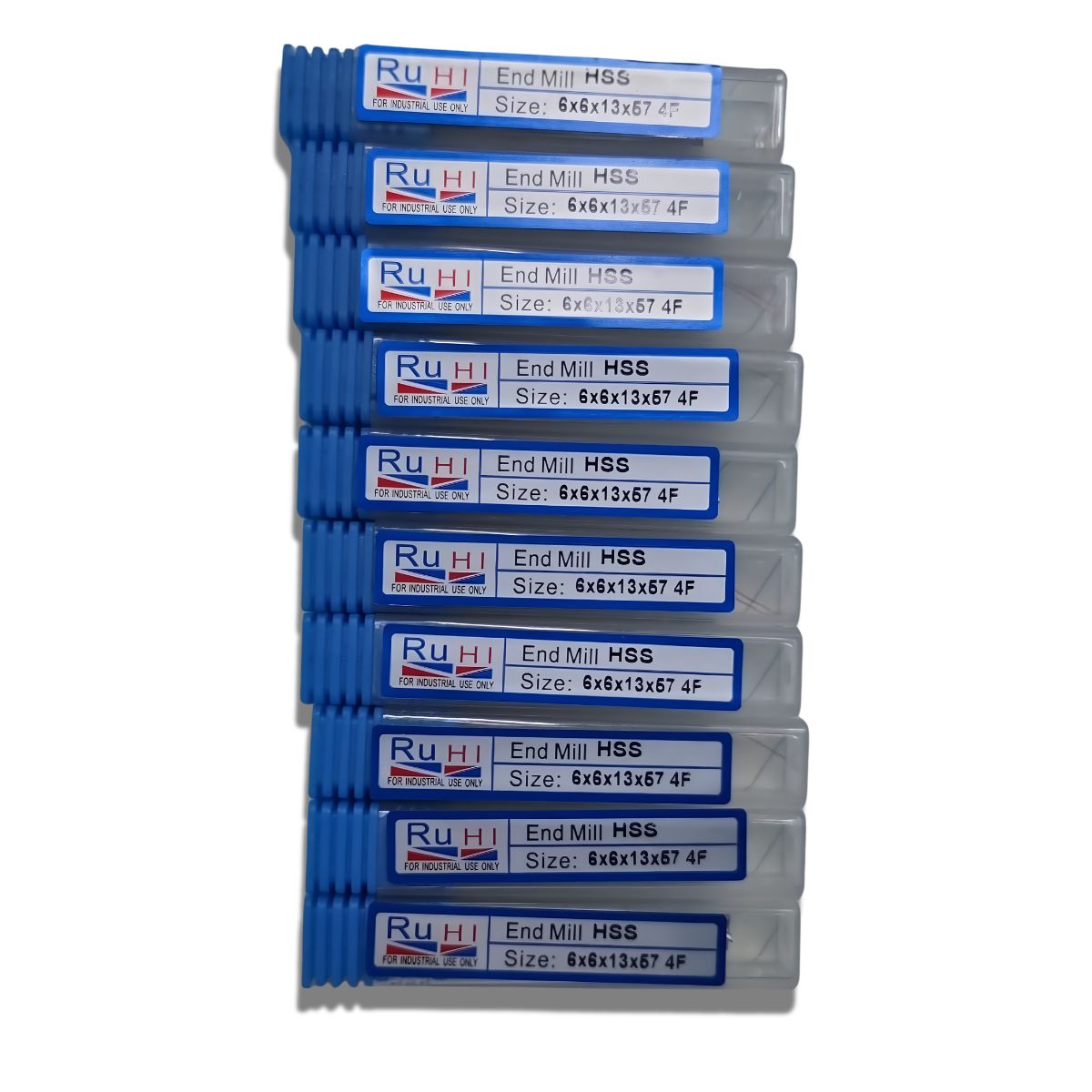

6x6x13x57x 4F

6x6x13x57x 4F

Brand: RUHI

6x6x13x57 4F belongs to the exact same category as your previous tool: Milling Cutters / End Mills. Best for CNC machining. It handles very high RPMs, delivers excellent surface finishes, and easily cuts hardened materials.

₹350.00

₹350.00

Share on:
product details

  • 6: Cutting Diameter (6 mm) — The diameter of the cutting head.

  • 6: Shank Diameter (6 mm) — The diameter of the holding shaft. Since the cutting diameter and shank diameter are identical, this is a Straight Shank (or Parallel Shank) tool.

  • 13: Flute Length / Length of Cut (13 mm) — The maximum depth the tool can cut along its side walls.

  • 57: Overall Length (57 mm) — The total length of the tool from top to bottom.

  • 4F: Number of Flutes (4 Flutes) — The tool has 4 cutting edges.


Technical Category & Usage

  1. Main Category: Solid End Mill

  2. Sub-Category: Straight Shank Short-Series End Mill (often conforming to international standards like DIN 844-K for HSS or DIN 6527 for Carbide).

  3. Primary Operations: It is optimized for Peripheral Milling (Side Wall Cutting), Profiling, and Finishing.

  4. Chip Evacuation: Having 4 flutes means smaller chip pockets. This makes it ideal for hard, short-chipping materials like Carbon Steels, Alloy Steels, and Stainless Steel, but prone to clogging in soft, gummy materials like Aluminum.
