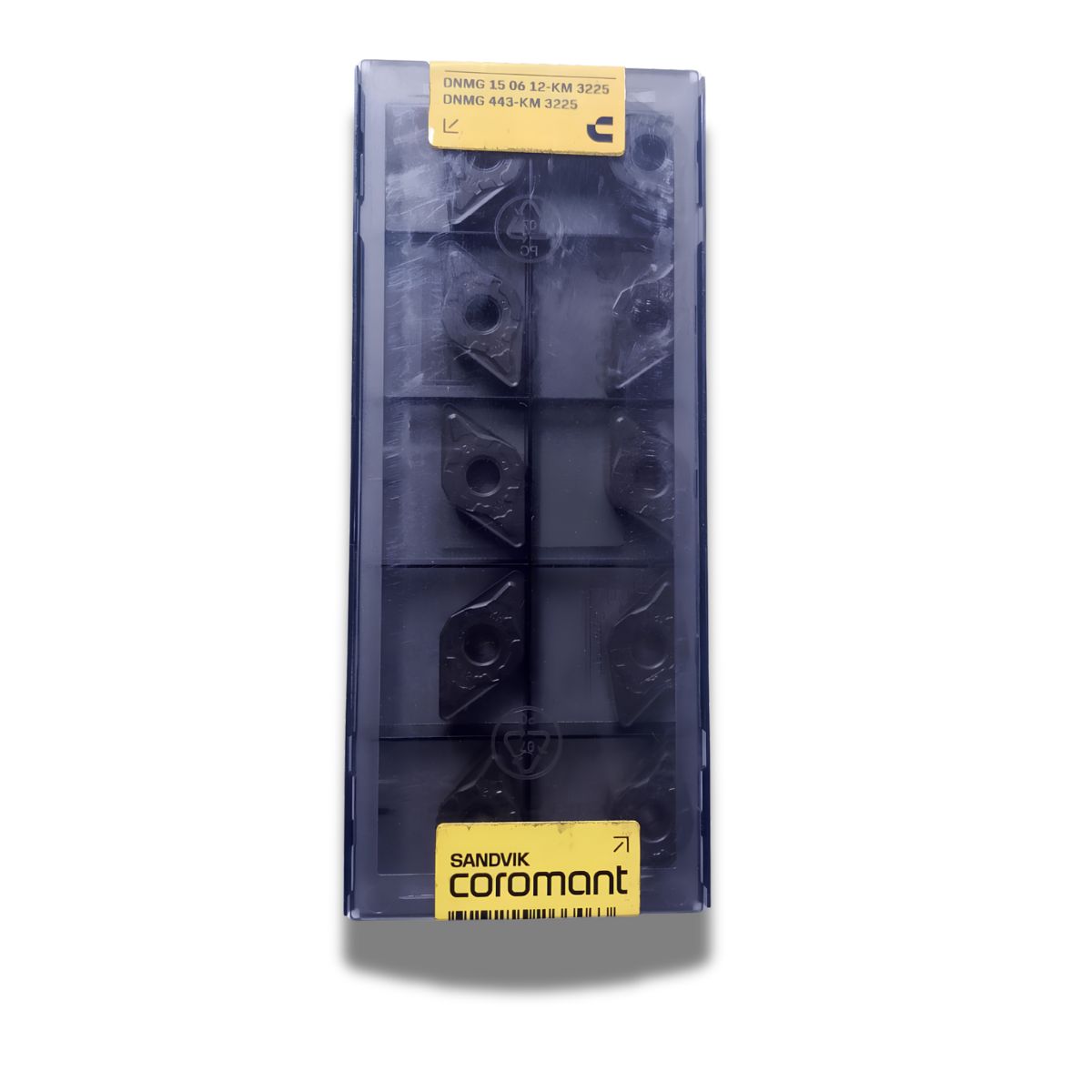

  • DNMG 15 06 12-KM 3225 DNMG 443-KM 3225
DNMG 15 06 12-KM 3225 DNMG 443-KM 3225

DNMG 15 06 12-KM 3225 DNMG 443-KM 3225

Brand: SANDVIK

The codes DNMG 15 06 12-KM 3225 (ISO standard) and DNMG 443-KM 3225 (ANSI standard) represent the exact same Sandvik Coromant indexable carbide turning insert engineered for pre-machining and medium roughing applications.

₹900.00

₹900.00

Share on:
product details
  • -KM (Chipbreaker): Sandvik’s specialized medium-to-roughing geometry optimized for cast iron turning. It provides stable chip control and is designed for pre-machining routines where a reliable surface finish is still demanded.
  • 3225 (Carbide Grade): A highly specialized CVD (TiCN + Al2O3 + TiN) coated carbide grade. It is engineered with premium thermal stability and high chipping resistance to handle both continuous and interrupted cuts safely.



Feature [1, 2, 3, 4, 5]ISO Code (DNMG 15 06 12)ANSI Code (DNMG 443)Technical Specification

Shape (D)

D

D

Rhombic / Diamond shaped (55° included angle)

Clearance Angle (N)

N

N

0° negative clearance angle for maximum edge strength

Tolerances (M)

M

M

Medium precision tolerance class

Fixing / Style (G)

G

G

Cylindrical center hole with double-sided chipbreakers

Cutting Edge Length

15 (~15.5 mm)

4 (4/8" or 1/2" Inscribed Circle)

Inscribed Circle (IC) = 12.7 mm

Thickness

06 (6.35 mm)

4 (4/16" or 1/4" thickness)

Insert Thickness = 6.35 mm

Corner Radius

12 (1.2 mm)

3 (3/64" corner radius)

Nose Radius = 1.19 mm (0.0469")
