  • DVJNL 3232 P16
  • DVJNL 3232 P16

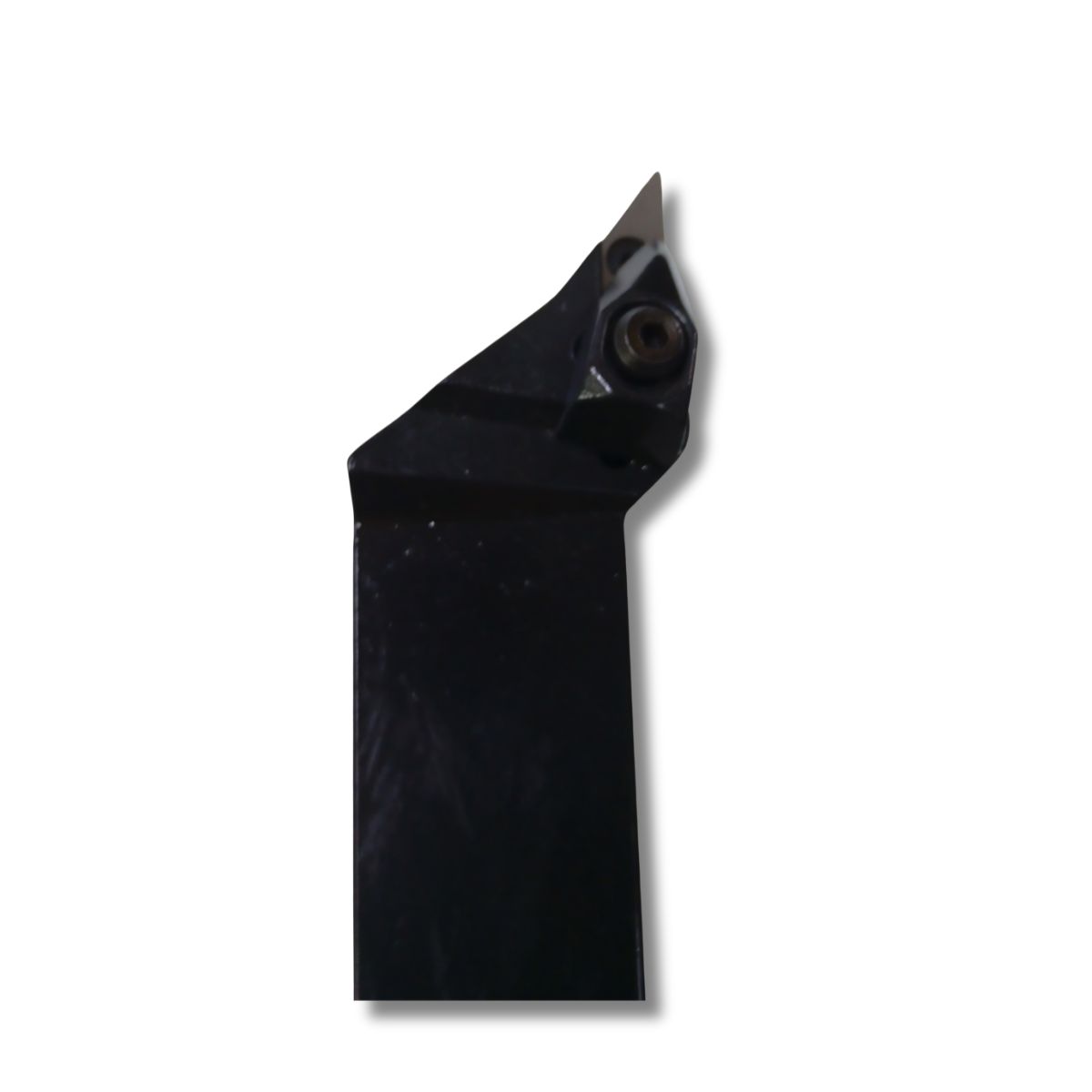

DVJNL 3232 P16

DVJNL 3232 P16

Brand: SUPER METAL

The code DVJNL 3232 P16 refers to a standard ISO-designated external indexable turning tool holder designed for metal cutting on CNC and manual lathe machines.

₹2600.00

₹2600.00

Share on:
product details
Technical Sizing & Dimensions

  • Shank Cross-Section: 32mm width × 32mm height (solid square steel shank).

  • Total Length: 170 mm (Standard ISO "P" length specification).

  • Cutting Hand: Left-Hand (L) cutting direction.

  • Approach Angle: 93 degrees (ideal for external profiling, facing, and contouring).

  • Clamping Mechanism: D-Type Double Clamp, which secures the insert from both the top face and inside the center hole simultaneously for maximum rigidity under heavy loads. [1, 2, 3]


Pocket Size & Compatible Inserts
The tool pocket is precision-machined to accommodate size 16 negative inserts. It pairs perfectly with:

  • Insert Style: VNMG 1604 (e.g., VNMG 160404, VNMG 160408).

  • Insert Shape: 35° rhombic/diamond-shaped profile.

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
