  • WTJNR 2525 M16
  • WTJNR 2525 M16

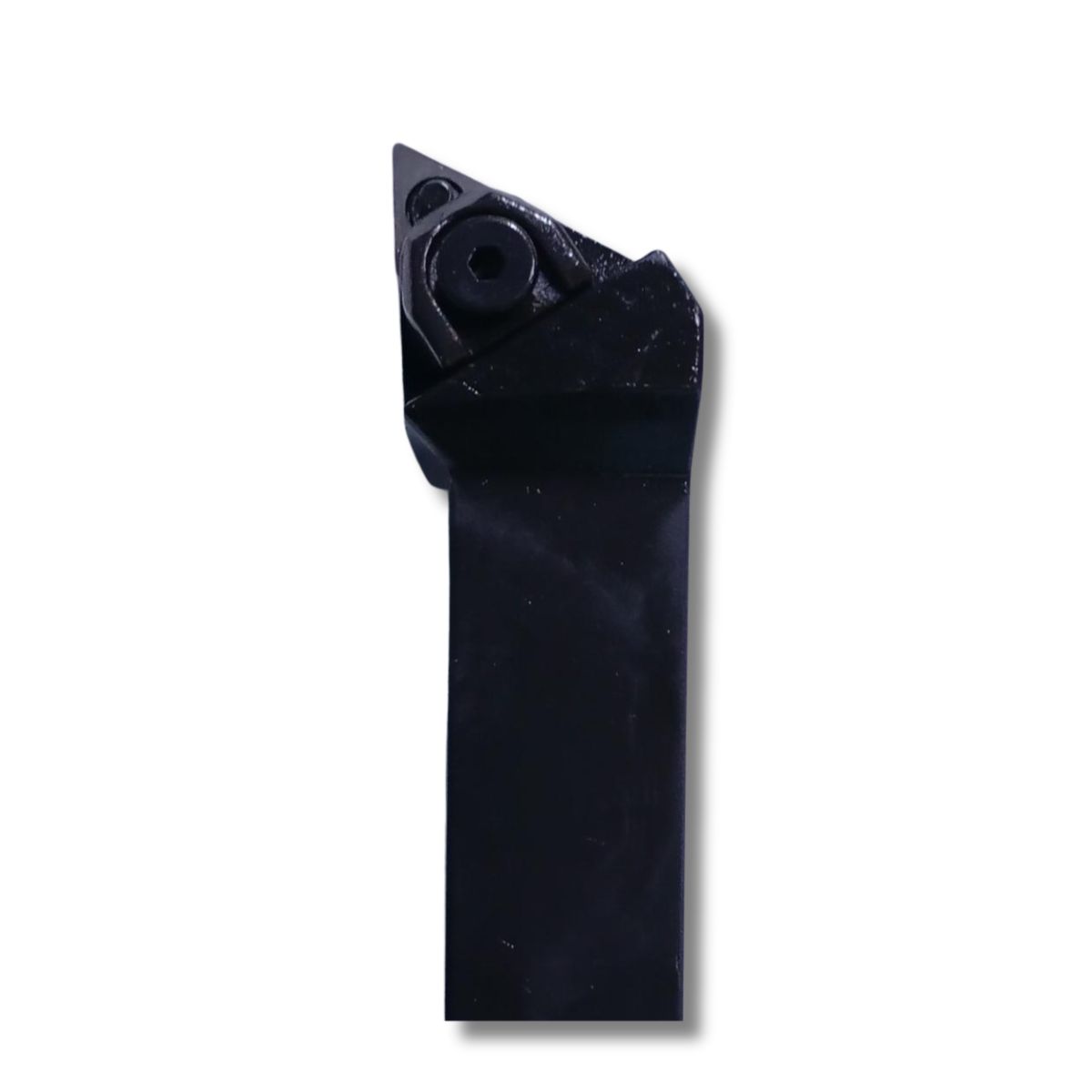

WTJNR 2525 M16

WTJNR 2525 M16

Brand: SUPER METAL

The WTJNR 2525 M16 is an ISO-standard, right-handed indexable external turning tool holder utilized on CNC and conventional lathe machines for external profiling, longitudinal turning, and facing .

₹1400.00

₹1400.00

Share on:
product details
  • W: Clamping system profile. It implements a highly reliable Wedge-clamp system that pulls the negative insert securely into the pocket, optimizing rigidity during deep cuts.
  • T: Insert shape orientation. It is built exclusively to hold 60° Triangular negative inserts J: Tool holder cutting style angle. It operates with a 93° approach angle (lead angle) for high metal removal rates while allowing the tool to turn towards the chuck.
  • N: Clearance angle profile. It accepts 0° negative clearance inserts, meaning you can flip the triangular insert to utilize cutting edges on both sides (up to 6 total edges).
  • R: Cutting direction configuration. This signifies a Right-Handed cutting orientation.
  • 2525: Shank cross-section size. The square shank dimensions measure 25mm height by 25mm width.
  • M: Total tool length profile. The functional length from the base of the shank to the tip is exactly 150mm.
  • 16: Insert cutting edge length compatibility. The pocket seat is explicitly configured to house standard TNMG 1604xx inserts (featuring a 16mm cutting edge length).
SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
