  • S12M SDZCL 07
  • S12M SDZCL 07
  • S12M SDZCL 07

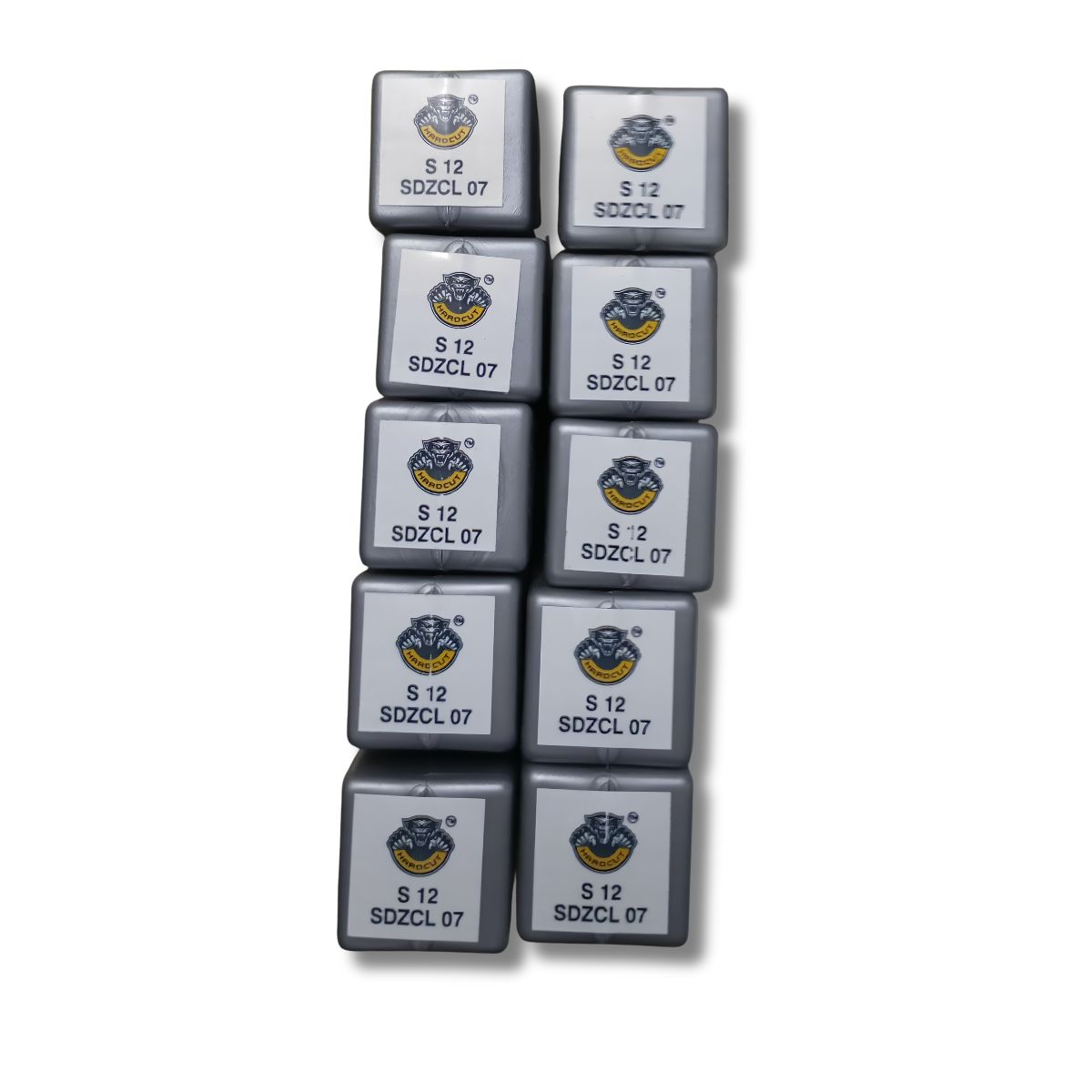

S12M SDZCL 07

S12M SDZCL 07

Brand: TOOLFARM

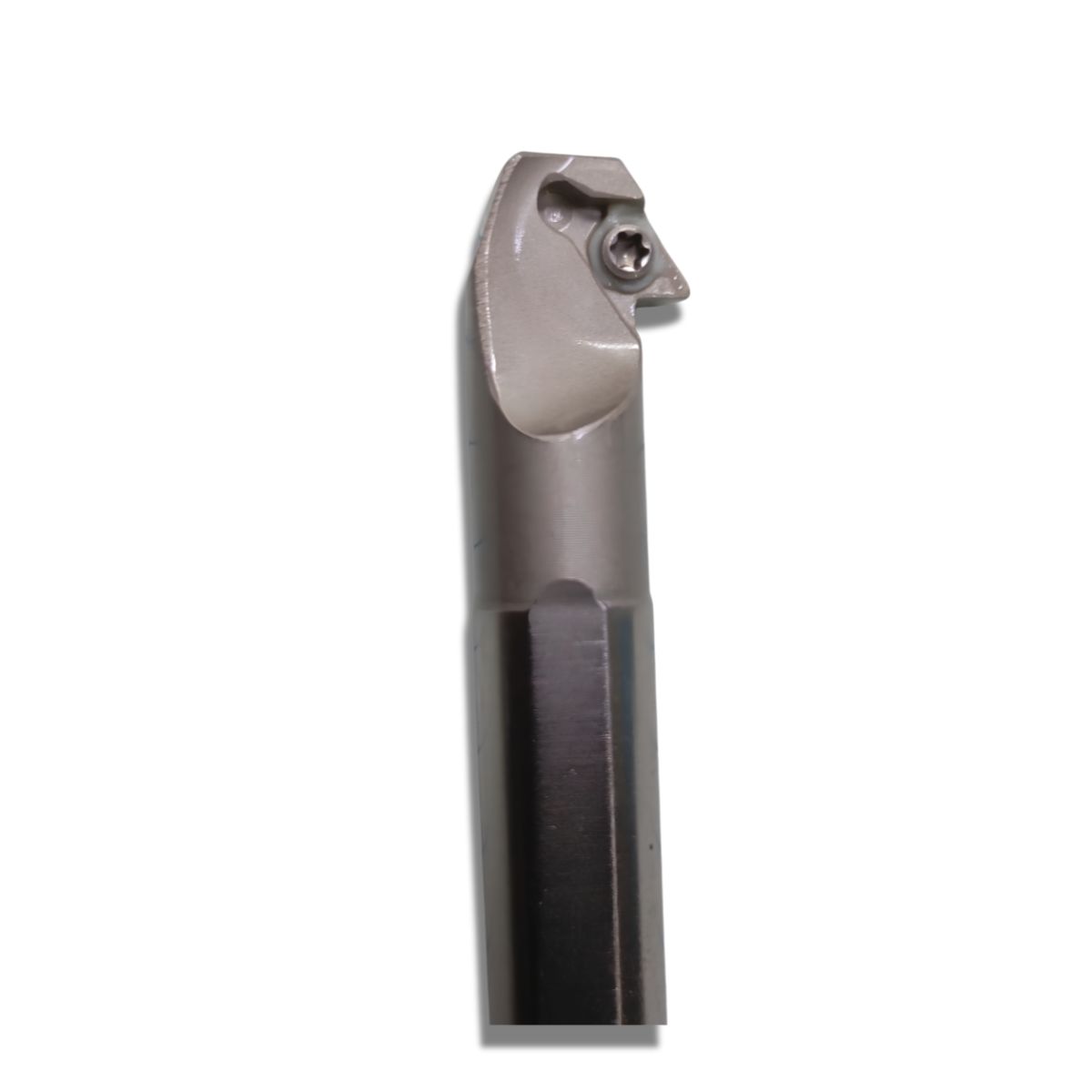

The code S12M SDZCL 07 refers to a standard ISO-designated indexable internal turning toolholder (boring bar) used in CNC and manual lathe machining. It features a 12 mm steel shank, a 93° approach angle, and is configured for left-hand cutting operations.

₹1400.00

₹1400.00

Share on:
product details

ISO Designation Breakdown
Each character in the part number specifies a precise technical attribute of the toolholder:
S: Indicates the tool material is a solid steel shank without a through-coolant channel.
12: Represents the shank diameter, which is exactly 12 mm.
M: Specifies the standard overall tool length, which is 150 mm.
S: Indicates the insert clamping method, which is a screw lock system.
D: Dictates the insert shape, designed for a 55° rhombic (diamond) indexable insert.
Z: Identifies the tool holder's specific cutting style and 93° approach angle (lead angle).
C: Denotes the insert clearance angle, which is 7° (positive insert).
L: Specifies that it is a left-hand orientation cutting tool.
07: Indicates the compatible cutting edge length of the insert, which is 7 mm (uses DCMT 0702... inserts).
Technical Specifications
Minimum Bore Diameter (
): Typically requires a 16 mm to 17 mm minimum entry hole depending on the manufacturer.
Functional Width (WF): Measures 10.5 mm from the back of the shank to the tip of the insert.
Matching Insert Type: DCMT 070204 or DCMT 070202 rhombic indexable carbide inserts.

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
