  • SDMT1204PDRMH SDMT 1204 PDR MH- WU20PM
  • SDMT1204PDRMH SDMT 1204 PDR MH- WU20PM

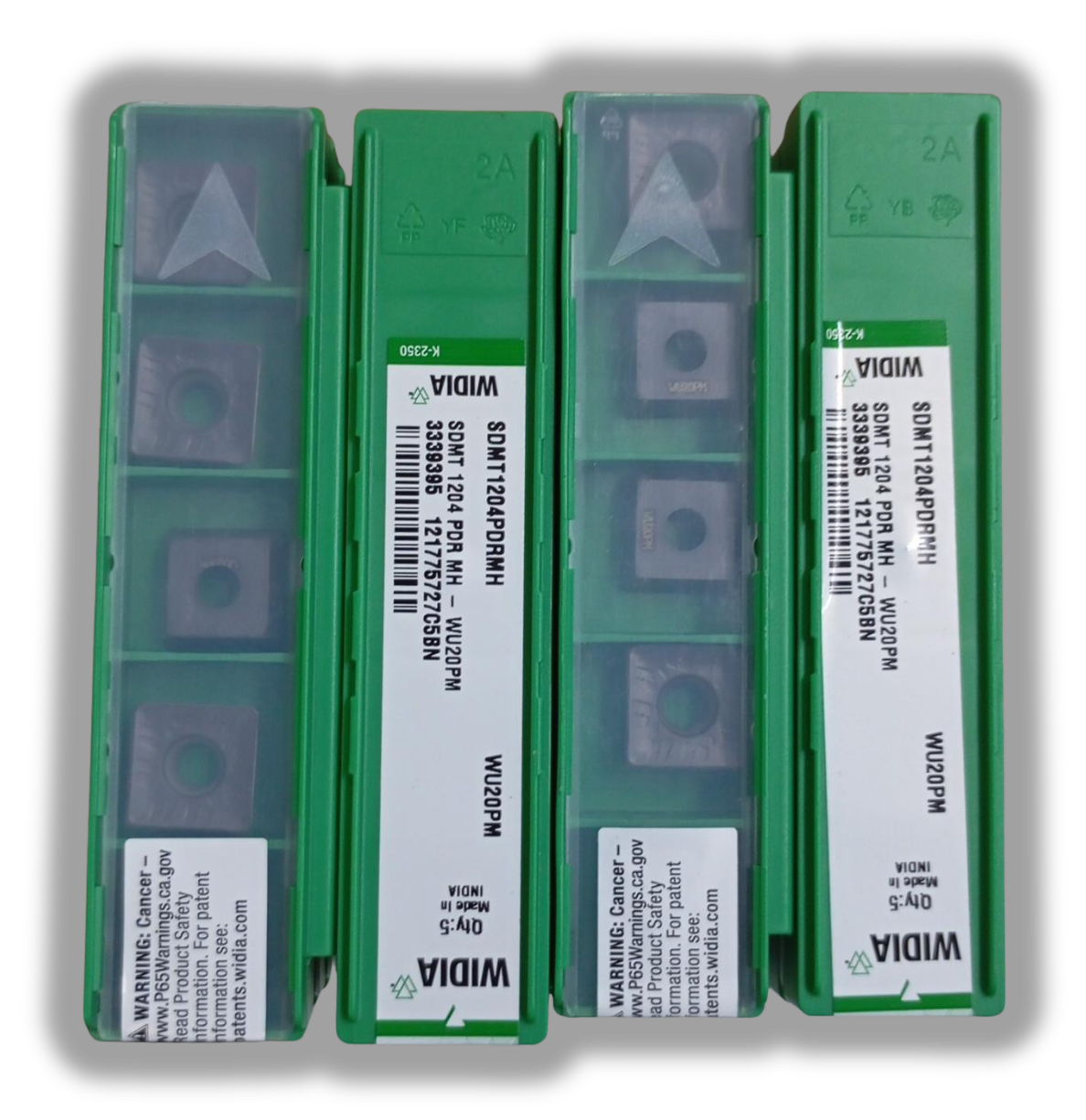

SDMT1204PDRMH SDMT 1204 PDR MH- WU20PM

SDMT1204PDRMH SDMT 1204 PDR MH- WU20PM

Brand: WIDIA

The SDMT1204PDRMH WU20PM is a high-performance, PVD-coated carbide indexable milling insert manufactured by WIDIA

₹400.00

₹400.00

Share on:
product details

S: Shape designation (Square indexable geometry).
D: Clearance angle code (features a 15° positive clearance angle).
M: Tolerance class (specifies precision parameters for height and thickness).
T: Clamping/fixing type (countersunk hole with a single-sided chipbreaker design).
12: Size code (Inscribed Circle (IC) measurement of 12.7 mm / 0.5 inches).
04: Thickness designation (standard insert thickness of 4.81 mm).
PDR: Corner/edge configuration (Specifies a right-hand cutting direction with standard indexing facets).
MH: Chipbreaker style (Engineered specifically for Medium Machining operations, providing balanced chip control and reduced cutting forces.

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.

You May Also Like

P6001-D25,00RWXP45
P6001-D25,00RWXP45
4500.00
5400.00
PENTA 24N 1.50-TT9080
PENTA 24N 1.50-TT9080
2400.00
2880.00
LNMX0607ZER-HJH3135
LNMX0607ZER-HJH3135
750.00
900.00

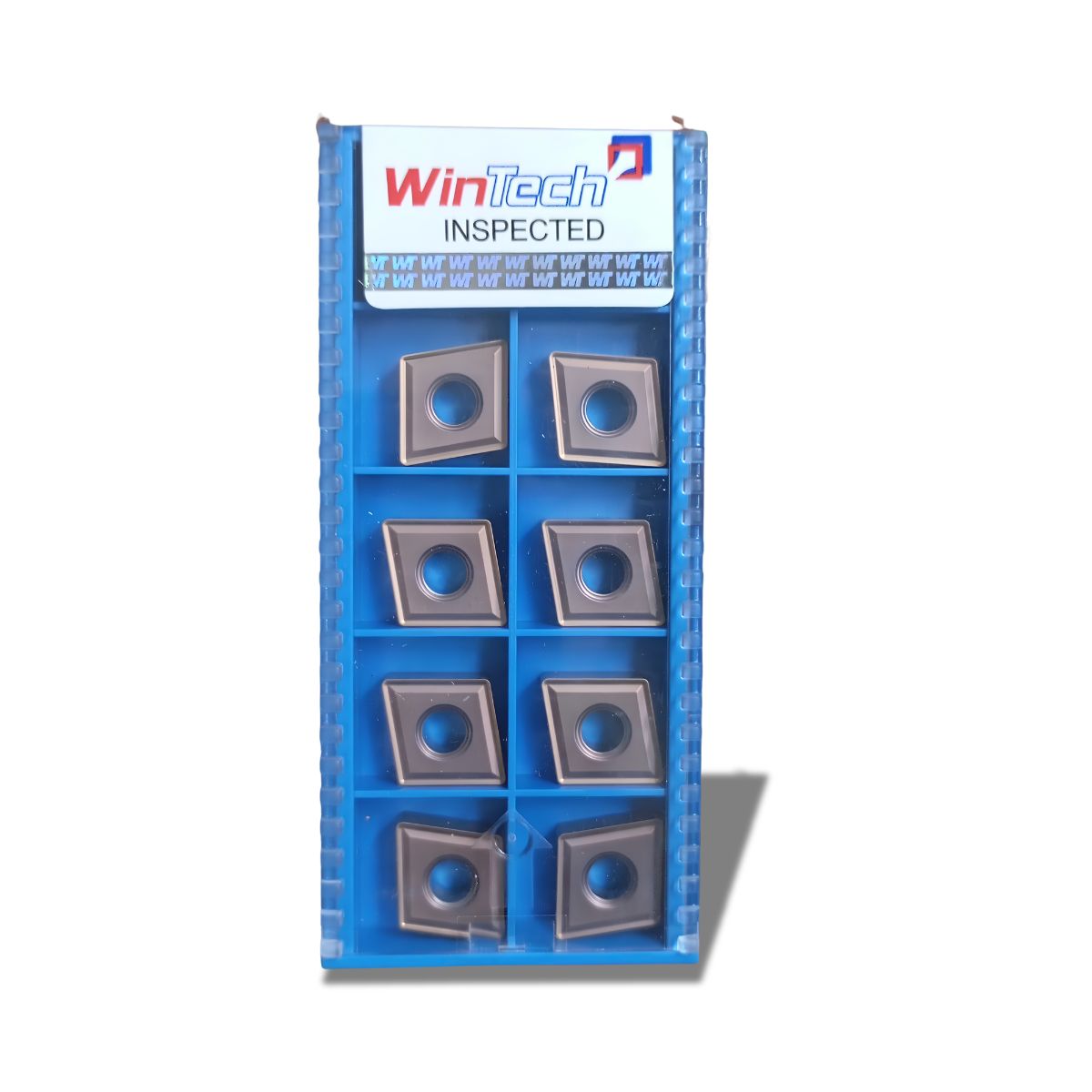

CNMG120408-SMWCT215M
