  • TTFL 25254C T25 (100-200)
  • TTFL 25254C T25 (100-200)
  • TTFL 25254C T25 (100-200)
TTFL 25254C T25 (100-200)

TTFL 25254C T25 (100-200)

Brand: HARDCUT

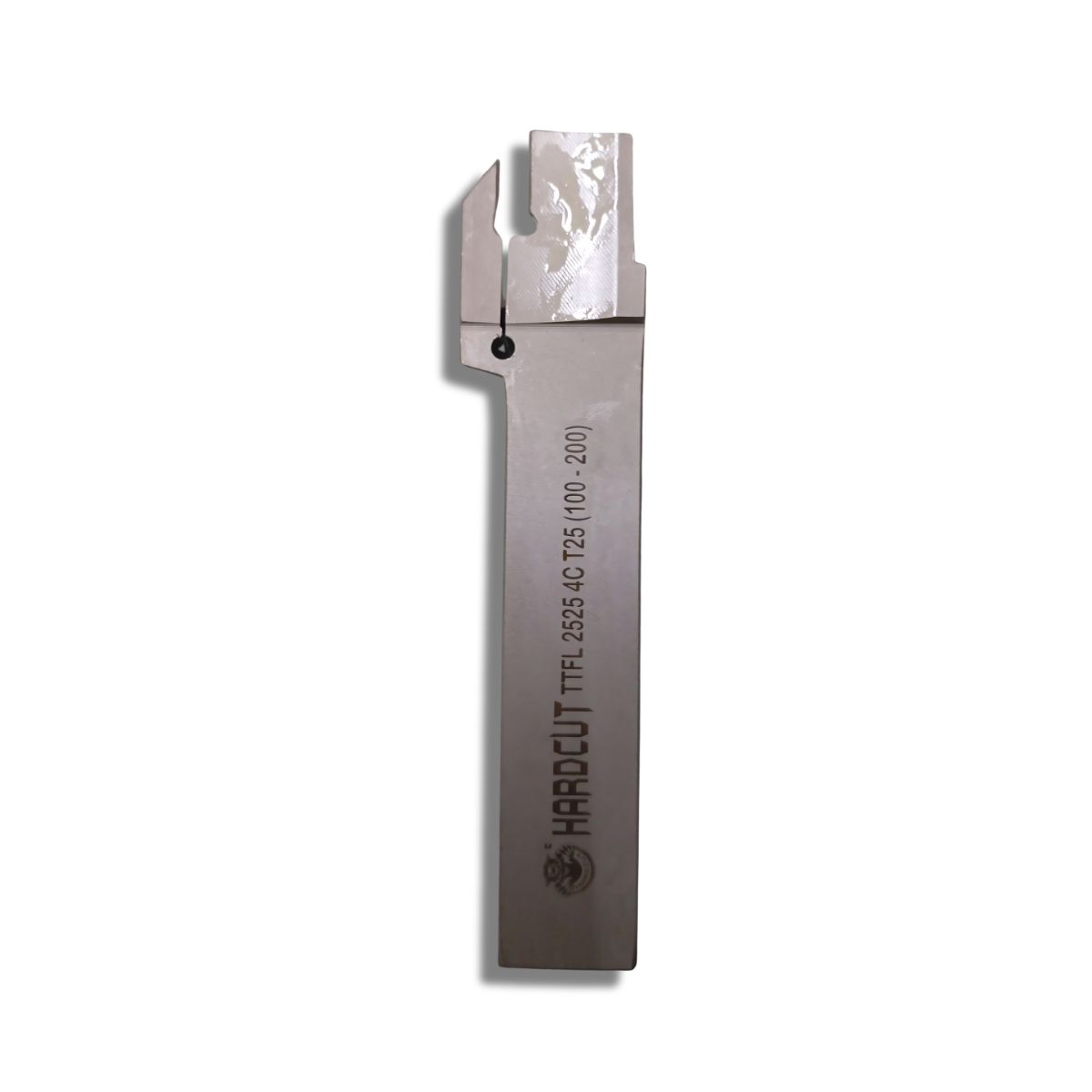

The designation TTFL 2525 4C T25 (100-200) (often stamped as TTFL 2525-4-T25) identifies an indexable external face grooving and turning tool holder.  Unlike the standard outer diameter (OD) straight grooving holder (TTEL) from your previous query, this specific tool holder features a curved blade seat explicitly engineered to match a specific workpiece entry diameter range

₹2800.00

₹2800.00

Share on:
product details

  • TTE: Represents the high-rigidity TaeguTec T-Clamp specialty series architecture.

  • F: Specifies Face Grooving functionality (the pocket blade curves specifically to match a circular axial face profile).

  • L: Defines Left-Hand structural orientation for the machine tool turret.

  • 2525: Indicates standard metric shank envelope dimensions of 25 mm width × 25 mm height.

  • 4 / 4C: Represents the precise insert track seat width, calibrated to rigidly clamp a 4.0 mm wide dual-edge insert.

  • T25: Identifies the maximum permissible plunge penetration depth, allowing a Maximum Cutting Depth (\(T_{max}\) / CDX) of 25 mm.

    • (100-200): Specifies the strict Working Diameter Range. The curved under-belly of the tool holder body is clear-ground to fit precisely into an axial face groove with a minimum starting diameter of 100 mm and a maximum upper threshold of 200 mm without rubbing against the slot walls.
