  • WNMG080408CQ

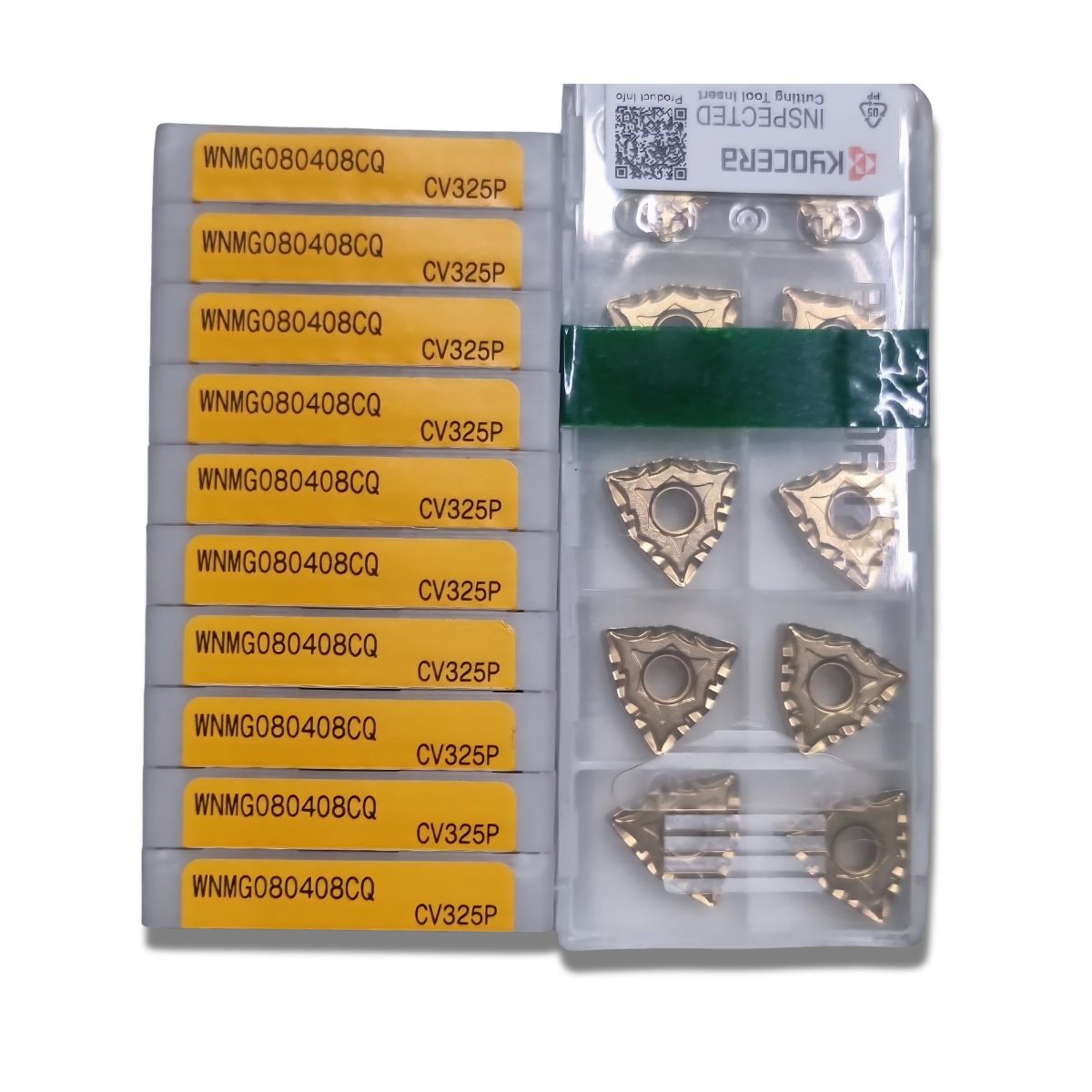

WNMG080408CQ

WNMG080408CQ

Brand: KYOCERA

The WNMG080408CQ is an ISO-standard, double-sided indexable carbide turning insert used primarily on CNC and manual lathes for medium-to-rough metal turning operations.

₹425.00

₹425.00

Share on:
product details

  • W (Insert Shape): Trigon shape (an 80-degree included angle, 3-sided configuration). [1, 2, 3, 4]

  • N (Clearance Angle): 0-degree negative clearance angle. This heavy-duty negative profile provides superior edge strength for cutting high-tensile metals. [1, 2]

  • M (Tolerance Class): Denotes medium-class manufacturing tolerances on thickness and indexability. [1, 2]

  • G (Type): Features a cylindrical center hole for secure pin-and-clamp tool holder mounting. [1, 2]

  • 08 (Cutting Edge Length): The outer cutting edge length measures 8.7 mm (fitting a 12.7 mm inscribed circle). [1, 2]

  • 04 (Thickness): The thickness of the carbide body is 4.76 mm. [1, 2]

  • 08 (Corner Radius): A standard 0.8 mm nose radius. It delivers a balanced performance, blending high-feed material removal rate with a smooth surface finish. [1, 2, 3]

  • CQ (Chipbreaker Designation): Specifies the manufacturer's CQ-type chipbreaker geometry. It is engineered explicitly for excellent chip control during medium-to-heavy turning, preventing long, dangerous stringy bird-nest chips. [1, 2, 3]


Applications & Compatibility

  • Target Materials: Highly effective for general-purpose machining on carbon steel, alloy steels, and stainless steels.

  • Holder Compatibility: Fits cleanly into any standard external or internal boring turning holder designed for WNMG 0804 sizes (such as standard MWLNR/L or WWLNR/L tool shanks).

  • Common Brands: This specific designation is widely manufactured by industrial brands like Kyocera (in grades like CA525/CA530) and Deskar (in grades like LF9018/LF9218).

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
