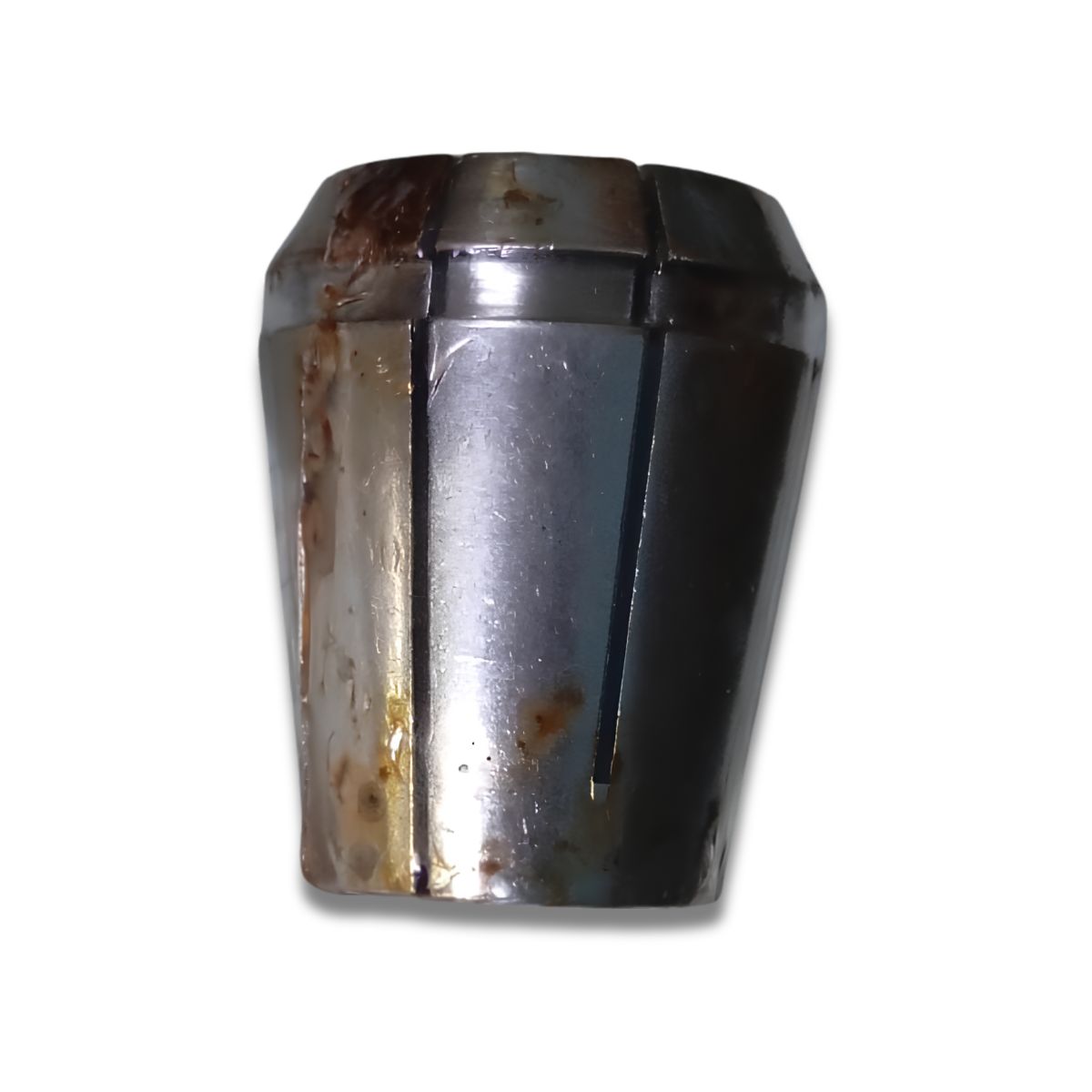

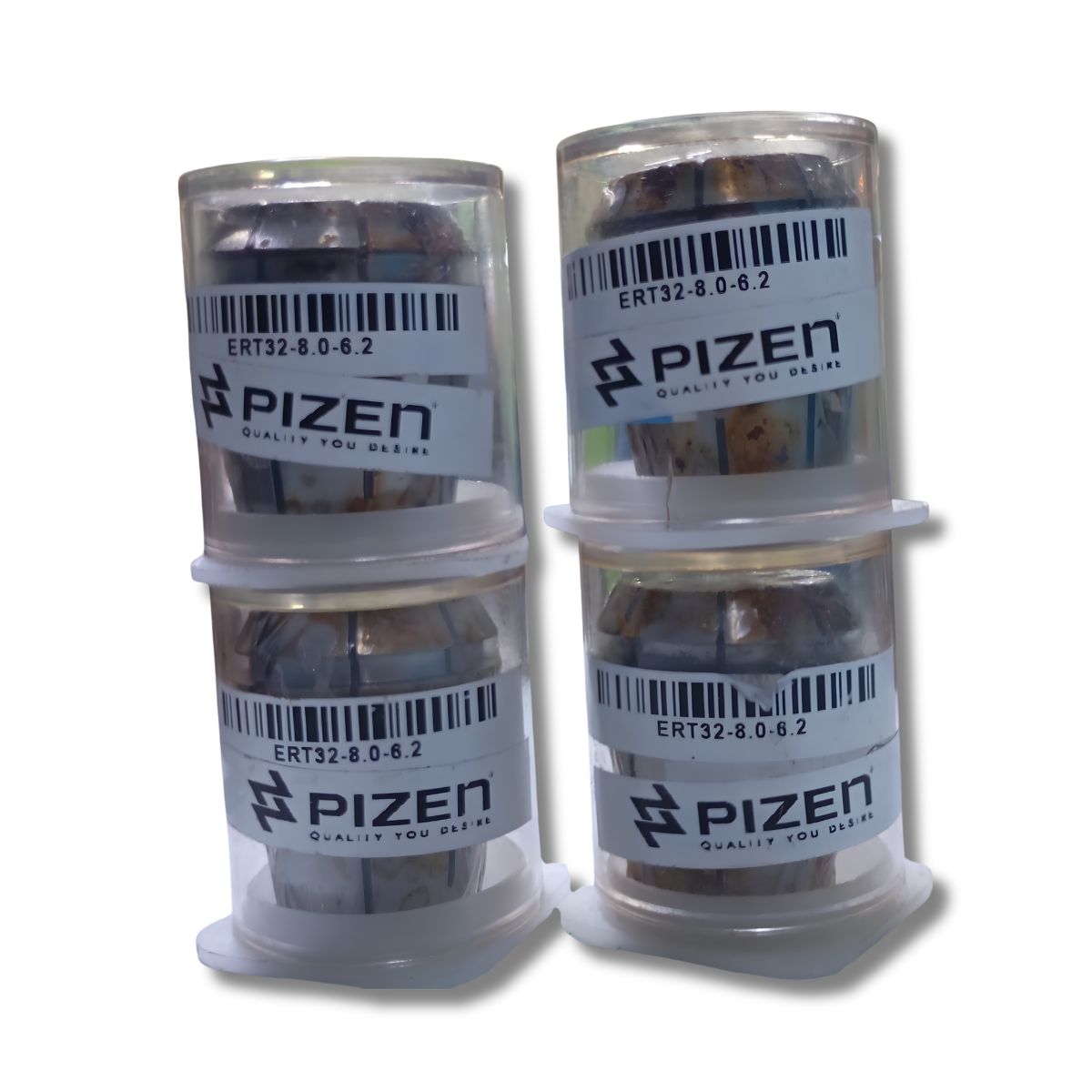

The ERT32-8.0-6.2 is a highly specialized, industrial-grade toolholding accessory designed under global standards for synchronous (rigid) tapping operations on CNC machining centers, vertical milling machines (VMCs), and multi-axis turning centers.
To understand why this specific collet is necessary, it is essential to break down the alphanumeric designator according to standard DIN 6499 / ISO 15488 industrial frameworks:
The "ER" System: Refers to the universal 8-degree taper system originally commercialized by Rego-Fix, which has become the absolute industry standard for tool clamping.
The "T" or "G" Designation: Indicates a Tapping/Rigid Drive Profile. Standard ER collets feature full-length longitudinal slots alternating from both ends, allowing them to collapse uniformly. The ERT version features a solid, non-collapsible internal rear section with a broached square.
Size 32 Dimensions: Dictates the universal physical dimensions of the collet body shell. This means it has an outer major diameter of 33 mm and a total length of 40 mm. It will drop directly into any standard ER32 collet chuck holder, utilizing a standard ER32 clamping nut.
2. Bore Specification: 8.0 (mm)
This specifies the precision-ground internal round diameter (d₁) at the front mouth of the collet. It is engineered to hold a tool shank ground precisely to 8.0 mm.
3. Drive Dimension: 6.2 (mm)
This specifies the side-to-side width (a) of the internal square drive broached into the back wall of the collet cavity. This square profile pocket acts as a positive mechanical lock.
📐 Global Tap Standard Matrix Compatibility
Machine taps are not manufactured under a single global dimensional layout. Depending on your region or drawing parameters, an 8.0 mm × 6.2 mm shank configuration aligns with two primary industrial standards:
Tap Standard
Thread Size Designation
Shank Characteristics
Notes
DIN 371
M8 (Standard Coarse)
Reincovered Oversized Shank
The shank is thicker than the actual M8 thread profile for high torque.
ISO 529
M12 (Standard Coarse)
Standard Straight Shank
The shank matches standard proportional dimensions for deep hole clearing.
JIS (Japanese)
M11 / M12 (Variable)
Varies by Manufacturer
Double-check Japanese tool prints; some JIS M12 taps use an 8.5mm shank.
⚙️ Mechanical Functionality: Standard vs. ERT Tapping Collets
To understand why an engineering department specifies an ERT32-8.0-6.2 over a standard, everyday ER32-8.0 collet, consider what occurs during high-speed machining cycles:
[Standard ER Collet] ──> Relies 100% on Friction Clamping ──> High risk of spin/slip on reversal
[ERT Tapping Collet] ──> Round Bore (Friction) + Rear Square ──> 100% Positive Mechanical Interlock
The Problem of Torsional Friction Slippage: Standard ER collets rely entirely on radial clamping friction. During a tapping cycle, when a tap reaches the bottom of a blind hole and the spindle forcefully reverses rotation to back it out, the high torque combined with cutting fluid lubrication frequently causes a standard collet to slip. This results in stripped threads, altered depths, or snapped taps.
The ERT Mechanical Lock Solution: The ERT collet uses friction to maintain axial alignment at the front (8.0 mm round bore), but relies on a positive mechanical interlock at the back (6.2 mm square pocket). The tap's square end drops cleanly into this pocket, making rotational slippage physically impossible, even under extreme reverse torque conditions.
🛒 Industrial Market Ecosystem & Sourcing (India)
When sourcing this collet for your production floor, verify the runout limits (Total Indicated Runout or T.I.R.) required for your machinery. Industrial options range by performance tiers:
High-Precision Tier: For high-speed CNC applications running fine-pitch threads, premium brands treat the metal with specialized cryo-hardening to achieve an ultra-low runout tolerance (≤ 0.005 mm). Look to global brands like Rego-Fix, ERG Series, or high-end domestic manufacturers.
