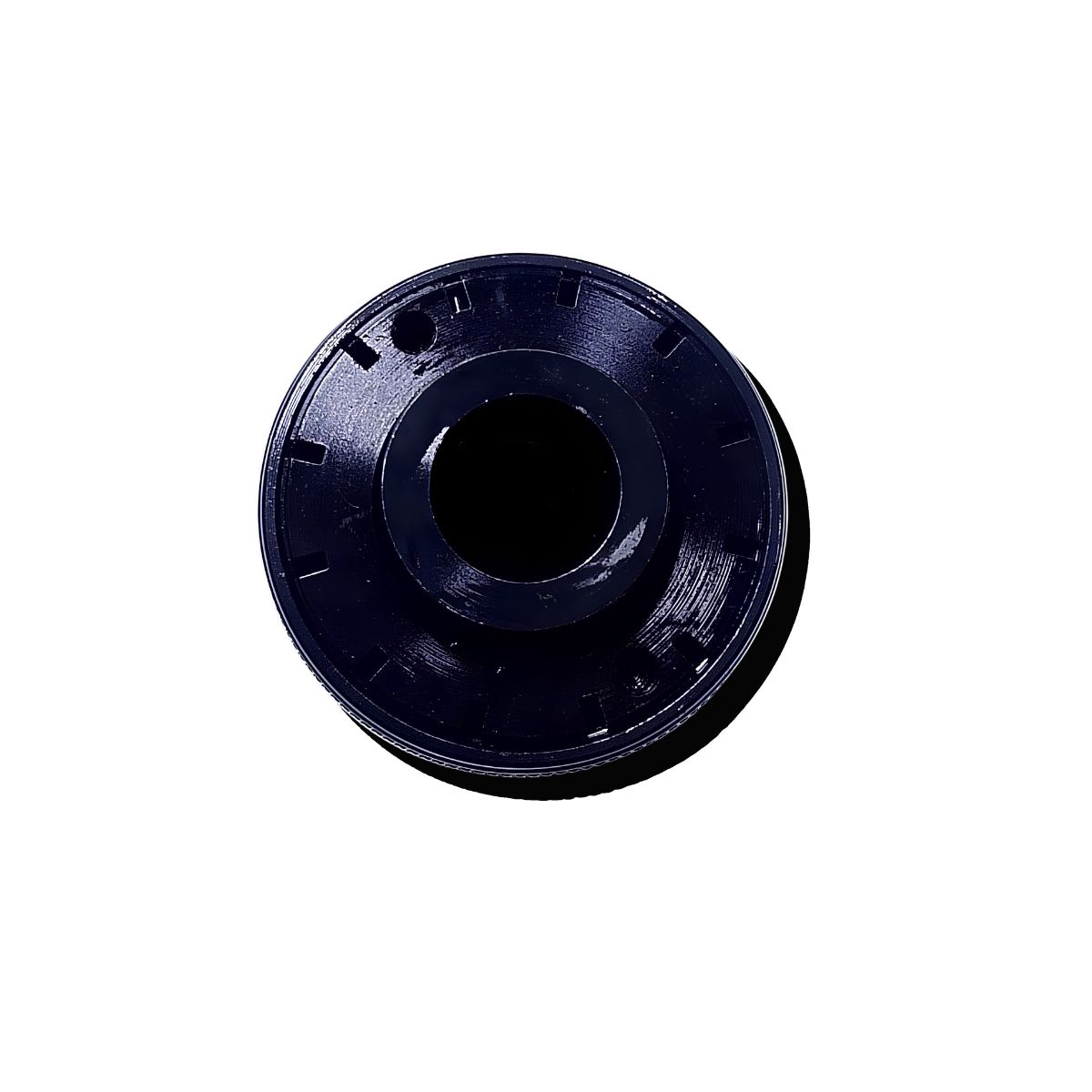

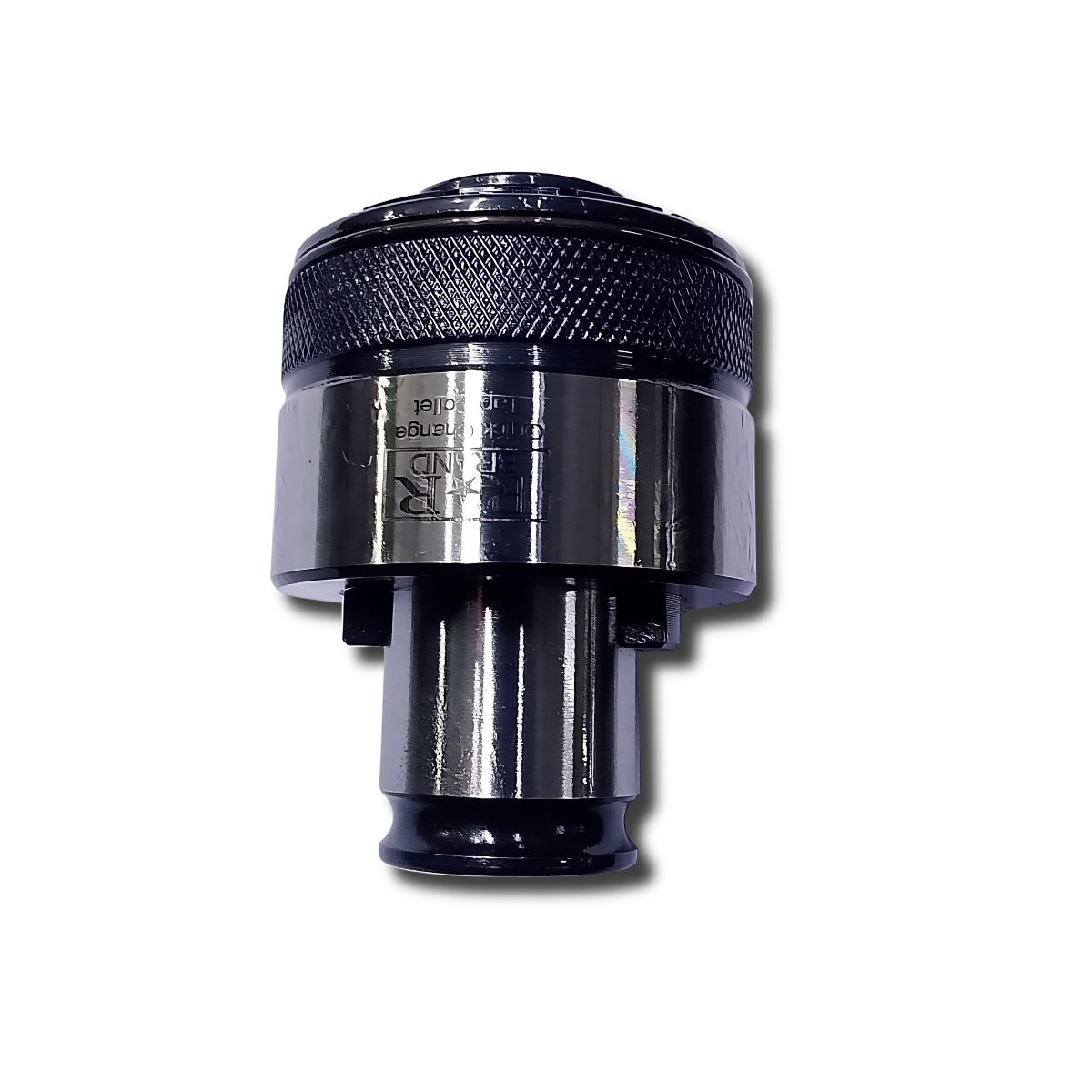

1. TECHNICAL CODE BREAKDOWN
GT-24: DESIGNATES THE MACHINE-SIDE CHUCK INTERFACE COUPLING SYSTEM SIZE. THE GT-24 SYSTEM TYPICALLY OPERATES WITHIN A CAPACITY SPECTRUM RANGING FROM M6 UP TO M30 THREADING APPLICATIONS.
18: THE SPECIFIC INTERNAL BORE HOLE DIAMETER IN MILLIMETRES (18.0 MM) TAILORED TO RECEIVE THE ROUND SHANK STALK OF THE MACHINE TAP.
14.5: THE SPECIFIC SQUARE SOCKET WIDTH MEASUREMENT IN MILLIMETRES (14.5 MM X 14.5 MM) TAILORED EXCLUSIVELY TO LOCK THE ANTI-ROTATION DRIVING SQUARE BLOCK END OF THE TAP.
COMPATIBLE TAP STANDARD: CONFORMS TO THE DIN 376 STANDARD CONFIGURATION PATTERN FOR METRIC M24 COARSE PLUG REAMER
2. KEY ATTRIBUTES & DESIGN
OVERLOAD SAFETY SLIP CLUTCH: EQUIPPED WITH AN ADJUSTABLE INTERNAL OVERRUNNING COUPLING SPRING MATRIC MECHANISM. WHEN CUTTING RESISTANCE EXCEEDS PRESET BOUNDARIES, THE TOOL AUTOMATICALLY SLIPS AND IDLES TO PREVENT SHARP BLADE SNAPPING.
QUICK CHANGE MECHANISM: PERMITS AUTOMATED BLIND PUSH-AND-CLICK COMPONENT MOUNTING CYCLES DIRECTLY INSIDE AXIAL COMPENSATING REAMING FLANGES WITHOUT MANUAL WRENCH CLAMPING STEPS.
BLIND HOLE SAFETY PROTECTION: HIGHLY EFFECTIVE FOR BOTTOM-HOLE TAPPING TREKS. INDUCES SAFETY SLIPPING DISENGAGEMENT SPONTANEOUSLY THE INSTANT THE FRONT TIP HITS THE ACCUMULATED SOLID CHIP DEBRIS HOLE BOTTOM.
3. INDUSTRIAL APPLICATIONS
TARGET PROCESSES: HEAVY CNC MACHINING CENTER THREAD TAPPING, CNC LATHE LIVE-TOOL PROCESSING, SYNCHRONIZED RADIAL REAMING, AND MULTI-SPINDLE MASS HOLE THREADING OPERATIONS.
COMMON WORKPIECES: ENGINE blocks, HEAVY-DUTY CAST METALLIC FLANGES, STRUCTURAL BEAM JOINT CONNECTIONS, PRESS DIES, AND HYDRAULIC VALVE MANIFOLD BLOCKS.
