  • STM1603L
STM1603L

STM1603L

Brand: TOOLFARM

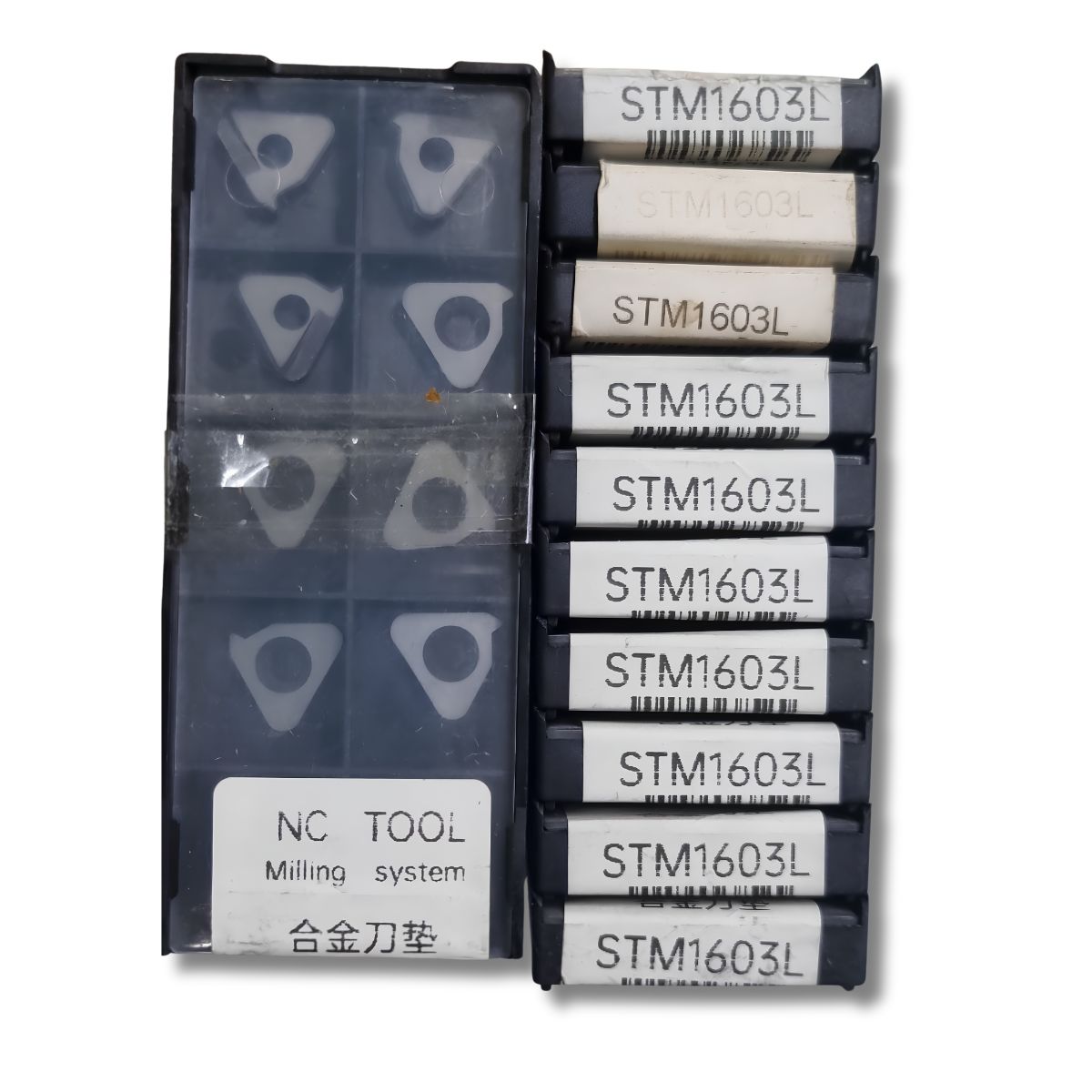

The STM1603L is an ISO-standard designated carbide threading insert seat shim (also known as an anvil or pocket pad) designed exclusively for CNC lathe threading tool holders.Instead of cutting metal directly, it sits directly underneath the actual threading insert to protect the tool holder body from severe stress, damage, or sudden tool breakage.

₹200.00

₹200.00

Share on:
product details

  • ST: Style designation — Threading Shim or anvil type.

  • M: Insert Shape — Designed for Triangular threading inserts (e.g., standard 16ER / 16IR series layout).

  • 16: Size — Fits a 16mm outer sizing platform (equivalent to a 3/8" Inscribed Circle / I.C. layout).

  • 03: Thickness — The nominal thickness of the shim is 3.2 mm.

  • L: Hand of Tool — Left-Hand (L) orientation. It is primarily engineered for internal threading configurations or specific left-hand external tool bars. [1, 2, 3, 4, 5]


Technical Specifications

ParameterSpecificationPurpose

Material

Cemented Carbide / Carbon SteelAbsorbs high impact and prevents tool holder deformation.

Side Length

16.0 mmMatches the base footprint of 16-series inserts.

Thickness

3.2 mmEnsures precise alignment to the centerline of the spindle.

Center Aperture

4.0 mmAccommodates the standard lockdown clamping screw.

Compatible Inserts

16NR / 16IR series

Perfect fit for standard internal triangular threading layouts.
