  • TGFIR16 2CT6
  • TGFIR16 2CT6

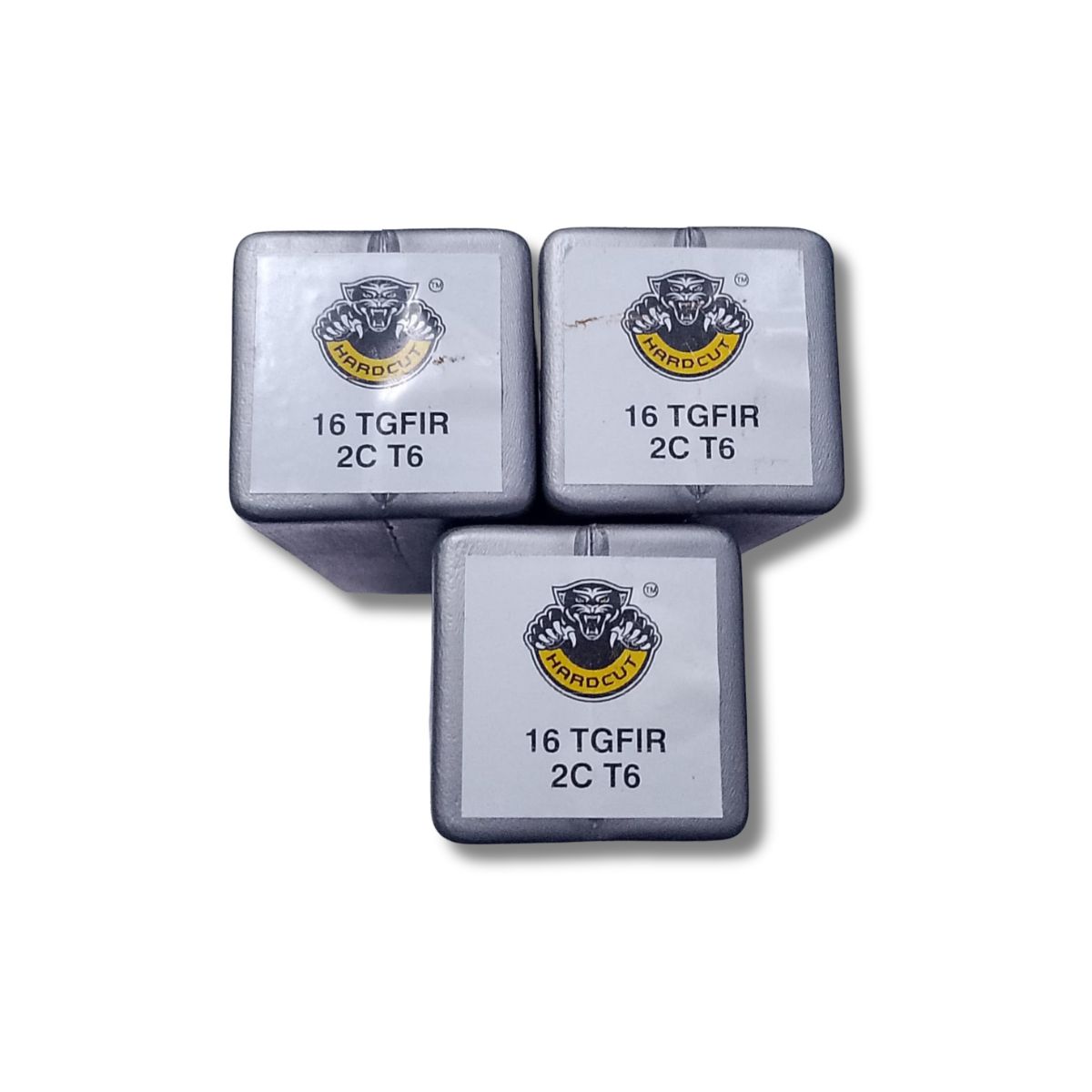

TGFIR16 2CT6

TGFIR16 2CT6

Brand: HARDCUT

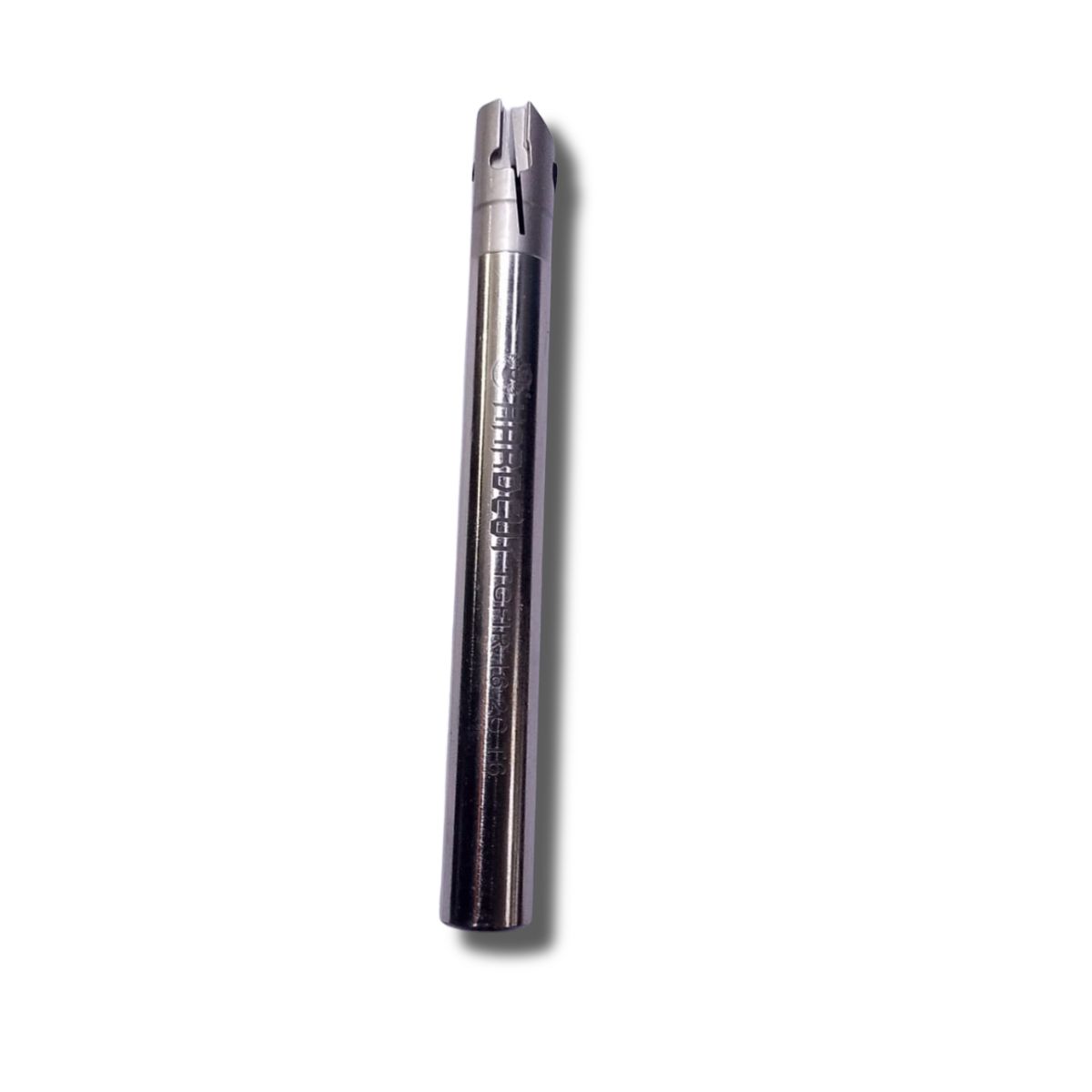

THE TGFIR16 2CT6 IS AN INTERNAL LATHE BORING BAR WITH BUILT-IN COOLANT HOLES, DESIGNED SPECIFICALLY TO HOLD 2 MM WIDE TOP-GRIP OR CUT-GRIP INDEXABLE INSERTS FOR DEEP FACE GROOVING, INTERNAL GROOVING, AND TURNING OPERATIONS.

₹2300.00

₹2300.00

Share on:
product details

1. TECHNICAL CODE BREAKDOWN
TG: DESIGNATES COMPATIBILITY WITH TOP-GRIP (OR SIMILAR DUAL-FUNCTION CUT/GROOVE) PROFILING INSERT GEOMETRIES.
F: INDICATES FACE GROOVING CAPABILITY ALONGSIDE TRADITIONAL INTERNAL PROCESSING.
I: IDENTIFIES THE TOOL TYPE AS AN INTERNAL BORING BAR / HOLDER.
R: SPECIFIES A RIGHT-HAND TOOL CUTTING ORIENTATION.
16: DESIGNATES A 16 MM SHANK DIAMETER (FITTING STANDARD CNC LATHE TURRETS AND BLOCKS).
2: INDICATES THE TARGET INSERT WIDTH SPECIFICATION (2.0 MM).
C: CONFIRMS AN INTEGRATED INTERNAL COOLANT HOLE CHANNELED DIRECTLY TO THE CUTTING EDGE FOR SWIFT CHIP EVACUATION.
T6: SPECIFIES A MAXIMUM GROOVE DEPTH CAPACITY OF 6 MM.
2. KEY ATTRIBUTES & DESIGN
CHIP MANAGEMENT: THE INTERNAL COOLANT SYSTEM FORCES HIGH-PRESSURE FLUID DIRECTLY INTO TIGHT INTERNAL GROOVES. THIS PREVENTS CHIP BIRD-NESTING AND PROLONGS BLADE INTEGRITY.
RIGIDITY: MACHINED FROM HIGH-ALLOY TOOL STEEL TO SUPPRESS STRUCTURAL VIBRATIONS WHEN WORKING INSIDE NARROW BORE CONFIGURATIONS.
DUAL OPERATION: ALLOWS AN OPERATOR TO PLUNGE-CUT AN INTERNAL GROOVE AND IMMEDIATELY TRANSITION INTO LATERAL TURNING WITHOUT SWITCHING TOOL STATIONS.
3. INDUSTRIAL APPLICATIONS
TARGET PROCESSES: DEEP FACE PROFILING, INTERNAL O-RING GROOVE CUTTING, INTERNAL CIRCLIP RECESSING, AND COUNTERBORING.
COMMON WORKPIECES: HYDRAULIC VALVE MANIFOLDS, AUTOMOTIVE GEAR HUBS, INDUSTRIAL PIPE FLANGES, AND MECHANICAL TRANSMISSION RINGS. MAJOR PREMIUM TOOL BRANDS LIKE TAEGUTEC AND ISCAR MANUFACTURE TOOL STYLES MATCHING THIS EXACT DESIGN SPEC.


SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.

You May Also Like

TTEL 2525 4C T25
TTEL 2525 4C T25
1700.00
2040.00
TTEL 3232 5C T25
TTEL 3232 5C T25
3500.00
4200.00
TTEL 3232 3C T25
TTEL 3232 3C T25
3500.00
4200.00

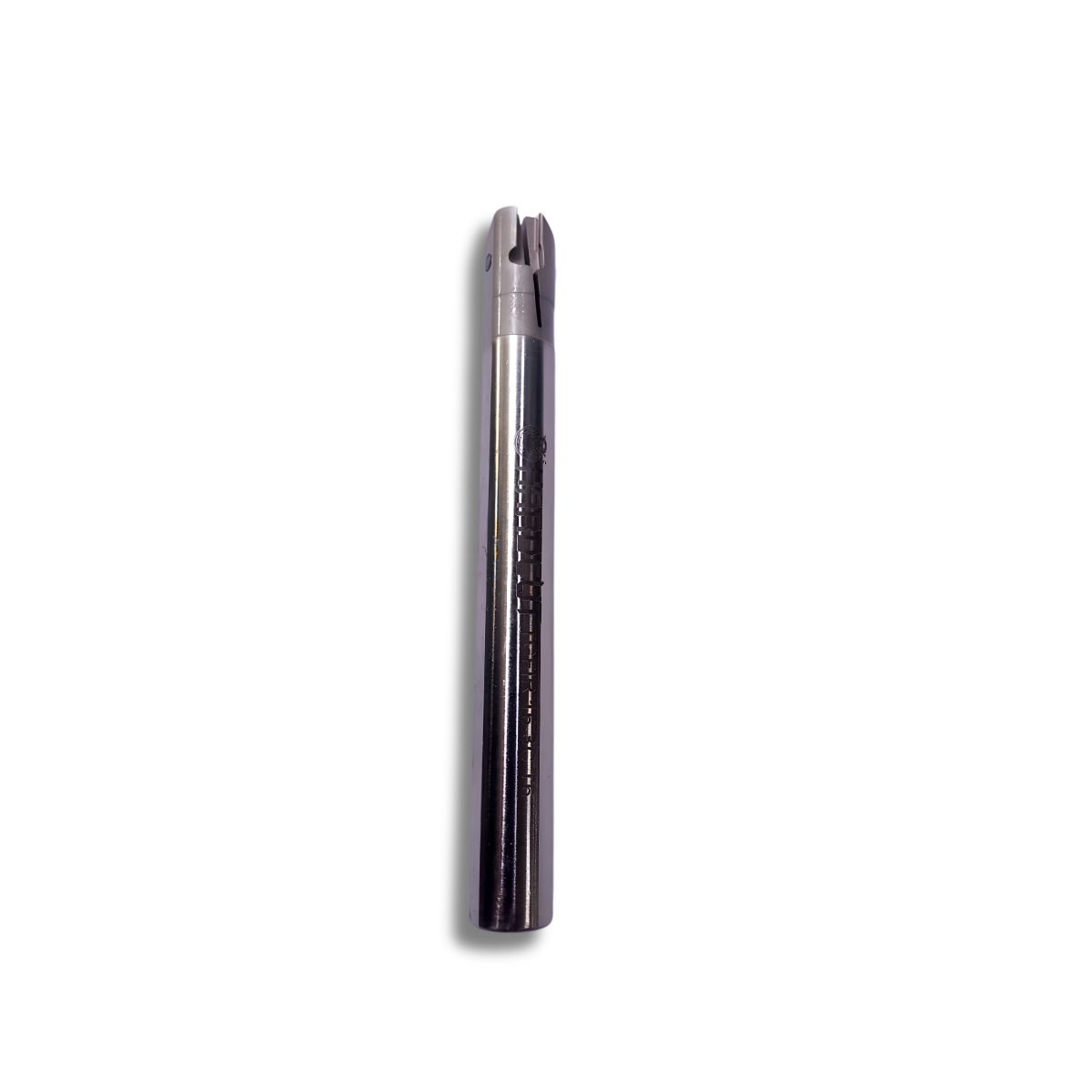

TGFIR16 3CT6
