  • TGFIR16 3CT6
  • TGFIR16 3CT6

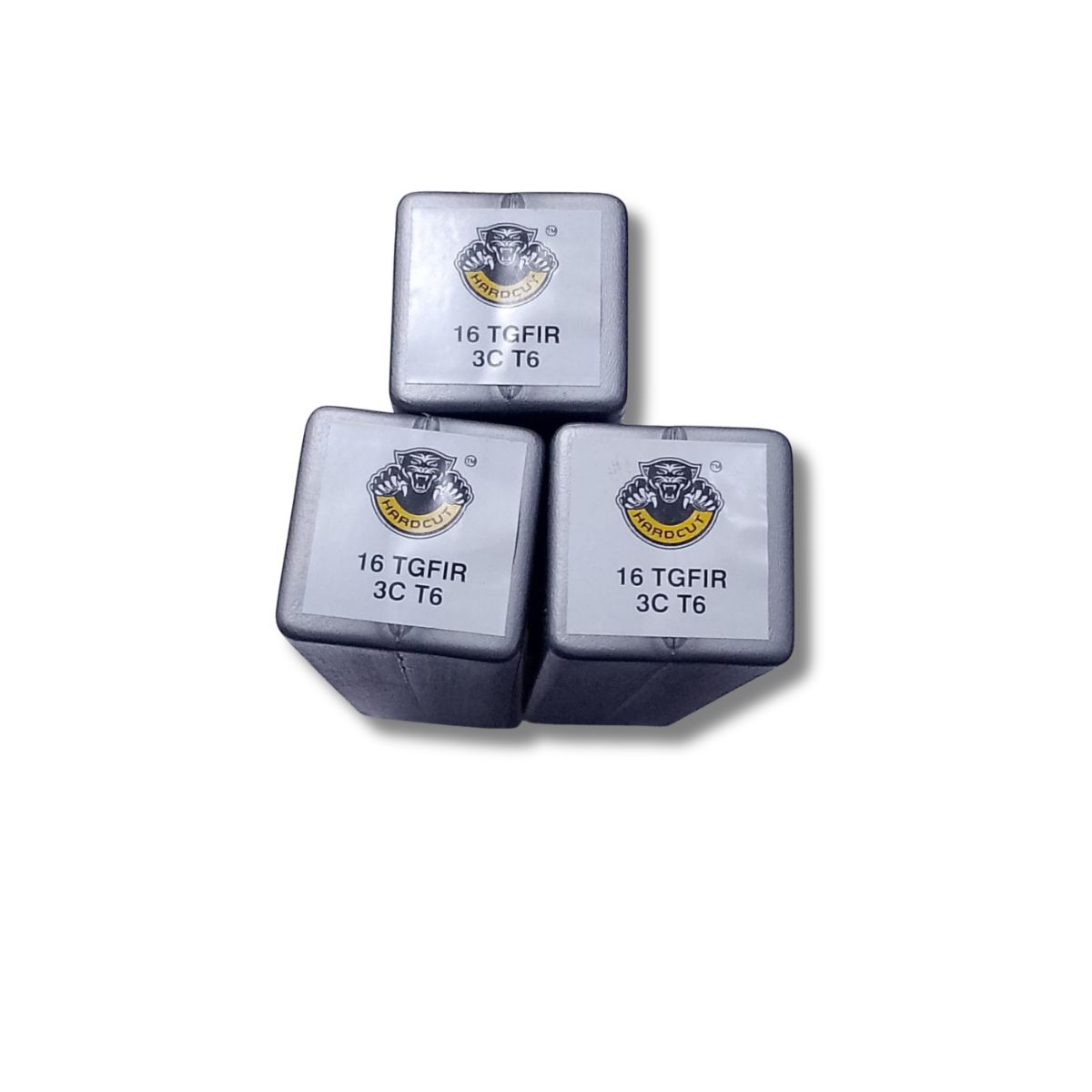

TGFIR16 3CT6

TGFIR16 3CT6

Brand: HARDCUT

The TGFIR16 3CT6 is an internal lathe boring bar with built-in coolant holes, designed specifically to hold 3 mm wide Top-Grip or Cut-Grip indexable inserts for deep face grooving, internal grooving, and turning operations.

₹2300.00

₹2300.00

Share on:
product details
1. Technical Code Breakdown

  • TG: Designates compatibility with Top-Grip (or similar dual-function cut/groove) profiling insert geometries.

  • F: Indicates Face Grooving capability alongside traditional internal processing.

  • I: Identifies the tool type as an Internal Boring Bar / Holder.

  • R: Specifies a Right-Hand tool cutting orientation.

  • 16: Designates a 16 mm shank diameter (fitting standard CNC lathe turrets and blocks).

  • 3: Indicates the target insert width specification (3.0 mm).

  • C: Confirms an integrated Internal Coolant Hole channeled directly to the cutting edge for swift chip evacuation.

  • T6: Specifies a maximum groove depth capacity of 6 mm.


2. Key Attributes & Design

  • Chip Management: The internal coolant system forces high-pressure fluid directly into tight internal grooves. This prevents chip bird-nesting and prolongs blade integrity.

  • Rigidity: Machined from high-alloy tool steel to suppress structural vibrations when working inside narrow bore configurations.

  • Dual Operation: Allows an operator to plunge-cut an internal groove and immediately transition into lateral turning without switching tool stations.


3. Industrial Applications

  • Target Processes: Deep face profiling, internal O-ring groove cutting, internal circlip recessing, and counterboring.

  • Common Workpieces: Hydraulic valve manifolds, automotive gear hubs, industrial pipe flanges, and mechanical transmission rings. Major premium tool brands like TaeguTec and Iscar manufacture tool styles matching this exact design spec.
