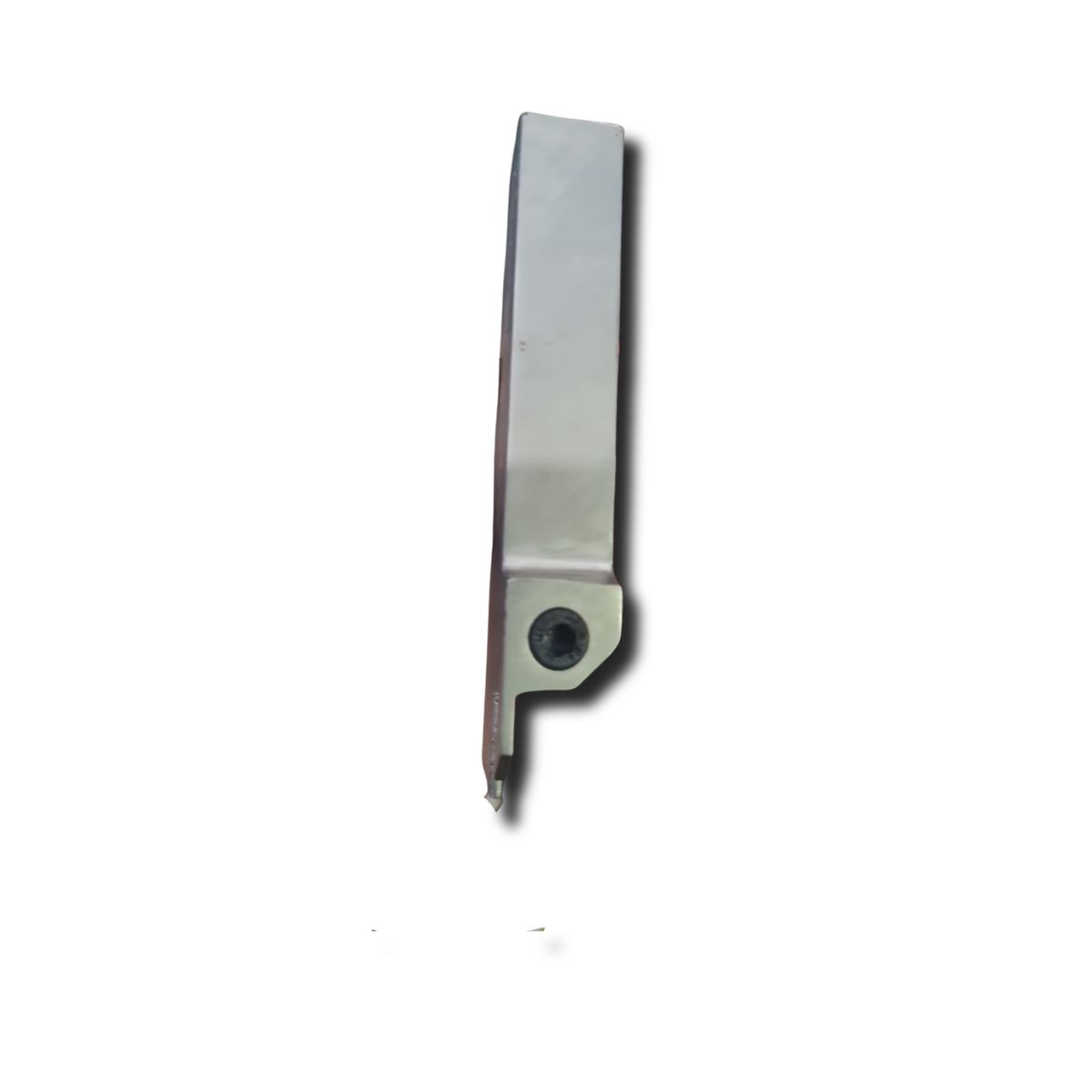

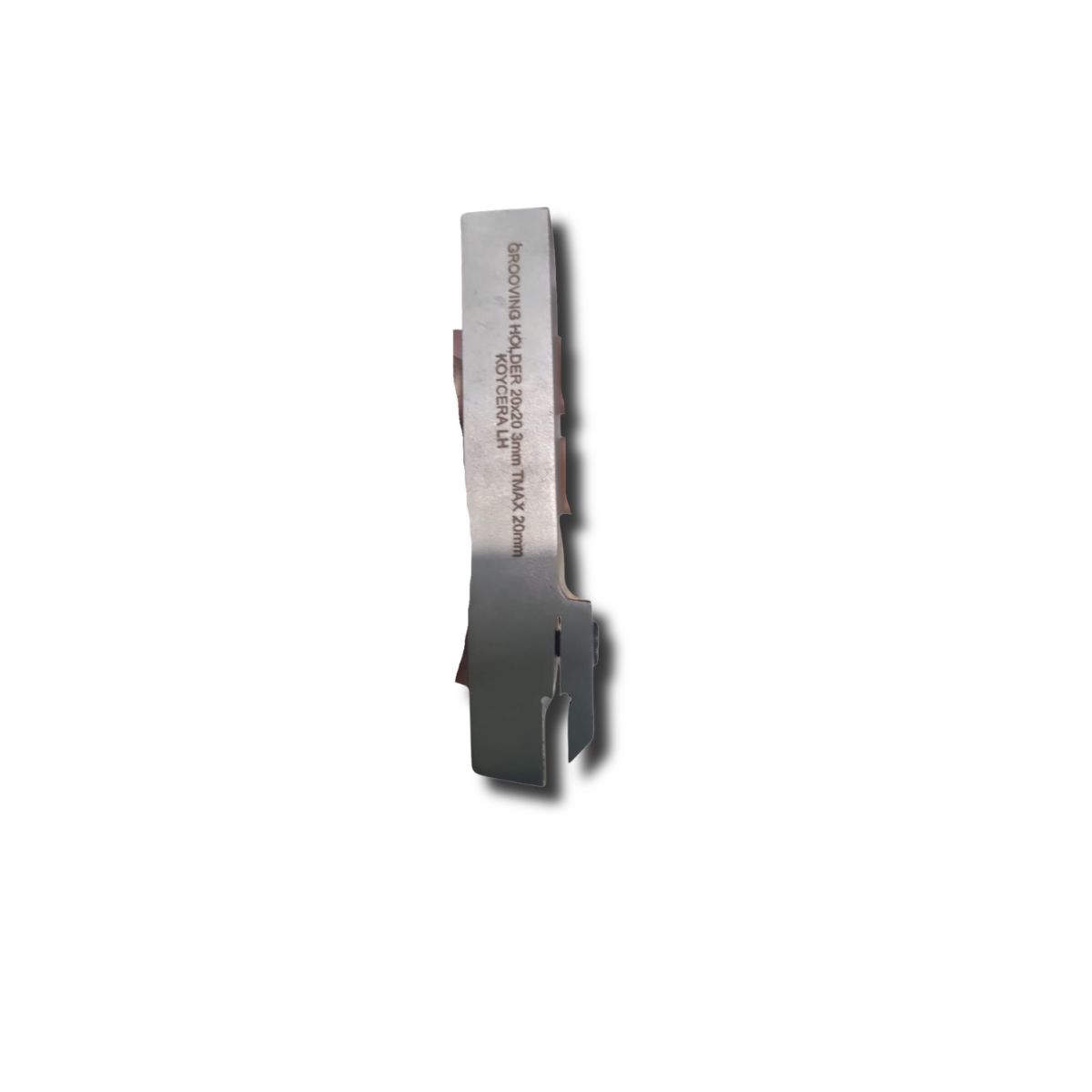

    • 20X20 3MM TMAX 20MM
    • 20X20 3MM TMAX 20MM
    20X20 3MM TMAX 20MM

    20X20 3MM TMAX 20MM

    Brand: KYOCERA

    The shank is a square shape measuring 20 mm wide by 20 mm high. This determines the size of the slot needed on your CNC lathe's tool turret to clamp the tool securely. The tool holder is precision-machined to accept a 3 mm wide insert (such as an MGMN 300). The resulting slot or part-off cut on your metal workpiece will be exactly 3 mm wide. This is the maximum distance the tool can plunge into a part before the main body of the tool holder hits the workpiece. It means you can cut a groove up to 20 mm deep, or part-off solid round bar stock up to 40 mm in total diameter.

    ₹1800.00

    ₹1800.00

    Share on:
    product details

    SHORT Version (Standard / Compact):

    Definition: A tool holder with a standard compact length, typically around 100 mm to 125 mm long overall.

    Purpose: Best for standard CNC lathe turrets where space is tight. It minimizes tool overhang, providing maximum rigidity and reducing vibration (chatter) during the cut.
    Tungsten Carbide Inserts

    LONG Version (Extended Reach):

    Definition: A tool holder with an elongated shank, typically 150 mm or longer overall.

    Purpose: Used when the tool needs to extend further past the turret to reach deep parts without the machine turret colliding with the chuck or workpiece.

    SHIPPING AND DELIVERY
    • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
    • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
    • You will receive a shipping confirmation email with tracking information once your order has been shipped.
    • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
    • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
    WARRANTY AND GURANTEE
    • Our machine tools comes with a warranty and guarantee against manufacturing defects.
    • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
    • The warranty and guarantee period is 15 days, starting from the date of purchase.
    • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
    • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
    • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
    • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
