  • APMT1135 PDER-H2 CP1120H
  • APMT1135 PDER-H2 CP1120H

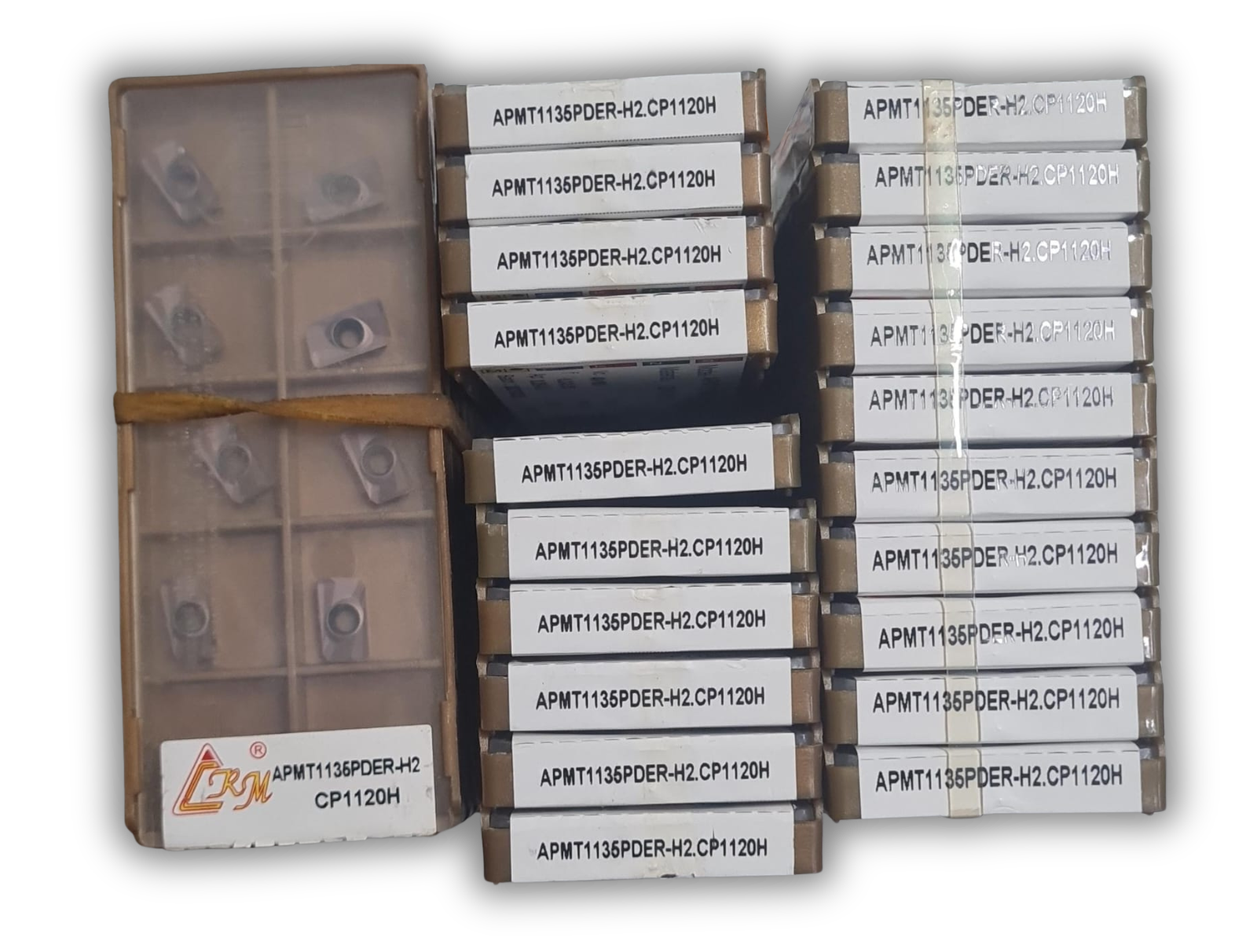

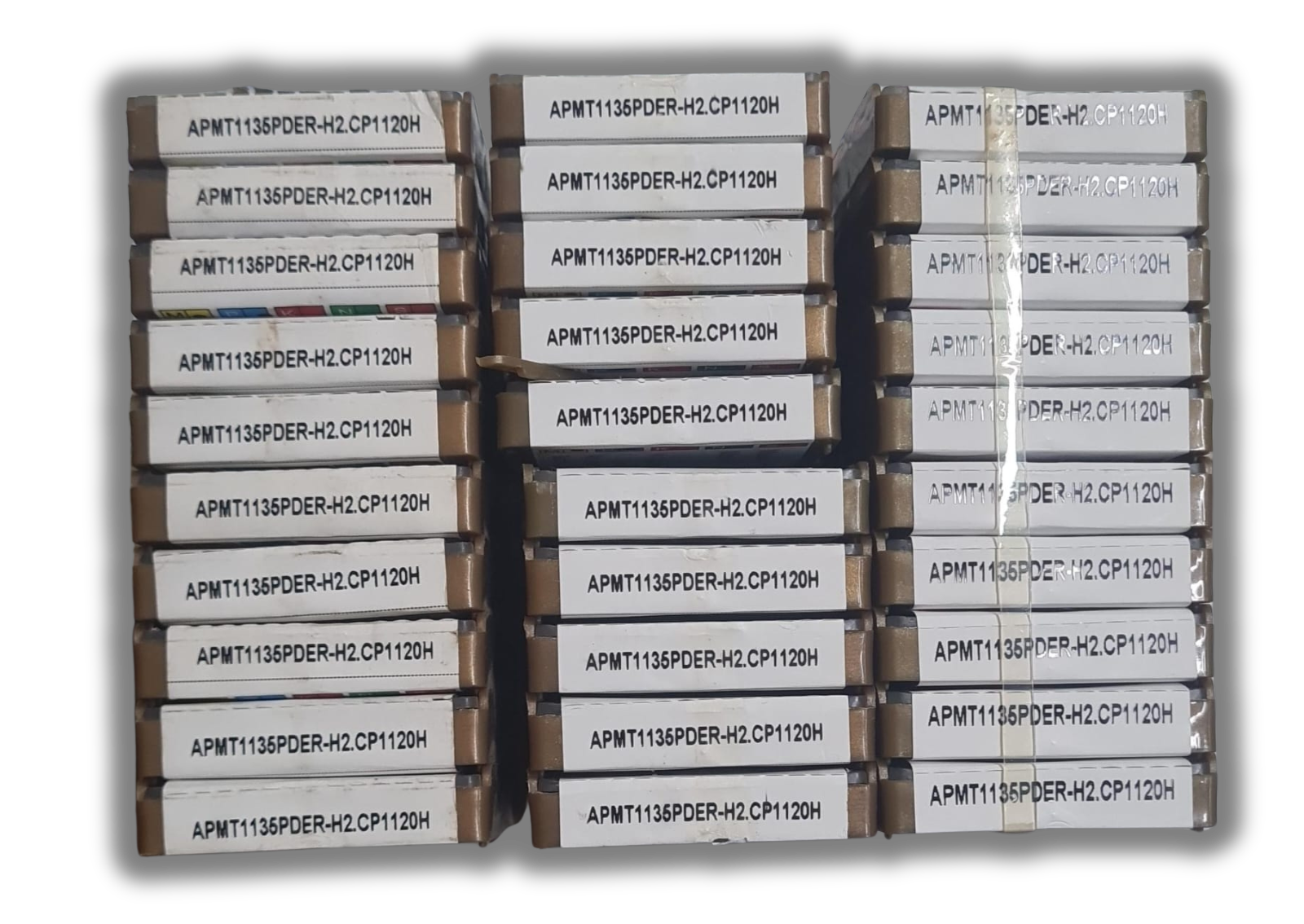

APMT1135 PDER-H2 CP1120H

APMT1135 PDER-H2 CP1120H

Brand: RM

The alphanumeric string APMT1135 PDER-H2 CP1120H specifies an industry-standard milling insert used for heavy-duty metalworking and CNC machining.

₹260.00

₹260.00

Share on:
product details
Technical Breakdown of the Part Number

  • A (Shape): Parallelogram-shaped insert with an 85-degree corner angle.

  • P (Clearance Angle): Features an 11-degree normal clearance angle, reducing friction against the workpiece wall.

  • M (Tolerance): Dictates standard metric manufacturing tolerances for thickness and indexing precision.

  • T (Hole & Chipbreaker Type): Indicates a single-sided insert featuring a cylindrical countersunk clamping hole and a specialized chip groove.

  • 1135 (Size): Represents a cutting edge length of 11 mm and an insert thickness of 3.5 mm.

  • PDER (Geometry): Denotes a right-handed cutting direction with a standard parallel land and a positive rake angle for smoother cutting actions.

  • -H2 (Chipbreaker Topology): A specific reinforced chipbreaker geometry designed for roughing to semi-finishing operations, providing excellent chip control in sticky or tough materials.

    • CP1120H (Material Grade): A specialized, high-performance PVD-coated carbide grade. The physical vapor deposition coating offers extreme heat resistance and edge toughness, optimized for machining stainless steels, hardened steels, and high-temperature alloys.

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.

You May Also Like

LNMX0607ZER-HJH3135
LNMX0607ZER-HJH3135
750.00
900.00
CNMG 12 04 08-MR 2025 CNMG 432-MR 2025
CNMG 12 04 08-MR 2025 CNMG 432-MR 2025
900.00
1080.00
TCMT 16T3 08-KRH13A TCMT 3(2.5)2-KR H13A
TCMT 16T3 08-KRH13A TCMT 3(2.5)2-KR H13A
600.00
720.00

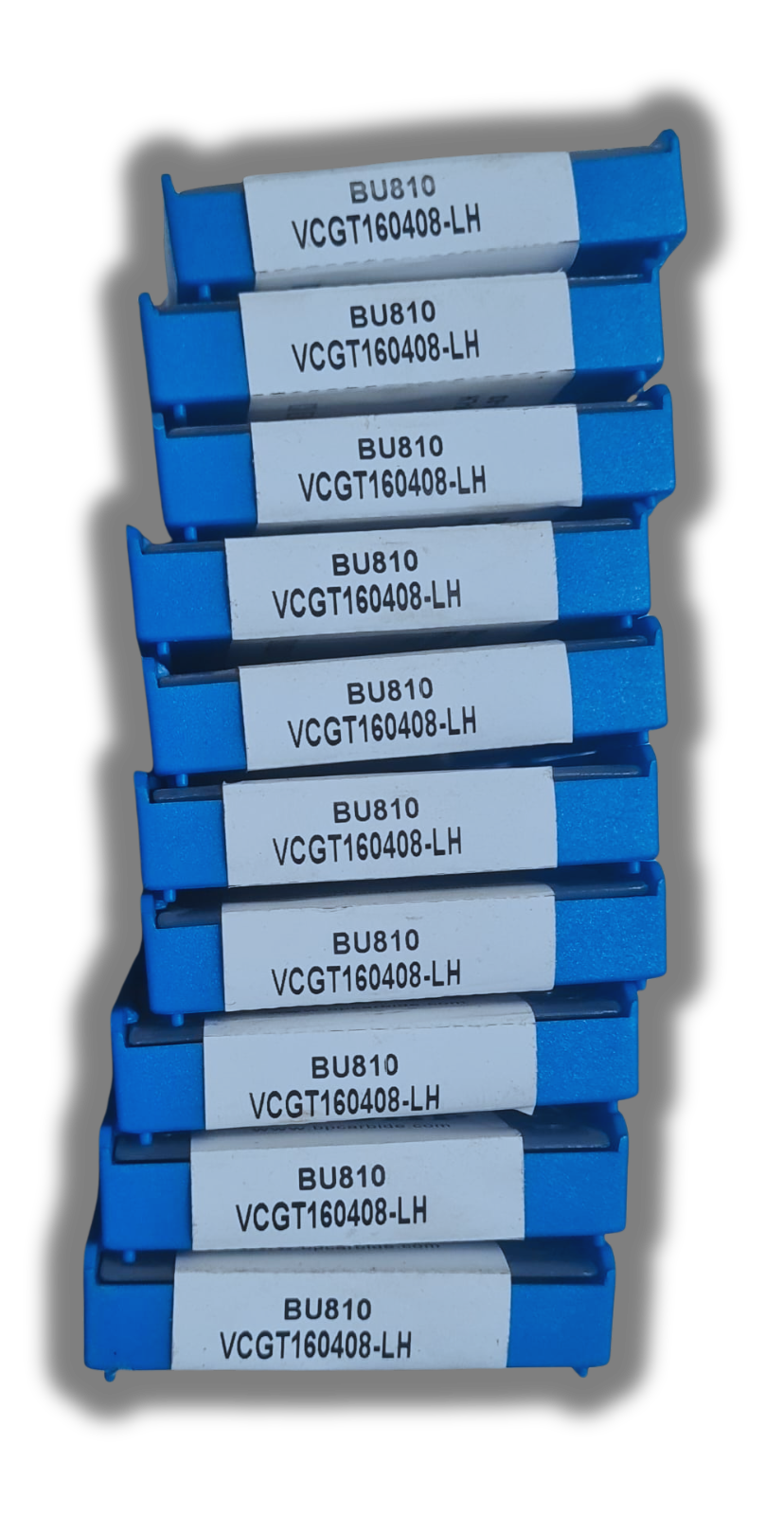

BU810VCGT160408-LH
