DCKNL 2525 M19

DCKNL 2525 M19

Brand: SUPER METAL

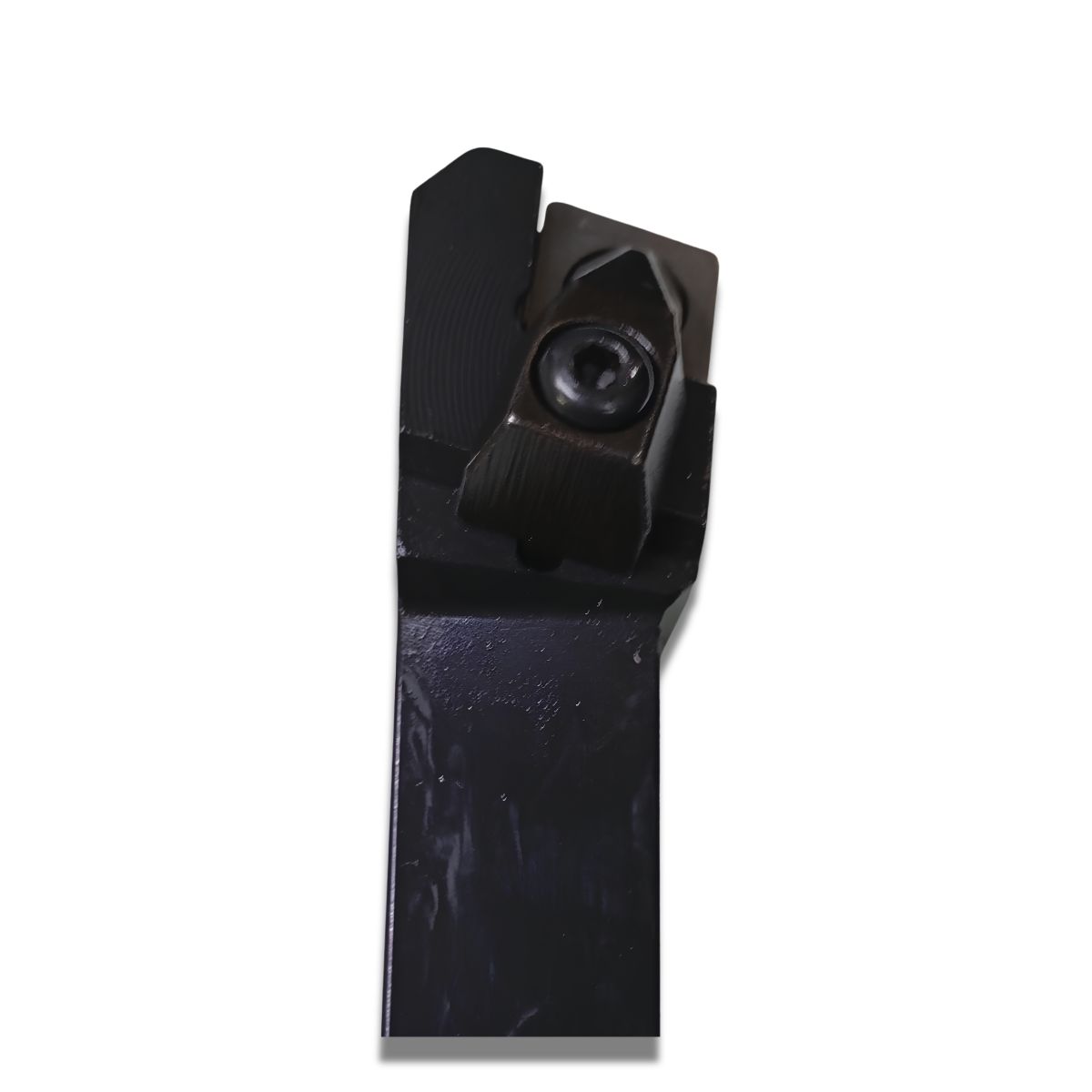

DCKNL 2525 M19 is an indexable external turning tool holder engineered for heavy-duty metal removal, roughing, and profiling on CNC and manual lathes.

₹2600.00

₹2600.00

Share on:
product details
It is structured in strict compliance with the international ISO 5610 standard, where the alphanumeric code establishes these exact mechanical specifications:

  • D: Clamping system type (Double Clamp mechanism that fixes the insert from both the top face and into its center hole to ensure maximum anti-vibration stability).

  • C: Master pocket orientation (Holds an 80° Rhombic / Diamond-shaped indexable turning insert).

  • K: Toolholder style / Approach angle (Provides a 75° side cutting edge approach angle, ideal for high-depth-of-cut longitudinal turning with excellent radial chip redirection).

  • N: Insert clearance profile (0° negative normal clearance rake angle for deploying heavy-walled, double-sided inserts).

  • L: Operational tracking alignment (Left-Hand cutting direction configuration).

  • 2525: Shank cross-sectional size (25 mm width × 25 mm height metric square steel shank).

  • M: Tool length identification letter (Indicates a standardized overall body length of 150 mm).

  • 19: Pocket seat boundary size (Calibrated explicitly to carry size 19 inserts, matching a 19.05 mm (3/4") inscribed circle diameter).

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
