DWLNR 2525 M08

DWLNR 2525 M08

Brand: SUPER METAL

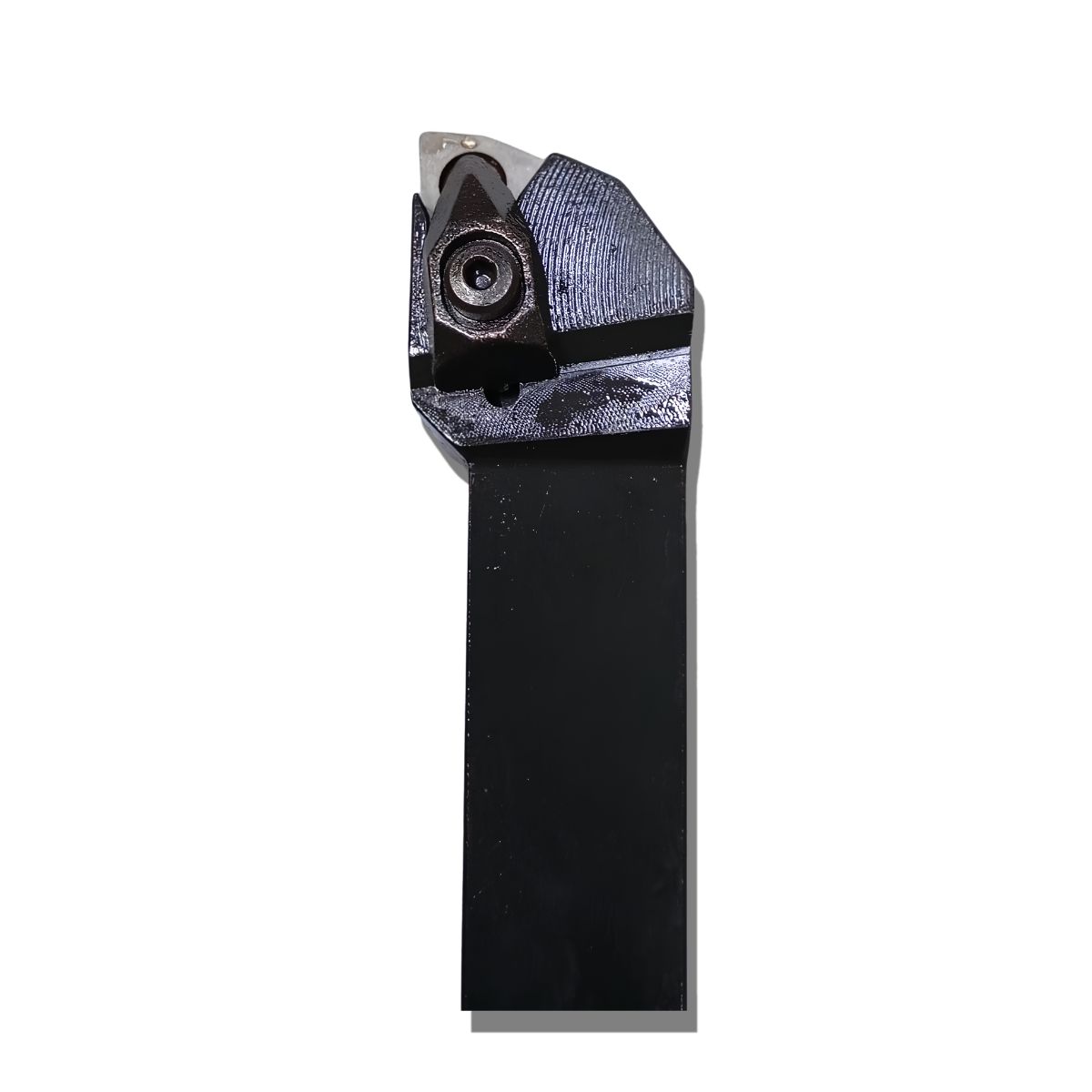

DWLNR 2525 M08 is an indexable external turning tool holder designed for CNC and manual lathe machining. It is manufactured according to the international ISO 5610 standard.

₹1500.00

₹1500.00

Share on:
product details

D: Clamping system (Double Clamp using a top clamp and pin for maximum rigidity).
W: Insert shape (Accepts a 80° Trigon / hexagon-shaped turning insert).
L: Approach angle (95° cutting edge angle for facing and longitudinal turning).
N: Insert clearance angle (0° negative clearance rake for robust cutting edges).
R: Cutting direction (Right-Hand tool orientation).
2525: Shank dimensions (25 mm width × 25 mm height square profile shank).
M: Tool length (Standard body length of 150 mm).
08: Insert size (Machined to fit inserts with an 8 mm cutting edge length).

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
