  • PSDNN 3232 P19
  • PSDNN 3232 P19

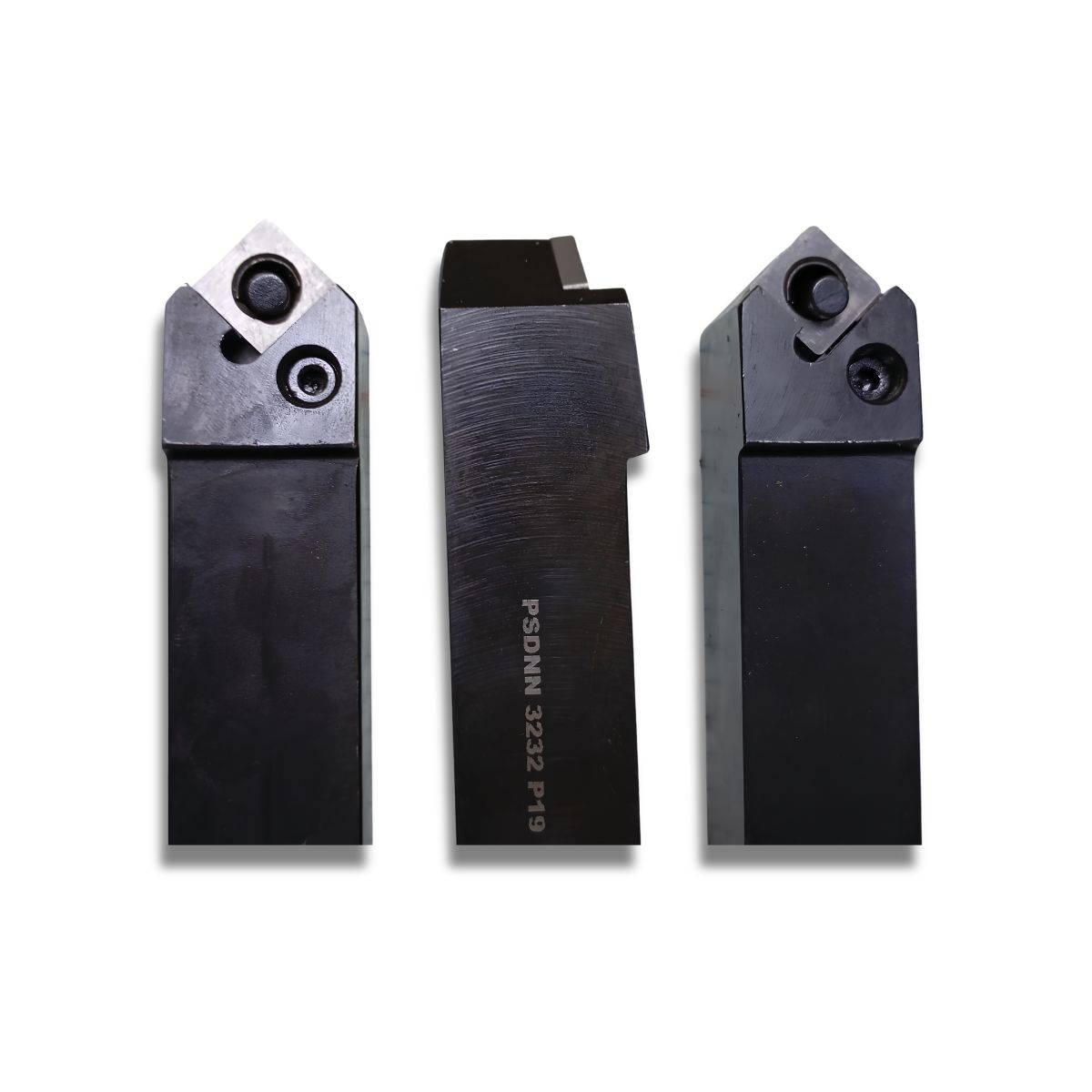

PSDNN 3232 P19

PSDNN 3232 P19

Brand: TOOLFARM

PSDNN 3232 P19 is an indexable external turning tool holder designed for highly stable, heavy-duty roughing and profiling operations on manual and CNC lathes.

₹3500.00

₹3500.00

Share on:
product details

Manufactured strictly in accordance with the international ISO 5610 designation standard, its alphanumeric code defines its exact structural profile:

R.S. Hughes
P: Clamping system type (Lever Lock style mechanism, utilizing an internal lever to pull the insert back tightly into the pocket for maximum top-face clearance).
S: Insert shape (90° Square indexable insert profile).
D: Toolholder style / Approach angle (Provides a 45° side cutting edge approach angle, distributing cutting forces evenly).
N: Insert clearance angle (0° negative clearance rake allowing for highly robust, double-sided inserts).
N: Cutting direction (Neutral tool orientation, meaning it can cut left-to-right, right-to-left, or face toward the center axis).
3232: Cross-sectional envelope size (32 mm width × 32 mm height square profile steel shank).
P: Tool length identification letter (Indicates a standardized overall body length of 170 mm).
19: Pocket seat boundary size (Engineered explicitly for size 19 inserts, featuring a 19.05 mm (3/4") inscribed circle diameter).

webshop.iscar.in
 +4
Mechanical Sizing Profile
Functional Width (WF): 16 mm
Head Length (LH): 40.4 mm
Orthogonal Rake Angle (GAMO): -6°
Inclination Angle (LAMS): -6

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
