  • PSKNR 3232 P19
  • PSKNR 3232 P19
  • PSKNR 3232 P19
PSKNR 3232 P19

PSKNR 3232 P19

Brand: TOOLFARM

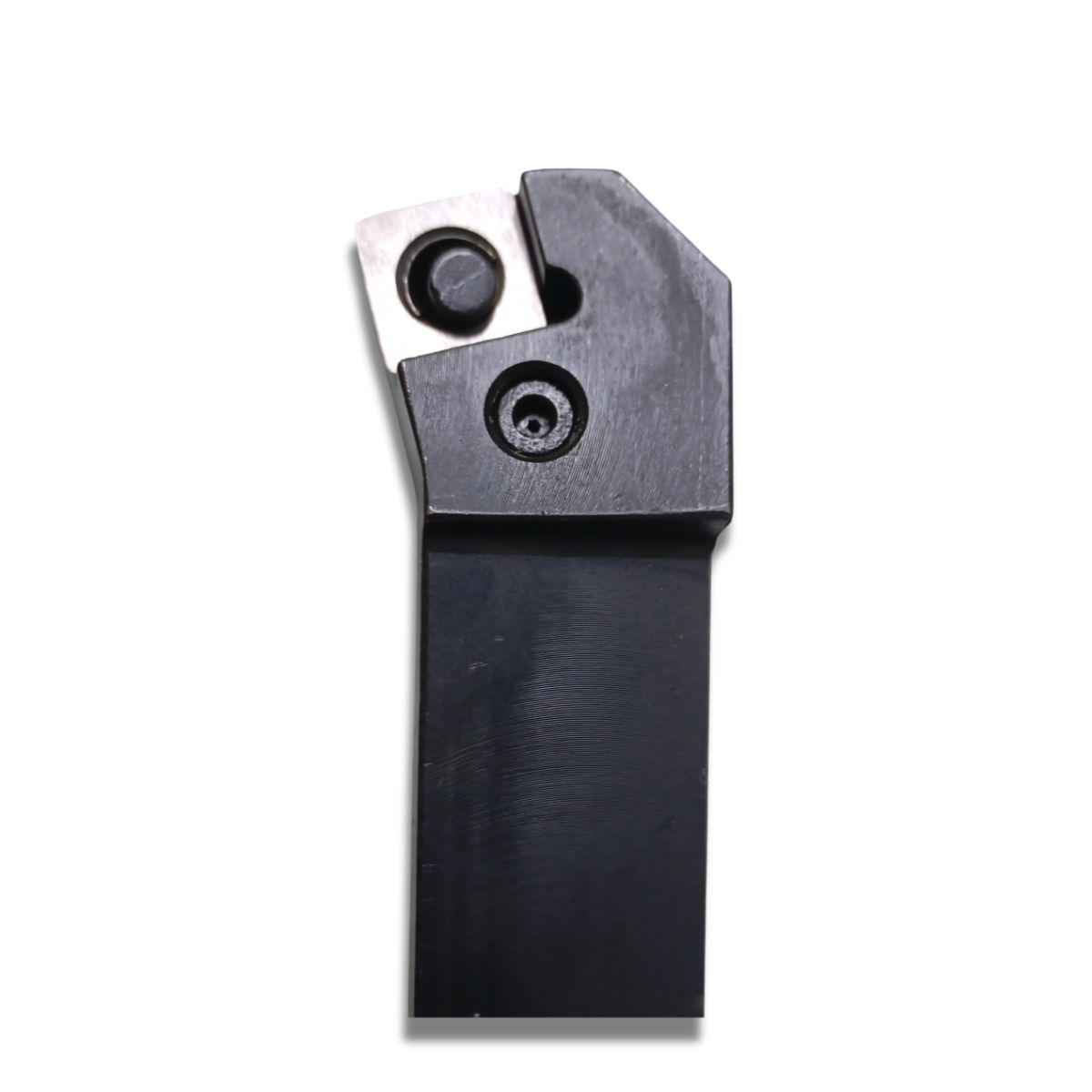

PSKNR 3232 P19 is an indexable external turning tool holder designed for heavy-duty metal removal on manual and CNC lathes Clamping system type (Lever Lock style mechanism, which uses an internal lever to securely pull the insert back tightly into its pocket). S: Insert shape (90° Square indexable insert profile). K: Toolholder style / Approach angle (75° approach angle designed for facing and heavy longitudinal turning with multi-edge utility).

₹3500.00

₹3500.00

Share on:
product details
Manufactured under the global ISO 5610 standard, the alphanumeric code indicates its exact structural profile and machining attributes:

  • P: Clamping system type (Lever Lock style mechanism, which uses an internal lever to securely pull the insert back tightly into its pocket).

  • S: Insert shape (90° Square indexable insert profile).

  • K: Toolholder style / Approach angle (75° approach angle designed for facing and heavy longitudinal turning with multi-edge utility).

  • N: Insert clearance angle (0° negative clearance rake allowing for double-sided inserts with maximum cutting edge strength).

  • R: Cutting direction (Right-Hand tool operation alignment).

  • 3232: Cross-sectional envelope size (32 mm width × 32 mm height robust square profile shank).

  • P: Tool length identification letter (Indicates an overall tool holder length of 170 mm).

  • 19: Pocket seat boundary size (Engineered explicitly to fit size 19 inserts, with a 19.05 mm (3/4") inscribed circle diameter).
