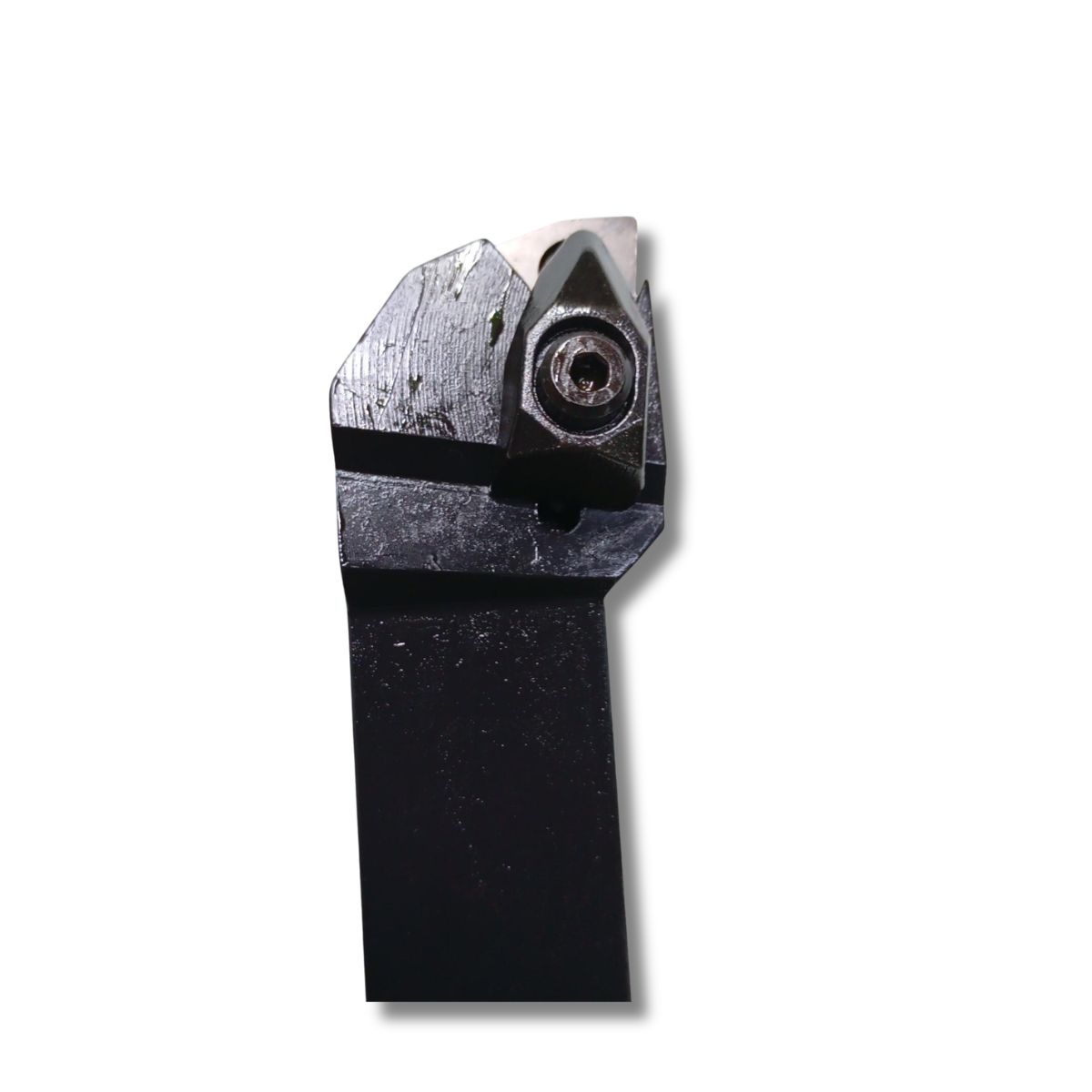

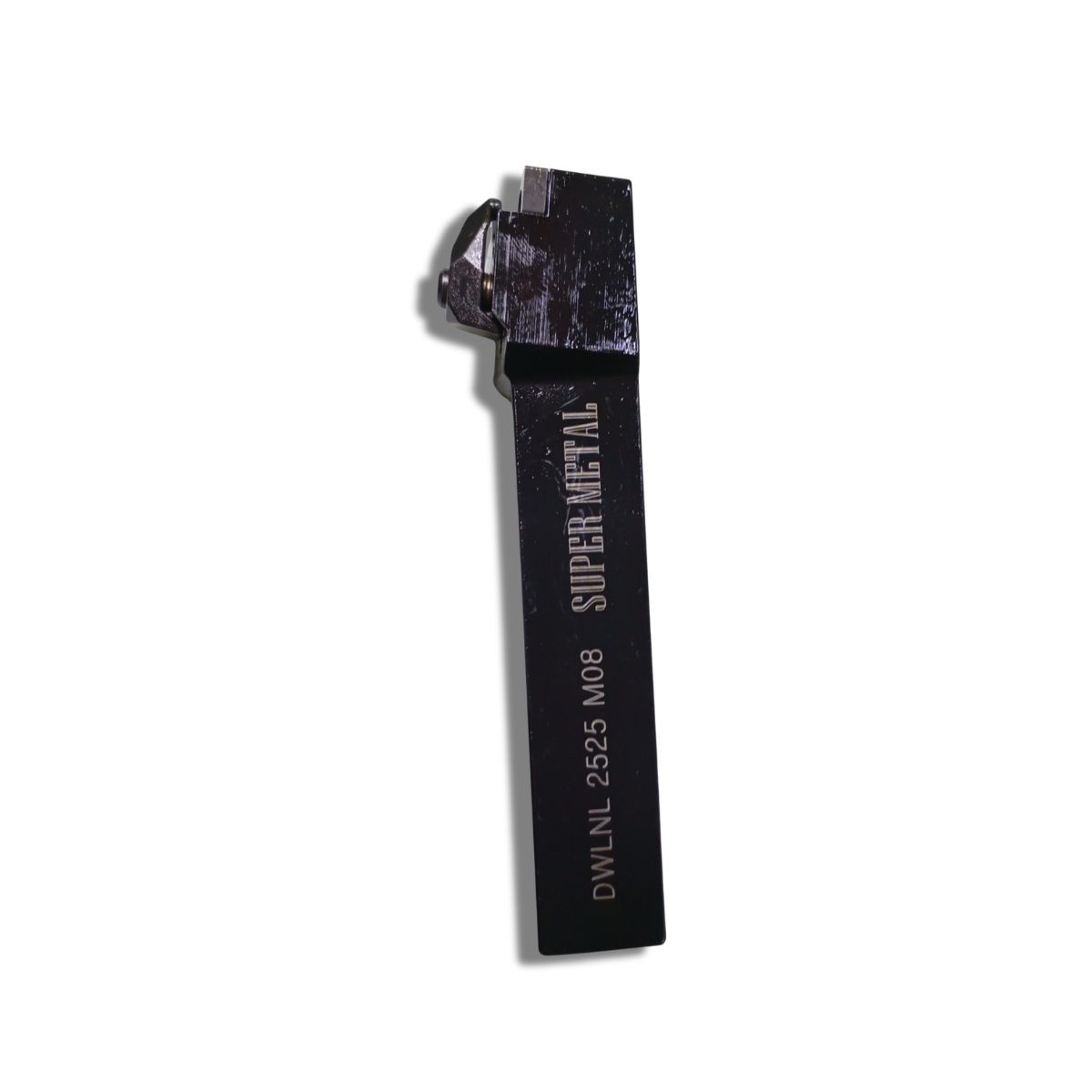

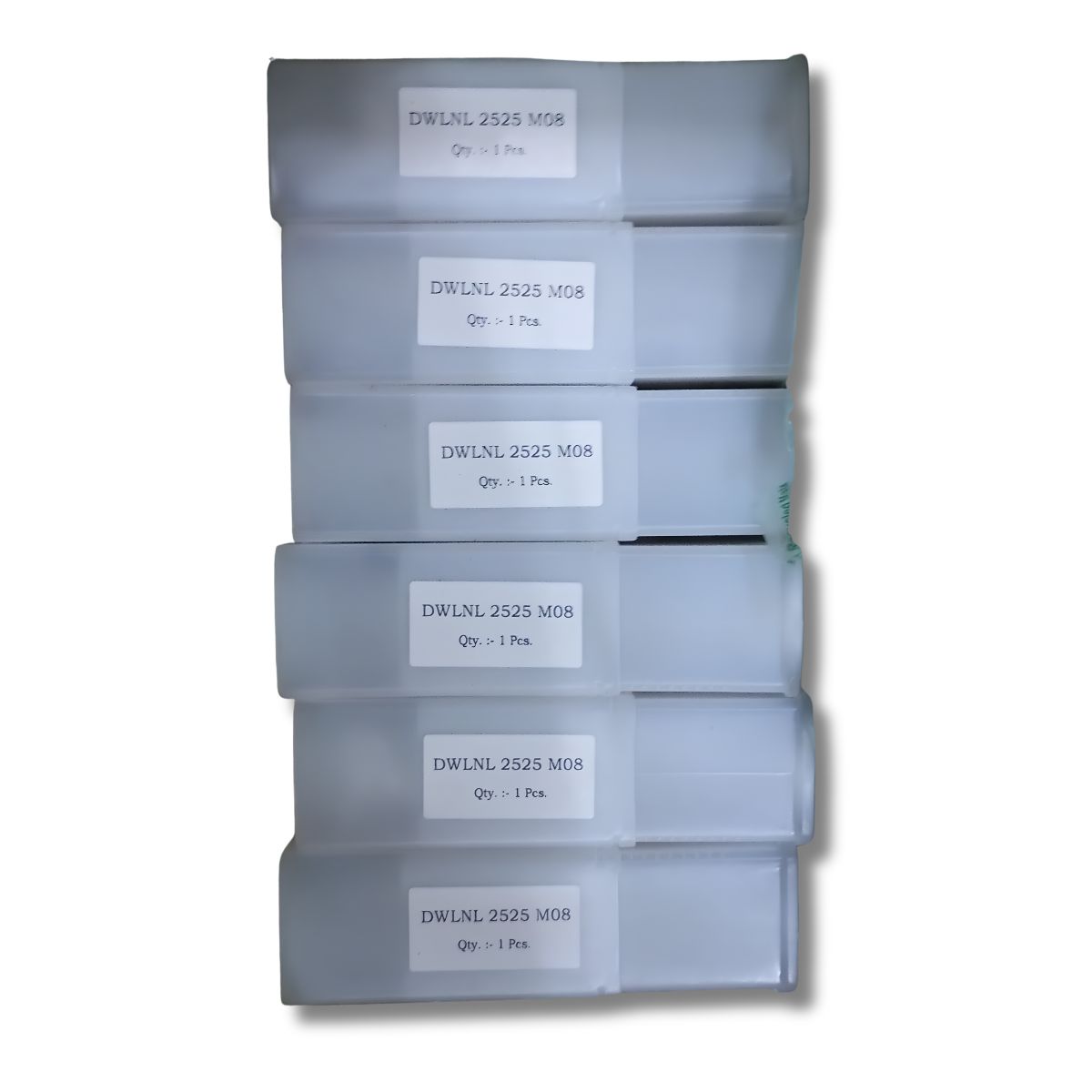

DWLNL 2525 M08

DWLNL 2525 M08

Brand: SUPER METAL

DWLNL 2525 M08 IS AN INDEXABLE EXTERNING TURNING TOOL HOLDER DESIGNED FOR CNC LATHE MACHINES.

₹1500.00

₹1500.00

Share on:
product details

IT FOLLOWS THE INTERNATIONAL ISO 5610 DESIGNATION SYSTEM. THE ALPHANUMERIC CODE REVEALS THESE GEOMETRIC SPECIFICATIONS:
D: CLAMPING SYSTEM TYPE (DOUBLE CLAMP THAT ANCHORS THE INSERT VIA BOTH A TOP CLAMP AND AN INTERNAL HOLE FOR MAXIMUM RIGIDITY).
W: INSERT GEOMETRY PROFILE (EXCLUSIVELY ACCEPTS AN 80° TRIGON / HEXAGON-SHAPED INDEXABLE INSERT).
L: TOOLHOLDER LAYOUT APPROACH ANGLE (95° APPROACH ANGLE DESIGNED FOR BOTH FACING AND LONGITUDINAL TURNING CLEARANCE).
N: INSERT CLEARANCE PROFILE (0° NEGATIVE CLEARANCE RAKE ANGLE REQUIRING DOUBLE-SIDED INSERTS FOR MAXIMUM EDGE STRENGTH).
L: CUTTING DIRECTION ALIGNMENT (LEFT-HAND OPERATIONAL ORIENTATION).
2525: SHANK CROSS-SECTION ENVELOPE (25 MM WIDTH × 25 MM HEIGHT SQUARE PROFILE SHANK).
M: TOTAL BODY LENGTH DIMENSION (STANDARDIZED AT AN OVERALL REACH OF 150 MM).
08: INSERT POCKET BOUNDARY SIZE (CALIBRATED ACCURATELY FOR AN 8 MM CUTTING EDGE LENGTH INSCRIBED CIRCLE).
CONSUMABLE COMPATIBILITY
THIS LEFT-HAND TOOL HOLDER IS MACHINED SPECIFICALLY TO CARRY Standard WNMG 0804 STYLE CARBIDE TURNING INSERTS (SUCH AS WNMG 080404, WNMG 080408, OR WNMG 080412 VARIANTS).
MAIN INDUSTRIAL APPLICATIONS
EXTERNAL OD PROFILE TURNING: DEPLOYED FOR AGGRESSIVE RAW METAL REMOVAL ON THE OUTER DIAMETERS OF ROTATING CYLINDRICAL WORKPIECES.
FACING CYCLES: CLEANS THE FLAT FRONT AXIAL FACE OF STOCK BARS ON CNC TURNING CENTERS

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.

You May Also Like

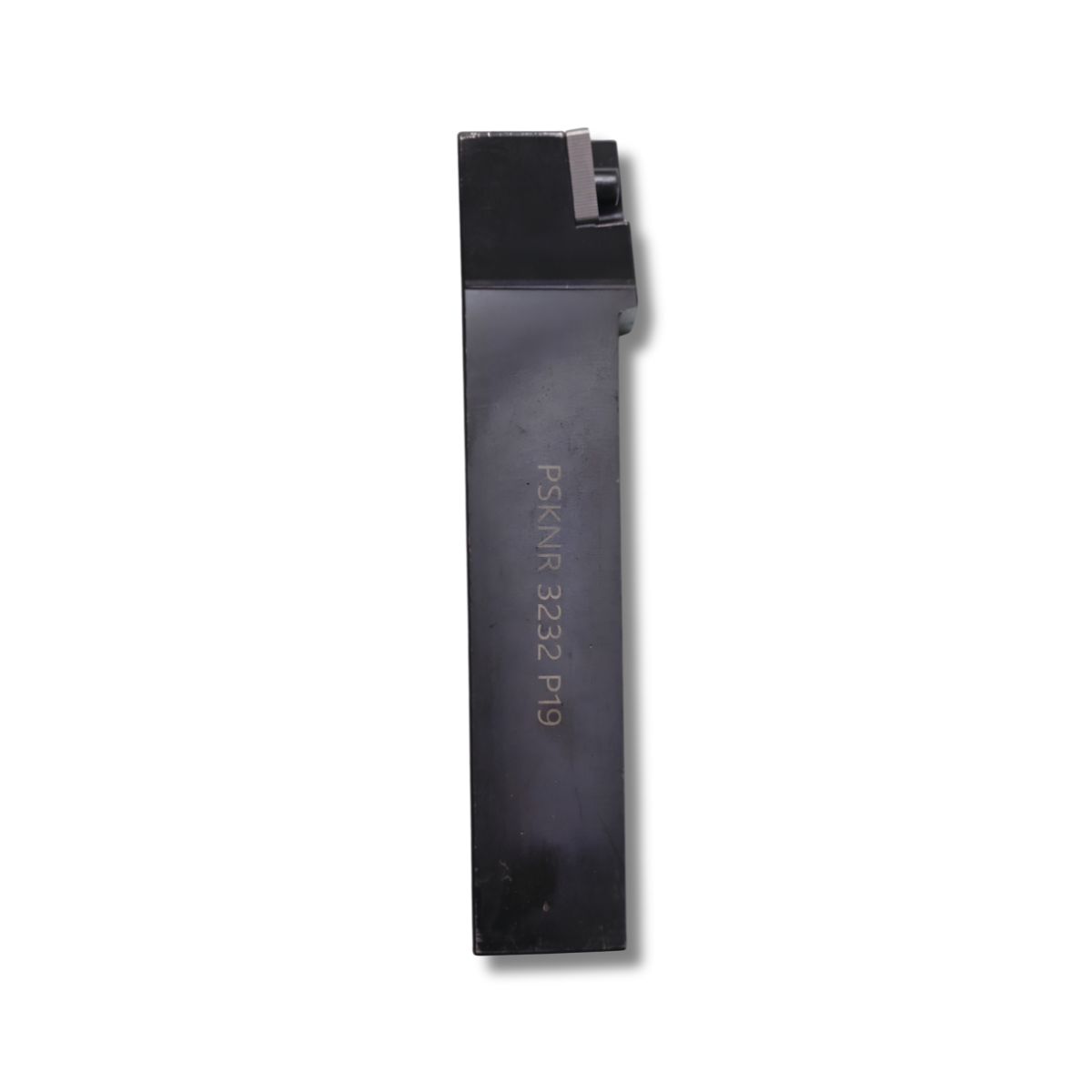

PSKNR 3232 P19
PSKNR 3232 P19
3500.00
4200.00

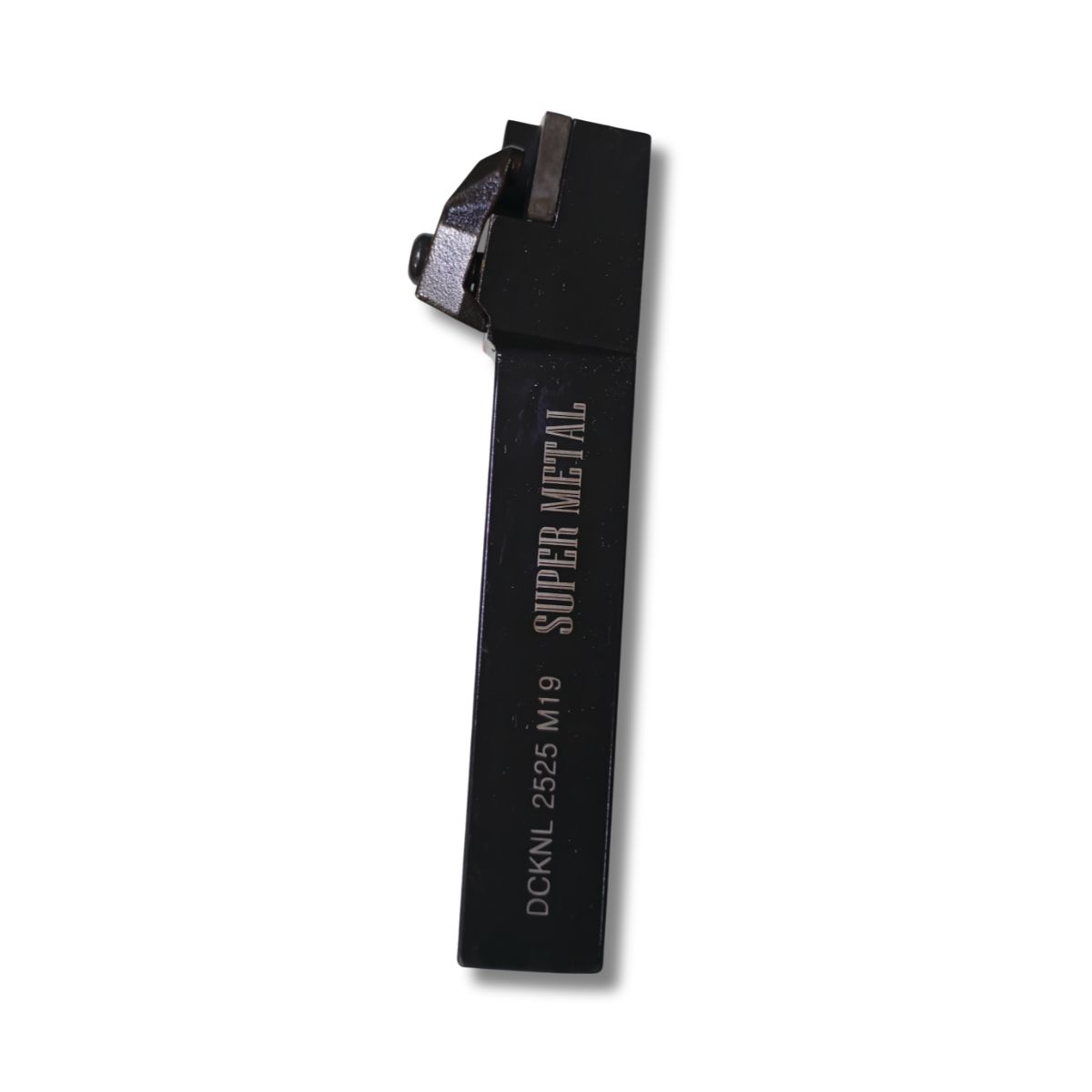

DCKNL 2525 M19
DCKNL 2525 M19
2600.00
3120.00

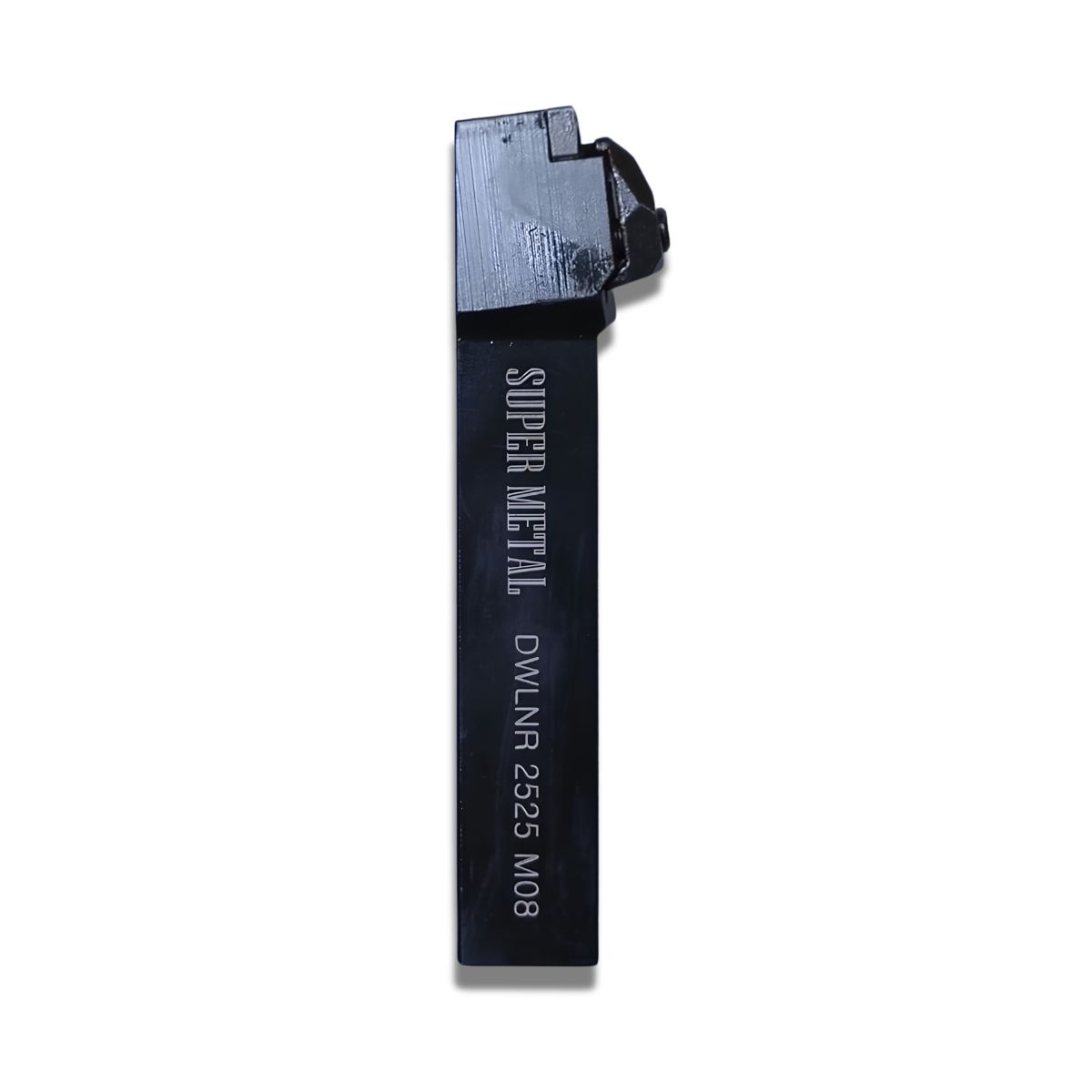

DWLNR 2525 M08
DWLNR 2525 M08
1500.00
1800.00

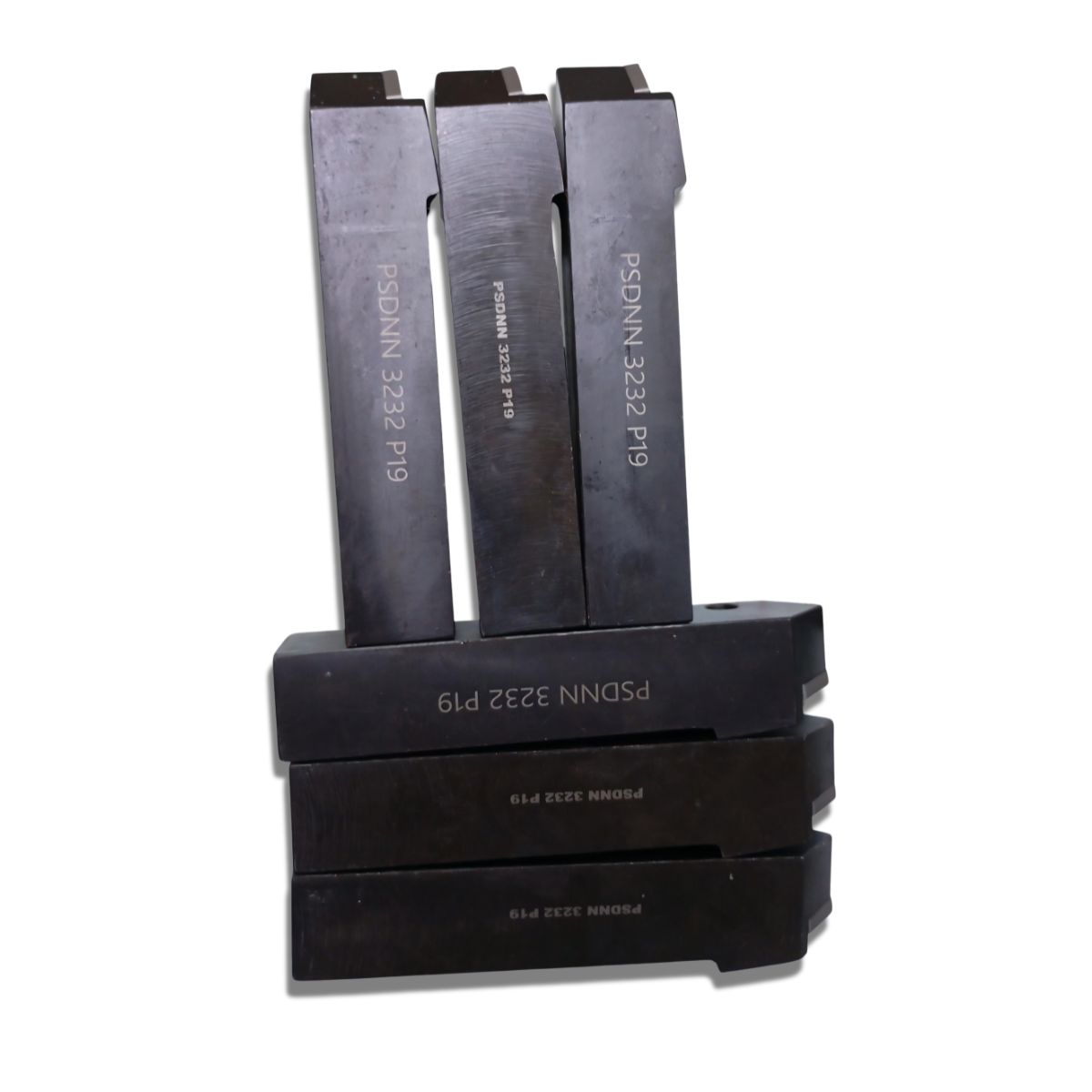

PSDNN 3232 P19
