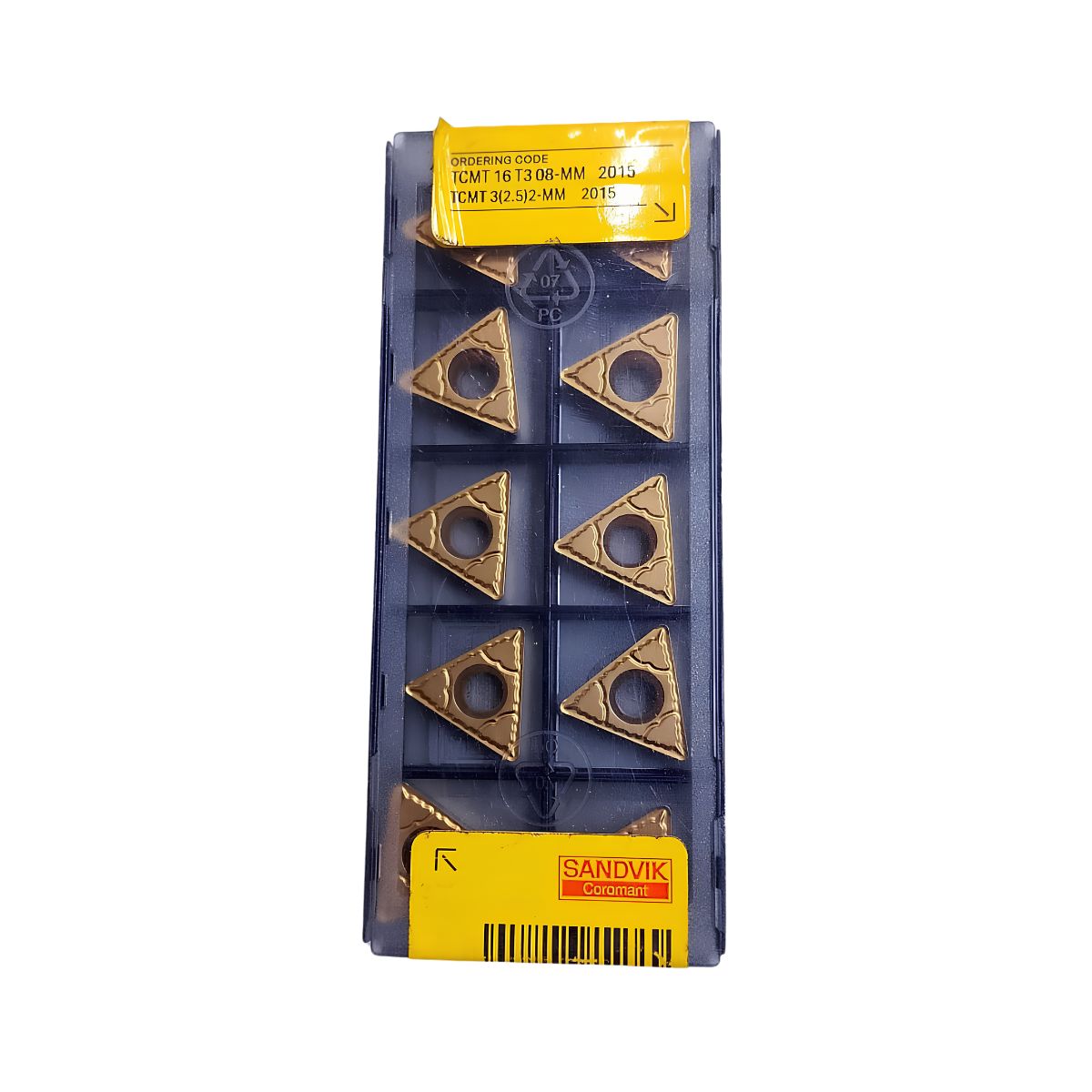

  • TCMT16 16 T3 08-MM 2015 TCMT3(2.5)2-MM
TCMT16 16 T3 08-MM 2015 TCMT3(2.5)2-MM

TCMT16 16 T3 08-MM 2015 TCMT3(2.5)2-MM

Brand: SANDVIK

The codes TCMT 16 T3 08-MM 2015 (ISO standard) and TCMT 3(2.5)2-MM 2015 (ANSI standard) represent the exact same Sandvik Coromant indexable carbide turning insert designed for medium machining.

₹700.00

₹700.00

Share on:
product details
  • -MM (Chip Breaker): This designates a medium-machining chip breaker optimized primarily for stainless steel cutting, focusing on excellent surface finishes during pre-machining cycles. [1, 2, 3, 4, 5]
  • 2015 (Carbide Grade): An optimized Sandvik Coromant grade featuring a specialized CVD wear-resistant coating. It is specifically engineered to handle heat and resist built-up edge formation when turning stainless steel (ISO M) and high-temperature alloys



Feature [1, 2, 3, 4, 5]ISO Code (TCMT 16 T3 08)ANSI Code (TCMT 3(2.5)2)Technical Specification

Shape (T)

T

T

Triangular (60° angle)

Clearance Angle (C)

C

C

7° positive clearance angle

Tolerances (M)

M

M

Manufacturer's standard tolerances

Fixing / Style (T)

T

T

Countersunk hole for screw clamping (40°–60°)

Cutting Edge Length

16 (16.5 mm)

3 (3/8" Inscribed Circle)

Inscribed Circle (IC) = 9.525 mm (0.375")

Thickness

T3 (3.97 mm)

2.5 (2.5/16" or 0.156")

Insert Thickness = 3.9688 mm (0.1563")

Corner Radius

08 (0.8 mm)

2 (2/64" or 0.031")

Nose Radius = 0.7938 mm (0.0313")
