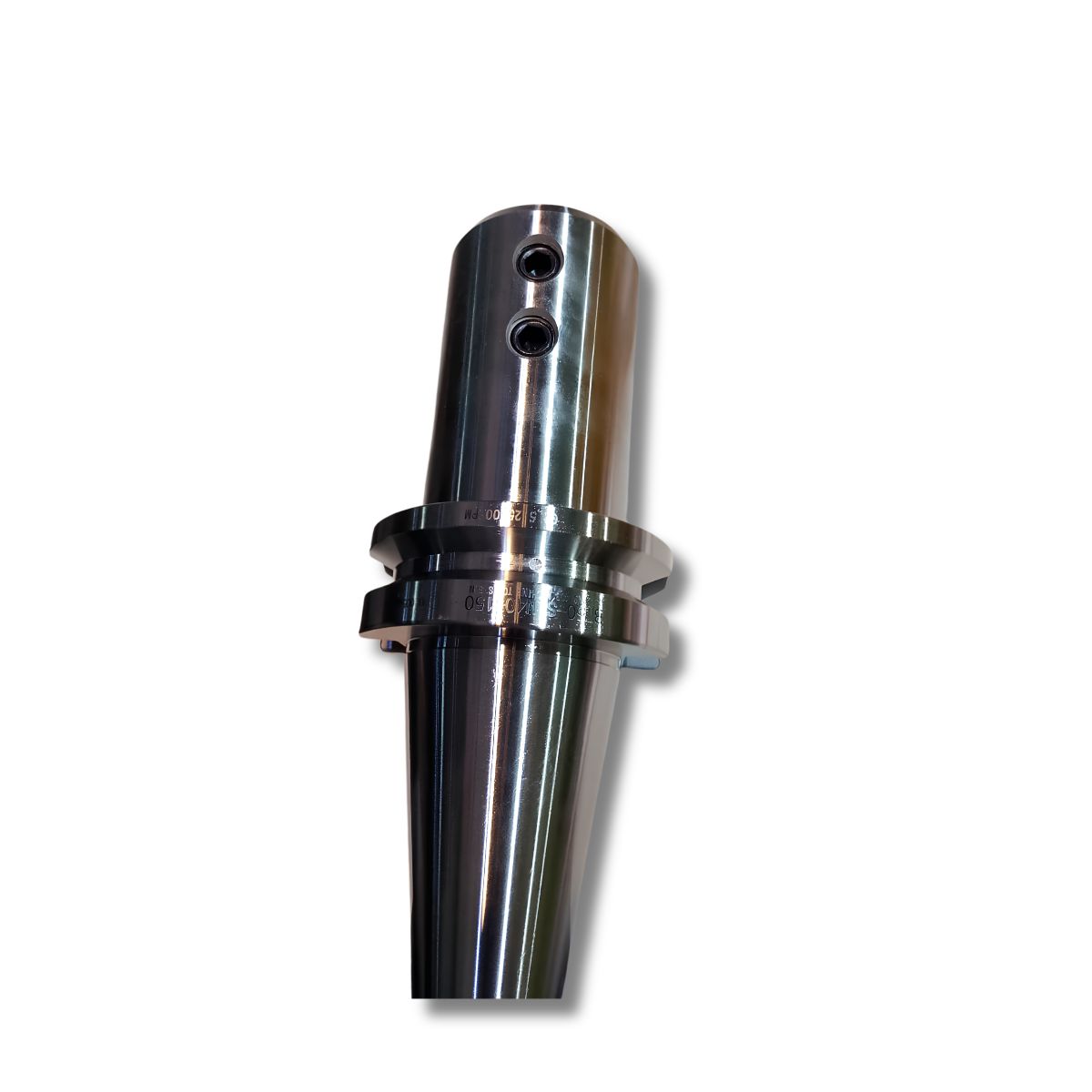

The BT50 SLN40 tool holder is an essential hardware standard engineered for heavy stock removal on massive machining centers.
The "BT50" prefix denotes a robust 7:24 steep taper configuration built to manage large torsional loads.
This large taper architecture provides substantial structural surface contact to completely eliminate tool deflection during operations.
The "SLN" segment defines its status as a Side Lock End Mill Adaptor featuring a classic Weldon clamping system.

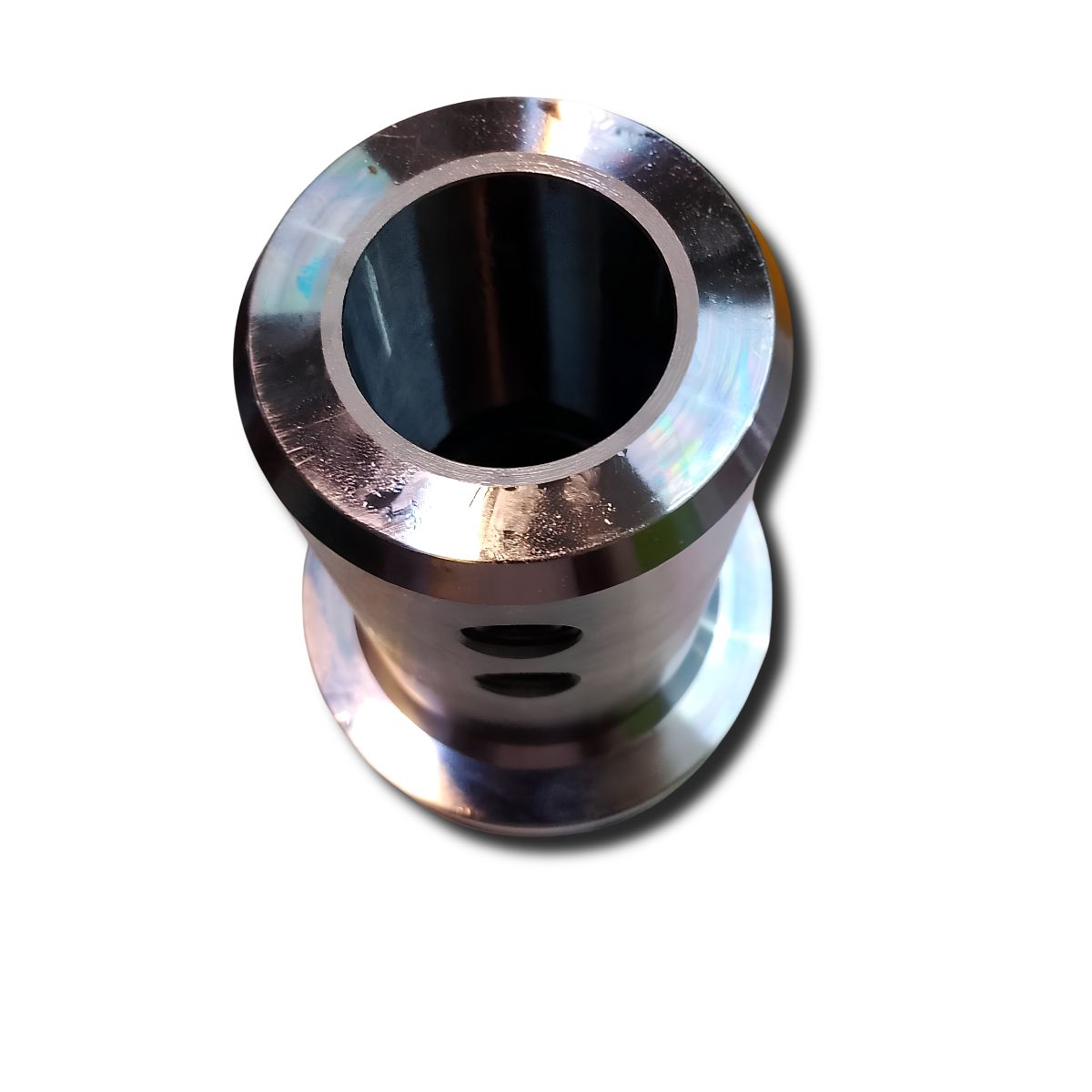

The internal bore is ground to a precise 40 mm size ("40") to house large cylindrical-shank cutting tools.
It utilizes high-tensile dual locking screws that clamp directly against standard flatted tool shanks to ensure absolute grip.
This mechanical configuration prevents the cutting tool from slipping or pulling entirely out of the holder under pressure.
The "150" designation specifies an elongated 150 mm gage length, measuring from the spindle face to the nose.
This long design allows tools to perform deep vertical milling operations inside complex pocketing matrices or structural cavities.
The body is forged from high-tensile alloy case-hardened steel and ground to maintain a hard exterior.
A hard case finish ensures the tool holder resists physical wear from continuous machine tool changes.
It is precision-balanced to maintain low vibration characteristics during modern high-speed spindle operations.
Machinists rely on side lock holders to achieve unmatched tool rigidity when taking aggressive face or shoulder cuts.
It is heavily utilized across heavy industrial sectors including commercial aerospace, large automotive mold bases, and energy components.
Ultimately, this BT50 adaptor offers production facilities high mechanical reliability and excellent component safety.
