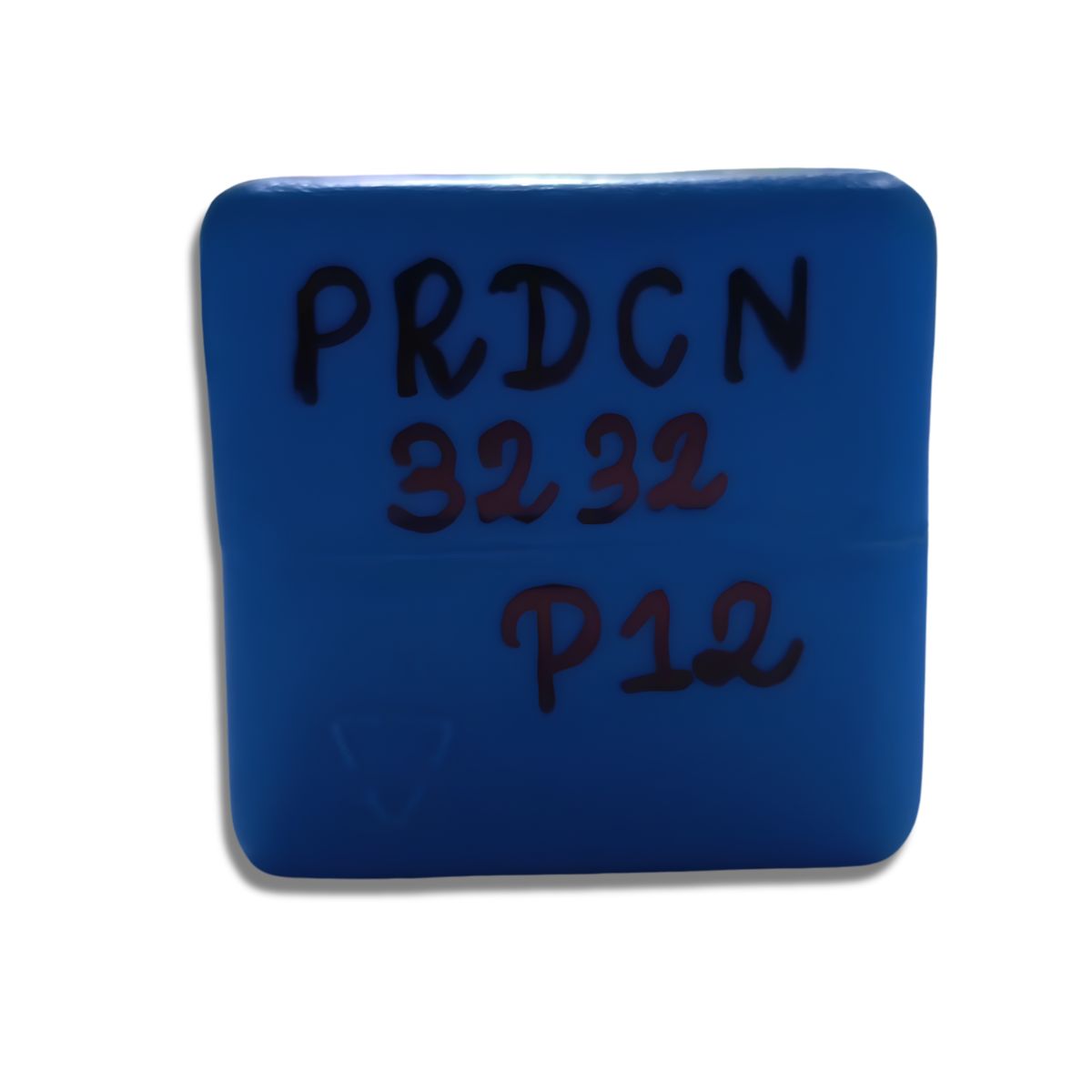

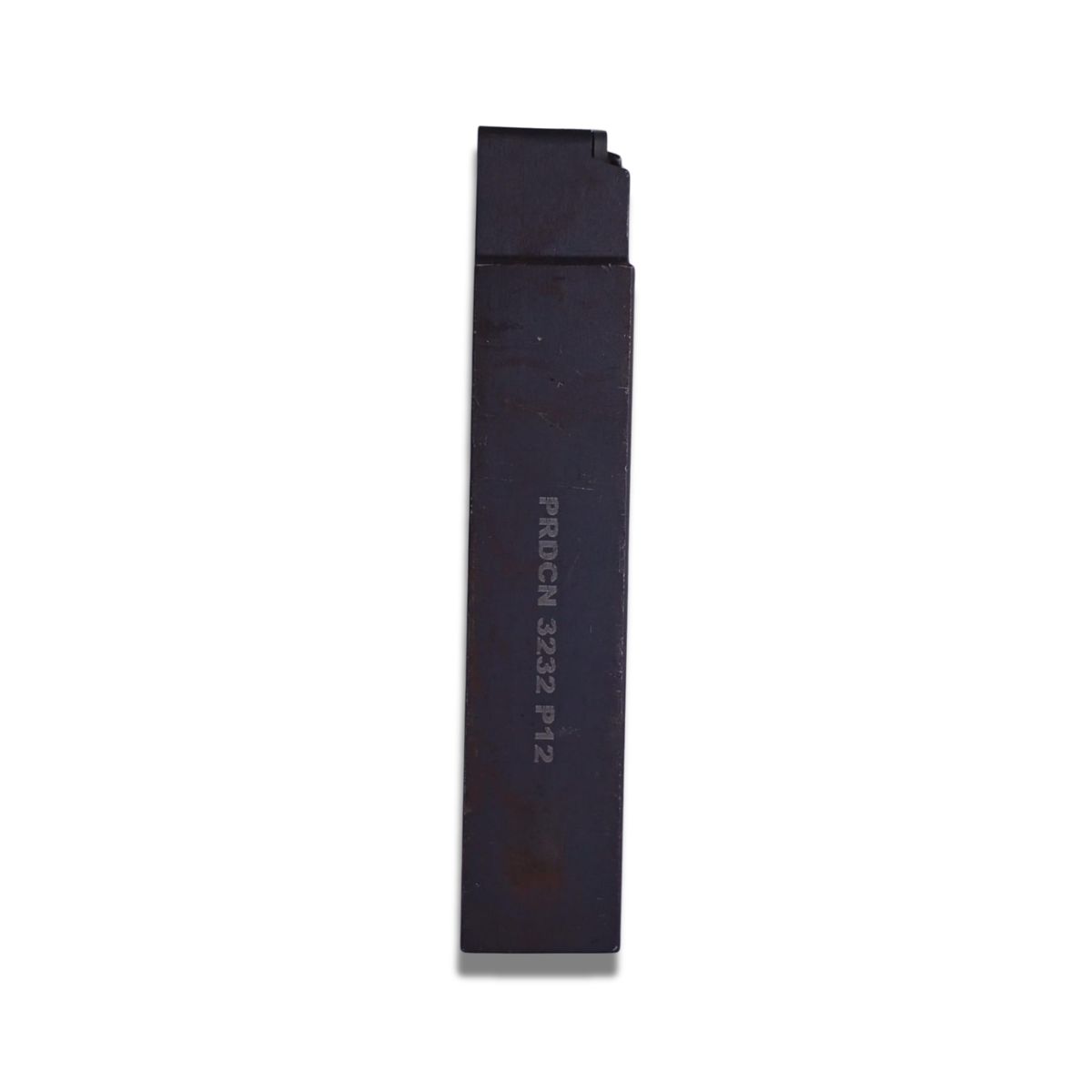

PRDCN 3232 P12

PRDCN 3232 P12

Brand: TOOLFARM

THE PRDCN 3232 P12 (MORE COMMONLY DESIGNED AS THE ISO PRDCN 3232P12) IS A HIGH-PERFORMANCE, SQUARE-SHANK EXTERNAL TURNING TOOL HOLDER SYSTEM DESIGNED ACCOMPANYING THE CLASSIC P-TYPE LEVER CLAMP GEOMETRY.  IT IS SPECIFICALLY ENGINEERED TO RIGIDLY CLAMP ROUND (CIRCULAR) INDEXABLE INSERTS, MAKING IT IDEAL FOR HEAVY-DUTY PROFILING, LARGE RADIUS CONTOURING, AND ROBUST ROUGHING CYCLES.

₹4000.00

₹4000.00

Share on:
product details

CLAMPING SYSTEM (P): DESIGNATES A HIGHLY STABLE LEVER-LOCK CLAMPING SYSTEM. IT PULLS THE INSERT SECURELY BACK INTO THE POCKET SEAT THROUGH THE CENTER HOLE, PROVIDING MAXIMUM FLANK BACKUP RIGIDITY AND UNOBSTRUCTED CHIP REJECTION.
INSERT SHAPE (R): DESIGNED EXCLUSIVELY FOR ROUND (BUTTON) INSERTS (SUCH AS THE RCMT OR RCMM GEOMETRIES) WHICH STAND UNRIVALED FOR CUTTING-EDGE STRENGTH.
HOLDER STYLE (D): SPECIFIES A NEUTRAL (STRAIGHT) SHANK WITH A 0° LEAD/APPROACH ANGLE, ENABLING BI-DIRECTIONAL PATHING AND VERSATILE MULTI-AXIS MACHINE STEERING.
CLEARANCE ANGLE (C): ACCOMMODATES INSERTS FEATURING A 7° POSITIVE CLEARANCE ANGLE, LOWERING DEFLECTION RESISTANCE IN TOUGH CUTS.
CUTTING DIRECTION (N): NEUTRAL HAND DIRECTION. THE HOLDER CAN LEAD BOTH TO THE LEFT AND TO THE RIGHT ALONG THE CNC LATHE BED WAY WITHOUT BINDING.
SHANK SIZE (3232): REPRESENTS A HEAVY-DUTY INDUSTRIAL SQUARE SHANK MEASURING 32 MM WIDTH (B) BY 32 MM HEIGHT (H).
HOLDER LENGTH (P): INDICATES A METRIC STANDARD OVERALL LENGTH CODE REQUISITIONING 170 MM OVERALL LENGTH (OAL).
INSERT SEAT SIZE (12): CORRESPONDS TO AN INSCRIBED CIRCLE (IC) OF 12.0 MM (COMPATIBLE SPECIFICALLY WITH RC__ 1204__ SERIES INSERTS).
COMPATIBLE INSERT GEOMETRY
THIS TOOL HOLDER HOUSES ROUND INSERTS WITH A 12 MM DIAMETER, SUCH AS THE RCMX 120400, RCMT 120400, OR RCMM 120400 STYLES.


SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.

You May Also Like

DCKNL 2525 M19
DCKNL 2525 M19
1900.00
2280.00

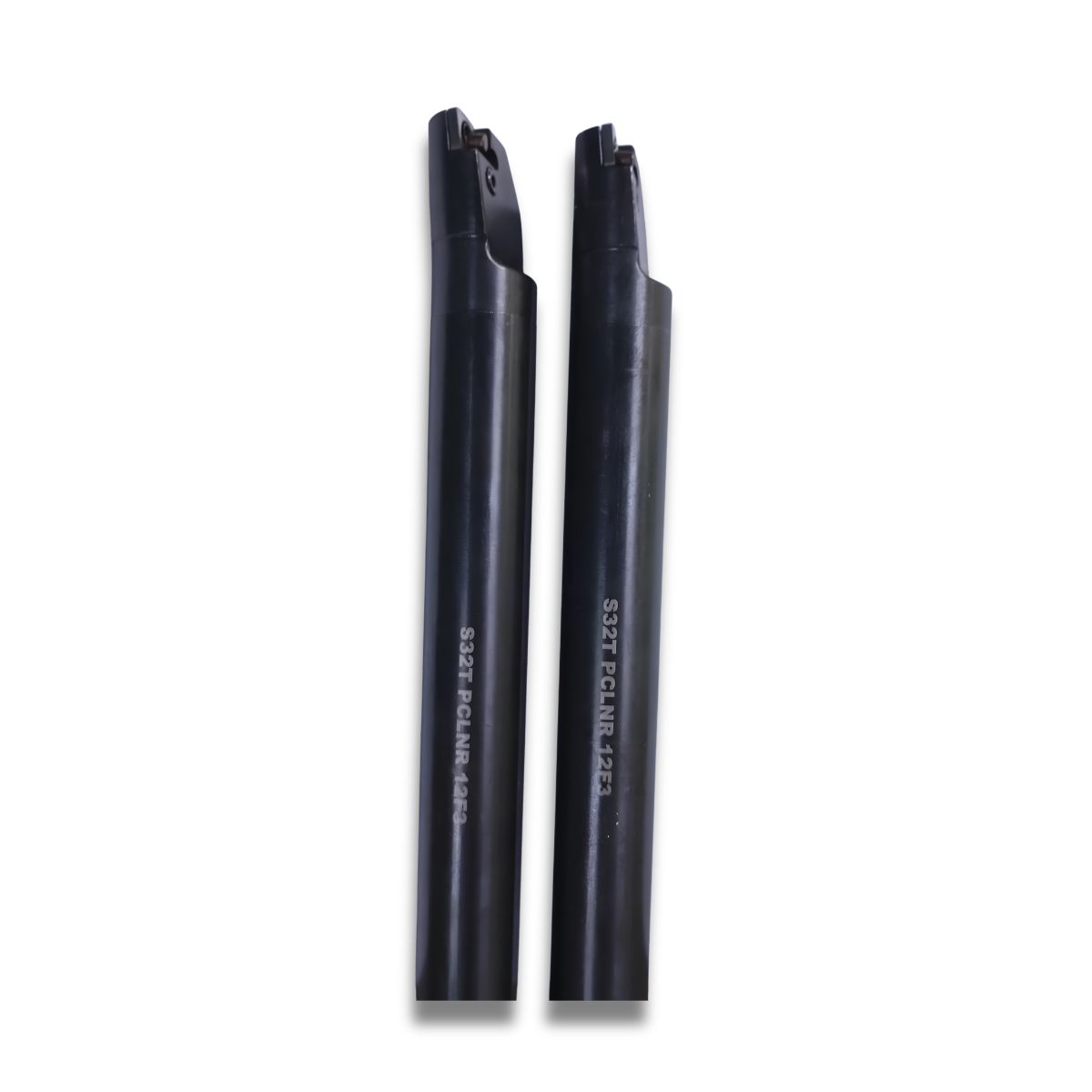

S32T PCLNR 12F3
S32T PCLNR 12F3
3200.00
3840.00

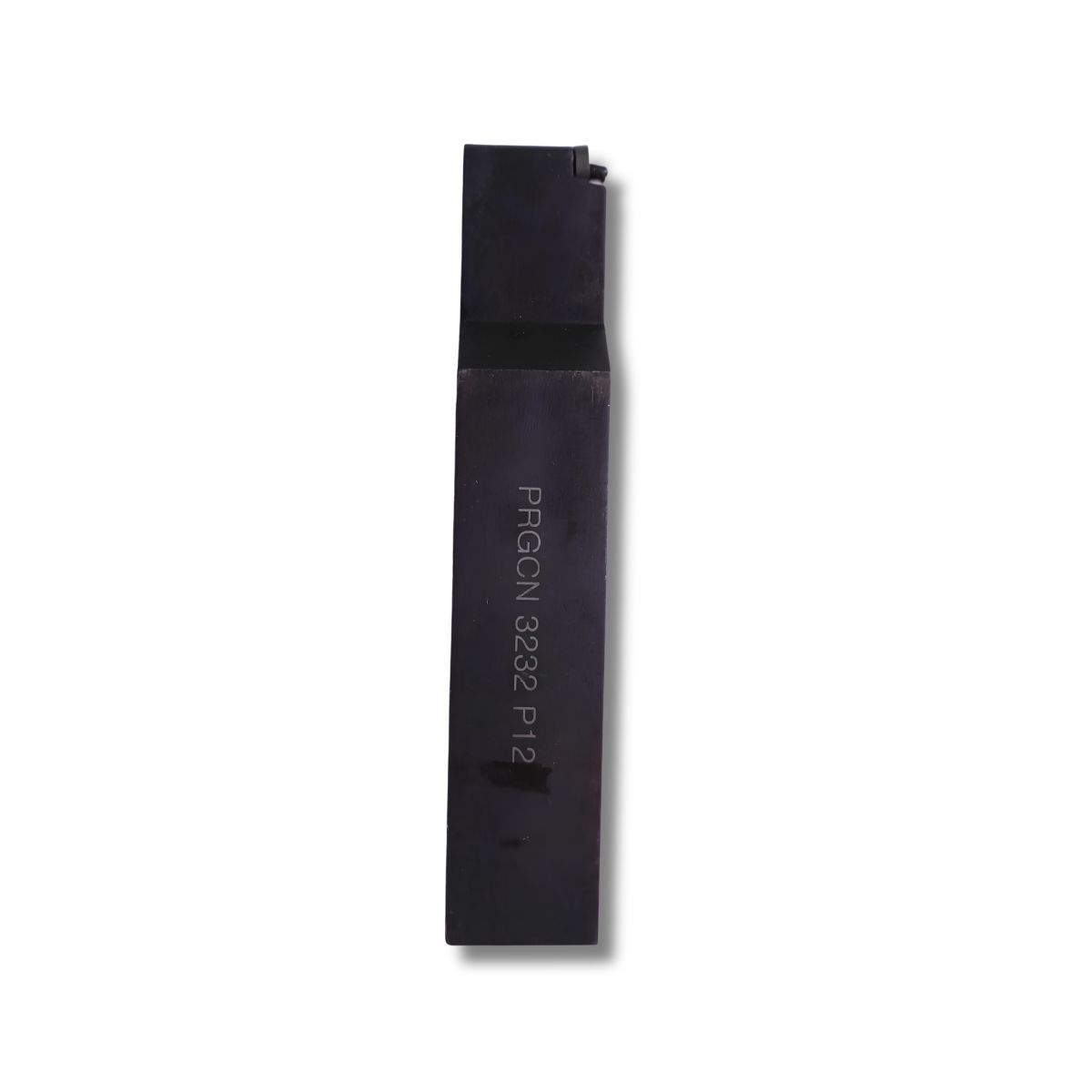

PRGCN 3232 P12
