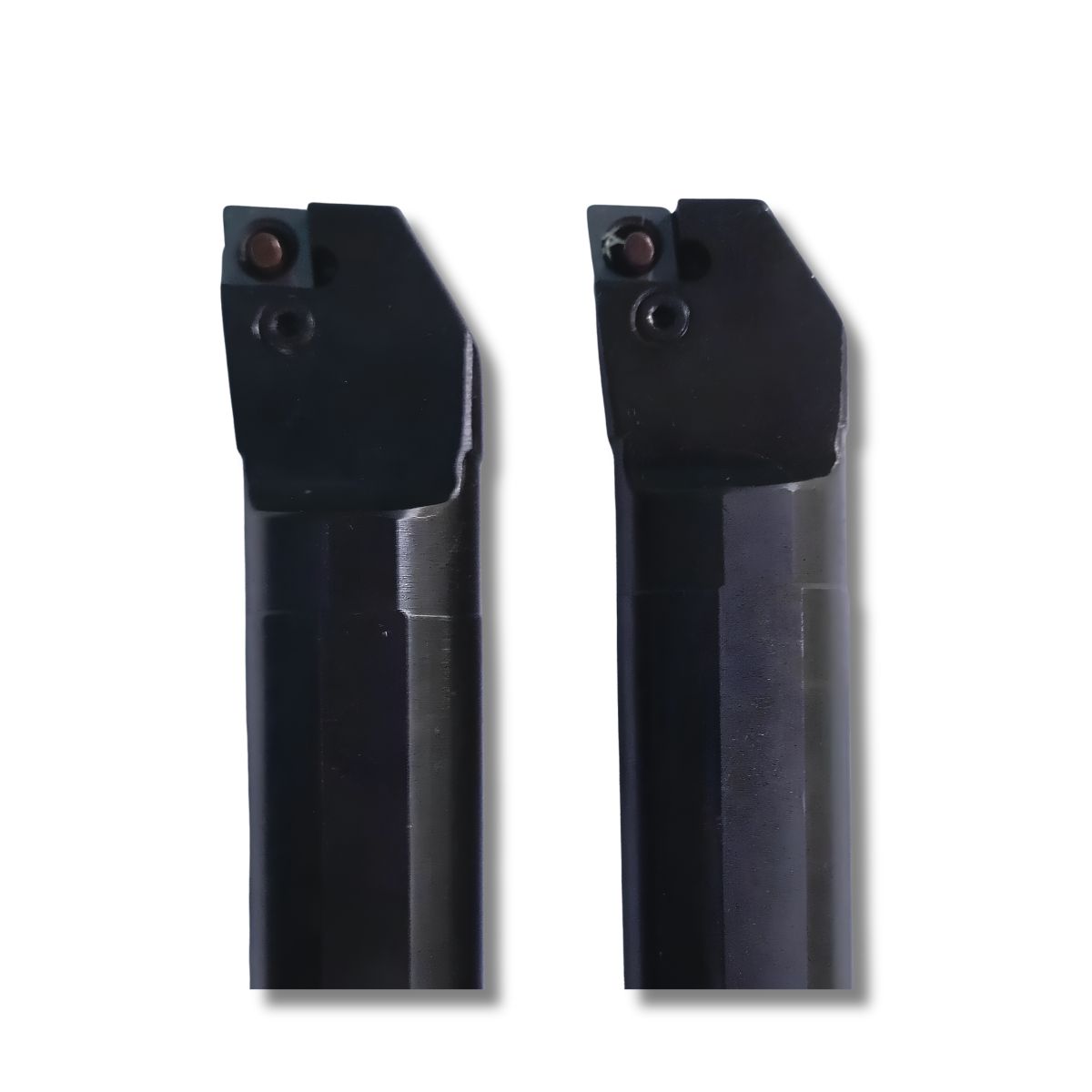

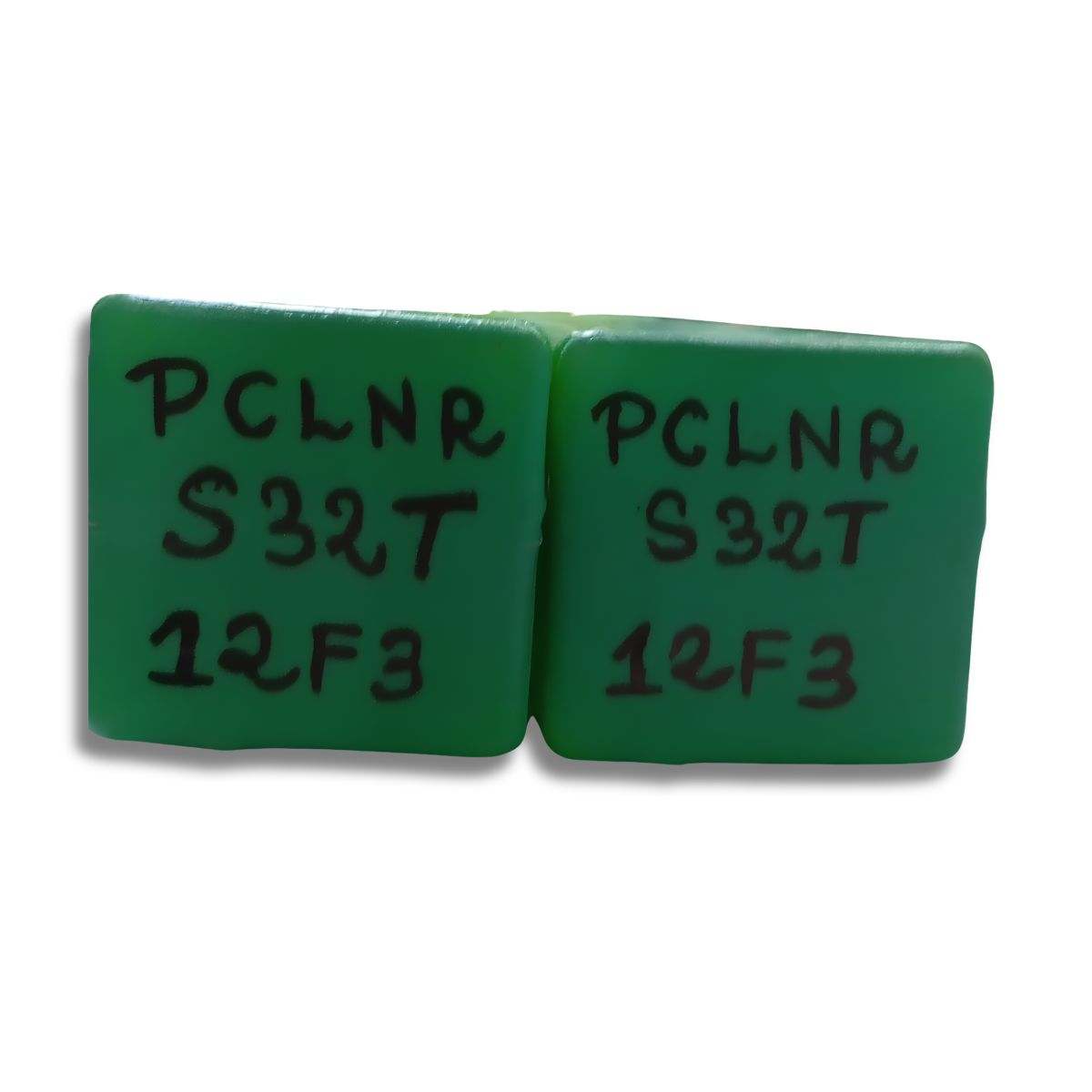

S32T PCLNR 12F3

S32T PCLNR 12F3

Brand: TOOLFARM

THE S32T PCLNR 12F3 (ALSO COMMONLY ENCOUNTERED AS S32T-PCLNR-12 OR WITH THE F3 REGIONAL SEAT SUFFIX) IS A HIGH-STABILITY, INTERNAL BORING BAR / INTERNAL TURNING TOOL HOLDER UTILISING A ROBUST P-TYPE LEVER-CLAMP MECHANISM.  IT IS SPECIFICALLY ENGINEERED FOR HEAVY-DUTY INTERNAL BORING, FACING, AND MEDIUM-TO-ROUGH PROFILING OF PRECISION CYLINDRICAL CAVITIES .

₹3200.00

₹3200.00

Share on:
product details

  • SHANK TYPE (S): INDICATES A SOLID, HIGH-TENSILE STEEL SHANK INTERNAL BORING BAR GEOMETRY.

  • SHANK DIAMETER (32): REPRESENTS A HEAVY METRIC SHANK CONNECTION DIAMETER OF 32 MM.

  • HOLDER LENGTH (T): SPECIFIES A STANDARD INDUSTRIAL METRIC OVERALL LENGTH (OAL) OF 300 MM.

  • CLAMPING SYSTEM (P): DESIGNATES A HIGHLY RELIABLE LEVER-LOCK CLAMPING SYSTEM. IT RIGIDLY ANCHORS THE INSERT VIA THE CENTRAL HOLE, PROVIDING EXCELLENT TOPPING CLEARANCE FOR MAXIMUM INTERNAL CHIP EVACUATION.

  • INSERT SHAPE (C): DESIGNED EXCLUSIVELY FOR 80° RHOMBIC (DIAMOND) NEGATIVE INSERTS.

  • HOLDER STYLE (L): SPECIFIES A BAR FUNCTION MODIFIED TO EXECUTE A 95° APPROACH ANGLE (A -5° LEAD ANGLE). THIS PERMITS BORING CLOSE UP TO VERTICAL CORNER SHOULDERS.

  • CLEARANCE ANGLE (N): DESIGNED FOR NEGATIVE 0° CLEARANCE INSERTS, PROVIDING MAXIMUM CLAMPING POCKET RIGIDITY AND ALLOWING DOUBLE-SIDED INSERTS TO BE UTILISED.

  • CUTTING DIRECTION (R): RIGHT-HANDED DIRECTIONAL CUTTING ORIENTATION.

  • INSERT SEAT SIZE (12): ENGINEERED COMPATIBLY WITH AN INSCRIBED CIRCLE (IC) SIZING OF 12.0 MM (COMPATIBLE SPECIFICALLY WITH THE CN__ 1204__ SERIES INSERTS).

  • MANUFACTURER SUFFIX (F3): DENOTES SEAT DIMENSION FIXTURING SPECIFIC TO MAJOR TOOLMAKERS TO IDENTIFY REPLACEMENT PARTS MODES AND MATCH SHIMS.
