  • PRGCN 3232 P12
  • PRGCN 3232 P12
  • PRGCN 3232 P12
PRGCN 3232 P12

PRGCN 3232 P12

Brand: TOOLFARM

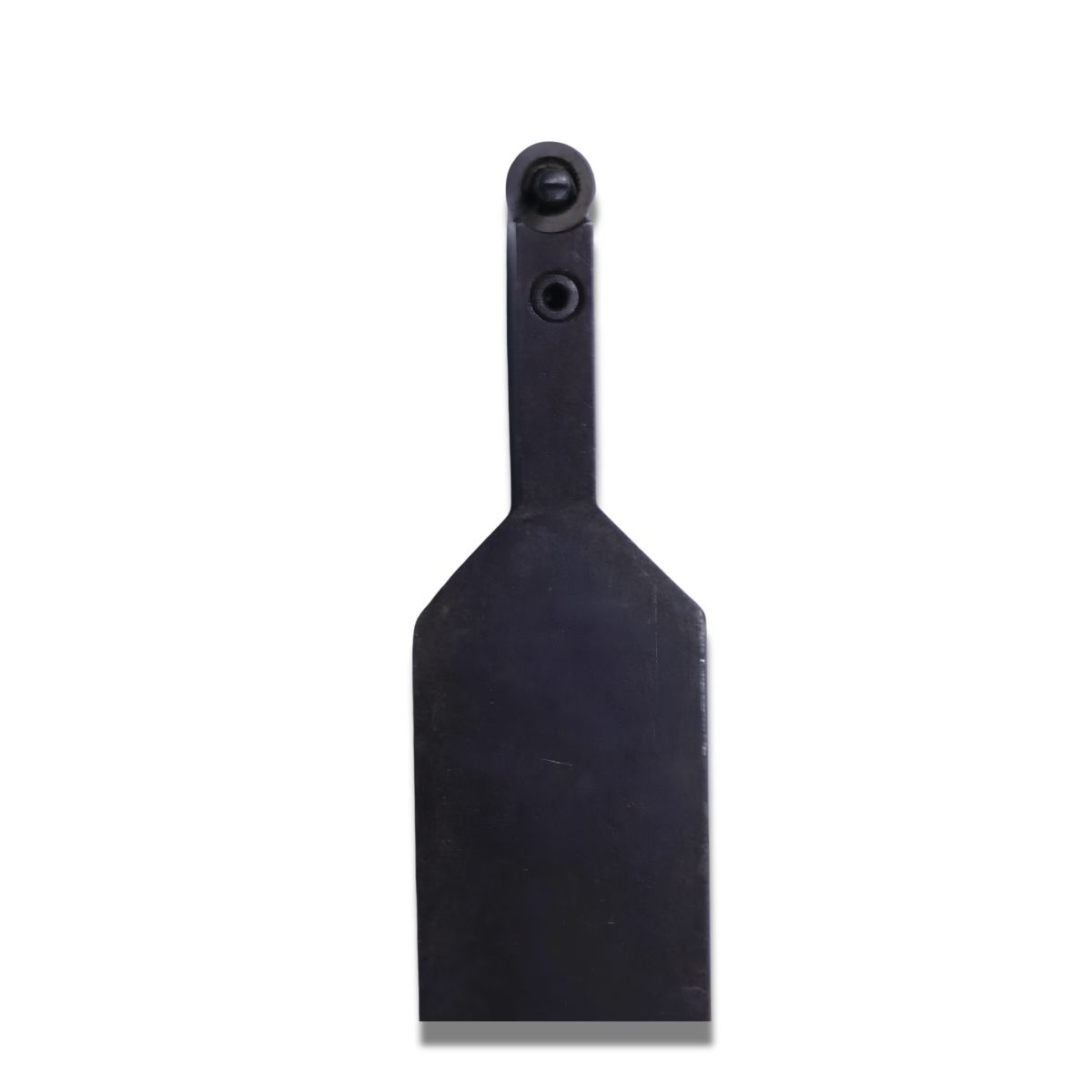

THE PRGCN 3232 P12 (MORE COMMONLY DESIGNED AS THE ISO PRGCN 3232P12) IS A HIGH-PERFORMANCE, SQUARE-SHANK EXTERNAL TURNING TOOL HOLDER SYSTEM UTILISING A SECURE LEVER-CLAMP MECHANISM ,WHILE IT SHARS A SIMILAR COUPLING TO THE "PRDCN" SERIES, THE "G" DESIGNATION MODIFIES THE APPROACH ANGLE, POSITIONING THE INSERT AT A SPECIFIC ORIENTATION PRIMARILY USED FOR STRAIGHT FACING, EXTERNAL TURNING, AND ROBUST CONTOUR ROUGHING WITH BUTTON INSERTS.

₹4000.00

₹4000.00

Share on:
product details

CLAMPING SYSTEM (P): DESIGNATES A HIGHLY STABLE LEVER-LOCK CLAMPING SYSTEM. IT SECURELY PULLS THE INSERT BACK INTO THE POCKET SEAT THROUGH ITS CENTER HOLE, PROVIDING AN UNOBSTRUCTED FLAT TOP FOR MAXIMUM CHIP REJECTION.
INSERT SHAPE (R): DESIGNED EXCLUSIVELY TO HOUSE ROUND (BUTTON) INSERTS, UNRIVALED IN CUTTING-EDGE STRENGTH FOR HEAVY ROUGHING.
HOLDER STYLE (G): SPECIFIES AN AXIAL STYLE FEATURING A 90° APPROACH ANGLE WHEN TRANSITIONING TO THE FACE PROFILE, EXCELLENT FOR PLUNGE ROUGHING AND STEP TURNING.
CLEARANCE ANGLE (C): ACCOMMODATES INSERTS WITH A 7° POSITIVE CLEARANCE ANGLE, REDUCING CUTTING FORCES AND WORK-HARDENING TENDENCIES.
CUTTING DIRECTION (N): NEUTRAL HAND DIRECTION. THE HOLDER LACKS A LEFT OR RIGHT OFF-SET, ALLOWING IT TO CUT BI-DIRECTIONALLY ALONG THE CNC MACHINE BLOCKS.
SHANK SIZE (3232): REPRESENTS A HEAVY-DUTY INDUSTRIAL SQUARE SHANK MEASURING 32 MM WIDTH (B) BY 32 MM HEIGHT (H).
HOLDER LENGTH (P): INDICATES A METRIC STANDARD CODE DESIGNATING AN 170 MM OVERALL LENGTH (OAL).
INSERT SEAT SIZE (12): CORRESPONDS TO AN INSCRIBED CIRCLE (IC) OF 12.0 MM (COMPATIBLE SPECIFICALLY WITH RC__ 1204__ SERIES INSERTS).
