  • CCGT 09T304 PCD
  • CCGT 09T304 PCD

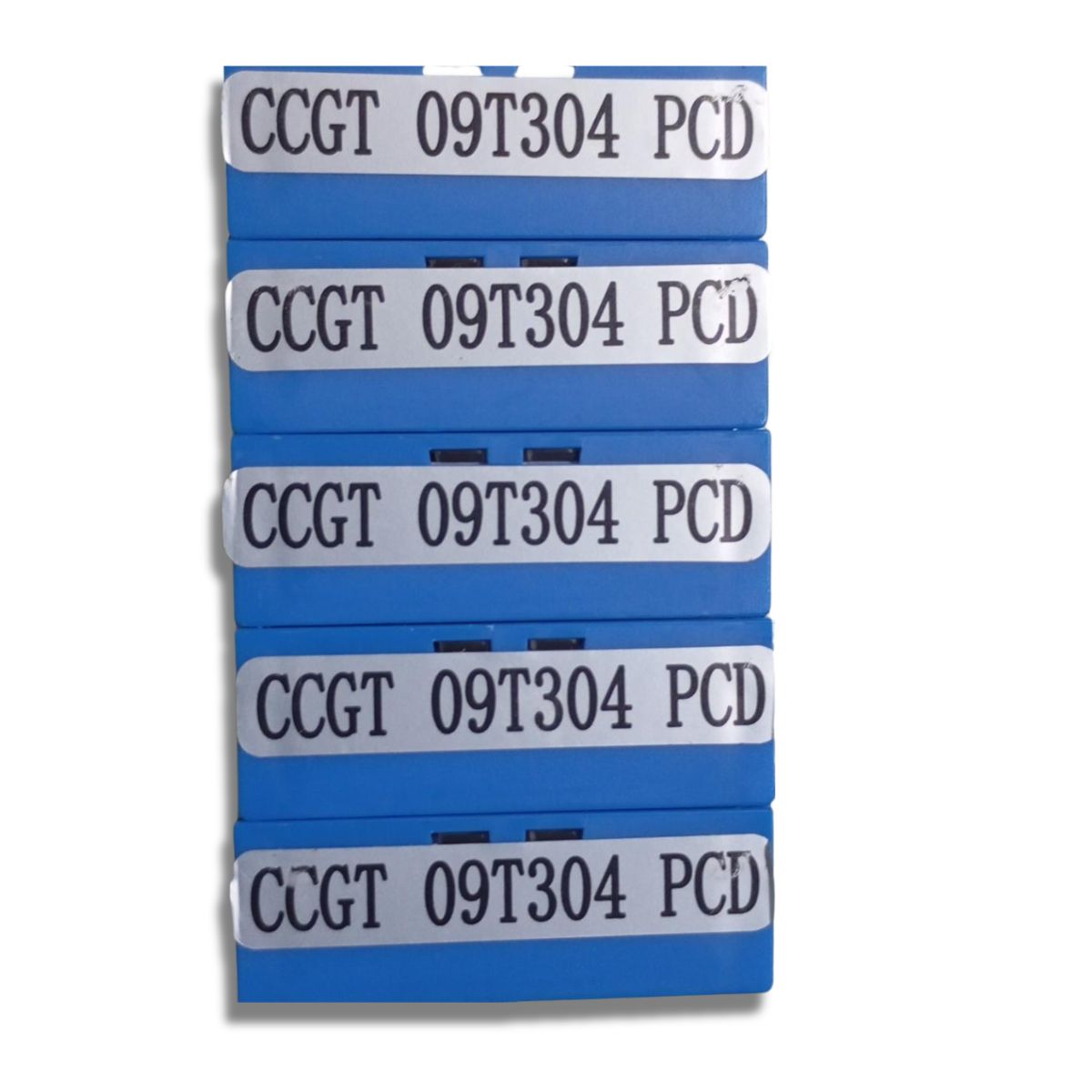

CCGT 09T304 PCD

CCGT 09T304 PCD

Brand: TOOLFARM

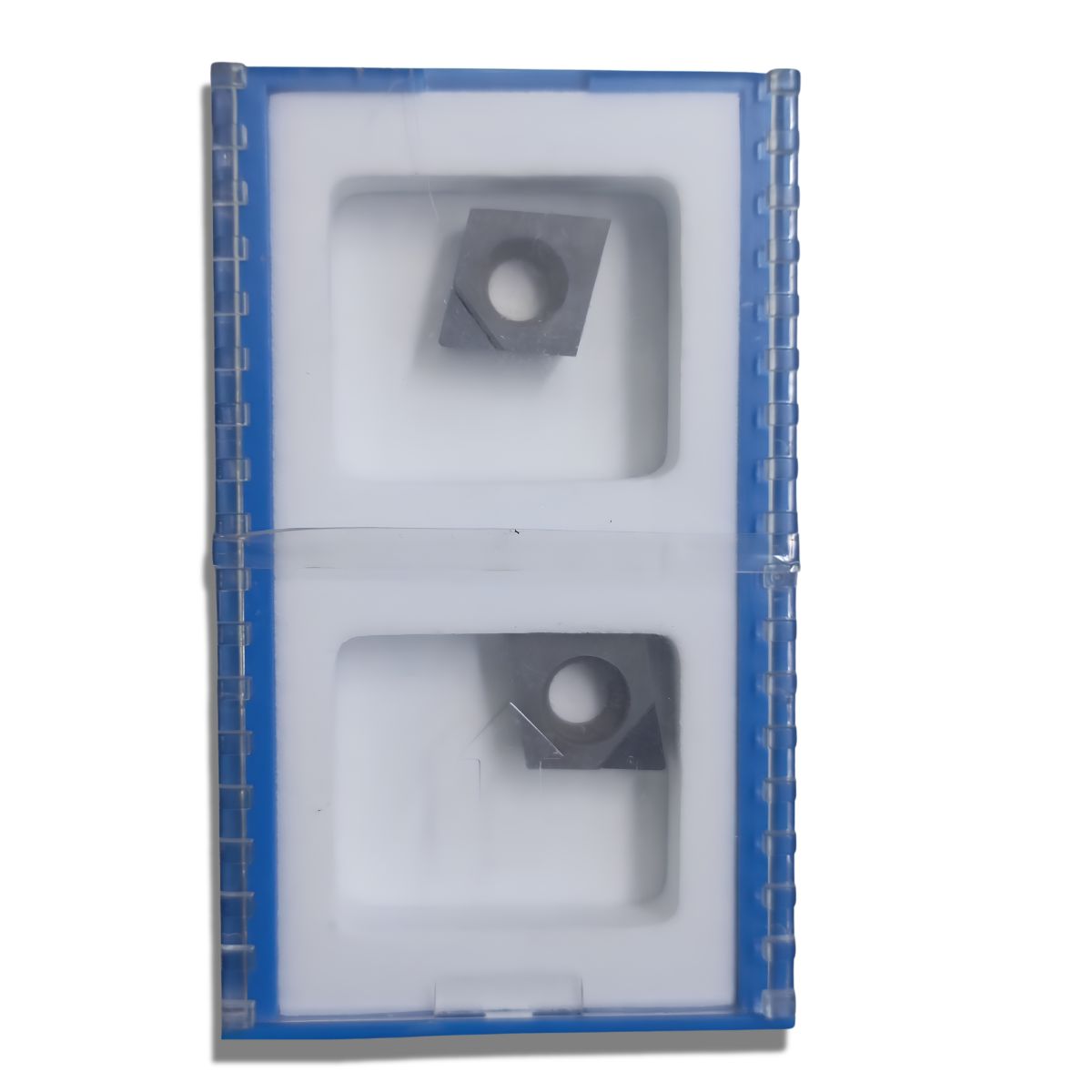

The CCGT 09T304 PCD is an 80-degree rhombic, high-precision indexable turning insert tipped with Polycrystalline Diamond (PCD). It is engineered as a super-abrasive finishing tool exclusively for ISO Class "N" materials—meaning it delivers mirror-like surface finishes on non-ferrous metals but will chemically break down if used on raw iron or steel.

₹650.00

₹650.00

Share on:
product details

  • C: 80° Rhombic (Diamond) head configuration.

  • C: 7° Positive side clearance angle for reduced cutting force.

  • G: High-precision ground periphery tolerance class for sub-micron sizing.

  • T: Single-sided design featuring a countersunk screw-clamping lock hole.

  • 09: Nominal cutting edge length of 9.7 mm.

  • T3: Standard body thickness of exactly 3.97 mm.

  • 04: Corner nose radius of 0.4 mm (the standard sweet spot for strict dimensional control and high-accuracy surface finishing).


Core Target Applications

  • High-Silicon Aluminium: Machining abrasive engine pistons, blocks, and housings where standard carbide blunts immediately.

  • Non-Ferrous Alloys: Smooth, high-speed turning of copper, brass, and bronze components without structural warping.

  • Abrasive Synthetics: Fast sizing of Carbon Fiber Reinforced Polymers (CFRP), fiberglass, graphite, and engineering plastics.


Popular Sourcing Options

  • Garant CCGT 09T304 FN PCD: A premium, fine-grained neutral polycrystalline diamond insert distributed by the Hoffmann Group for high-accuracy industrial component skimming.

  • DOILF PCD CCGT09T304 Turning Insert: A single-tipped industrial diamond replacement piece available via IndiaMART customized for aerospace and automotive line configurations.

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
