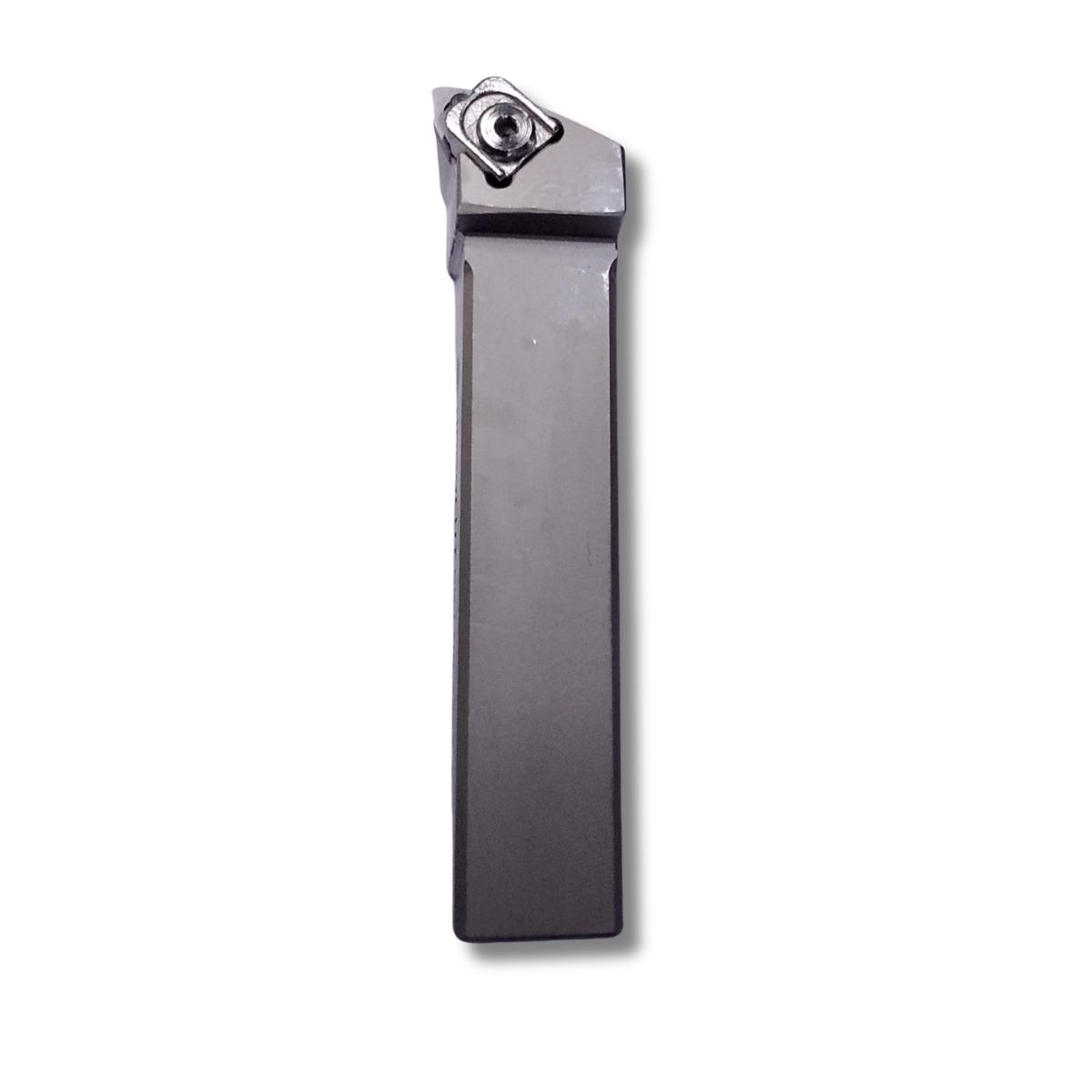

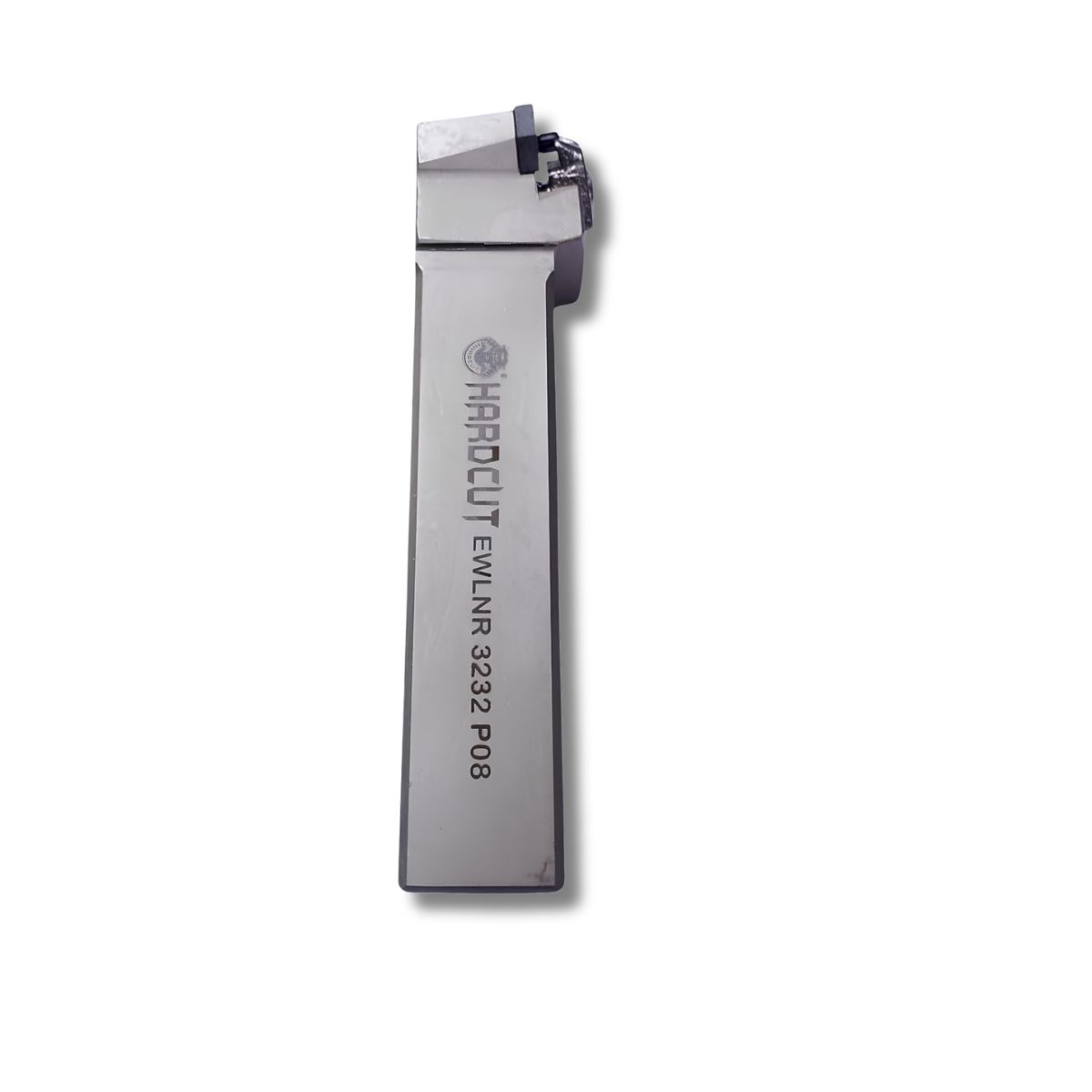

1. TECHNICAL CODE BREAKDOWN
E: INDICATES THE E-TYPE TOP-CLAMP WITH PIN MECHANISM SERIES (PATENTED DESIGN OFTEN MANUFACTURED BY ECHAINTOOL AND OTHER COMPATIBLE BRANDS TO PROVIDE EXTREME INSERT SEGREGATION STABILITY AGAINST HIGH FORCES).
W: CONFIRMS COMPATIBILITY WITH A WNMG OR WNMA (80° TRIGON) GEOMETRY TURNING INSERT.
L: SPECIFIES A 95-DEGREE APPROACH ANGLE (LEAD ANGLE), PERMITTING BOTH ROUGH FACING AND PROFILING CAPABILITIES CLOSER TO THE WORKPIECE CORE.
N: DESIGNATES A NEGATIVE RAKE ANGLE (0° INSERT CLEARANCE) WHICH EMPOWERS DOUBLE-SIDED INSERTS WITH A TOTAL OF 6 ROBUST CUTTING EDGES.
R: CONFIRMS A RIGHT-HAND CUTTING DIRECTION FOR CNC LATHE SYSTEMS.
3232: SPECIFIES THE SQUARE TOOL SHANK PHYSICAL METRIC SIZE EQUAL TO 32 MM HEIGHT BY 32 MM WIDTH.
P: INDICATES A STANDARD OVERALL TOOL SHANK LENGTH RATING EQUAL TO 170 MM.
08: IDENTIFIES THE APPLICABLE INSCRIBED CIRCLE (IC) INSERT DIAMETER SIZE OF 12.70 MM (EQUIVALENT TO DESIGNATED WNMG 0804 INSERTS).
2. KEY ATTRIBUTES & DESIGN
E-CLAMP RIGIDITY: THE INVENTIVE LEVER/PIN AND TOP COMBINATION CLAMP SYSTEM DRAWS THE TRIGON INSERT SHARPLY DOWN AND BACKWARD INTO THE TOUGH ALLOY SHANK HARNESS POOL. THIS COMPLETELY PREVENTS ANY SHIFTING BEHAVIOUR DURING INTENSE FACING CUTS OR SEVERE CUT-INTERRUPTIONS.
SIX CUTTING EDGES UTILISATION: COMPATIBLE 80° TRIGON WNMG CHIPS OFFER THREE SEPARATE LOWER CUTTING EDGES AND THREE UPPER CUTTING EDGES. THIS REDUCES CONSUMPTION COSTS IN COMPARISON TO TRADITIONAL DIAMOND-SHAPED SHANKS.
HIGH DEFLECTION HARDNESS: CONSTRUCTED FROM PRE-HARDENED AND TEMPERED CORROSION-RESISTANT MACHINE-GRADE CHROMIUM-MOLY TOOL STEEL TO DRAMATICALLY REDUCE STRUCTURAL REBOUND VIBRATION AND CHATTER MARKS.
3. INDUSTRIAL APPLICATIONS
TARGET PROCESSES: CONVENTIONAL HEAVY-DUTY PROFILE TURNING, AXIAL ROUGH FACING, HIGH-VOLUME METAL REMOVAL, AND STEP SHAPING.
COMMON WORKPIECES: GIANT HYDRAULIC CYLINDER RODS, SEVERE CONVEYOR ROLLER SHAFTS, LARGE TRANSMISSION PIPES, RAILWAY WHEELS, AND HEAVY POWER TRANSMISSION FLANGES.
